SWH
4
Control SWH
C
X5
C2
X4
C1
X3
ROOM
PE N L
SUPPLY 230V
ACTUATOR
230V
X5
C2
X4
C1
X3
ROOM
PE N L
SUPPLY 230V
ACTUATOR
230V
SIReUB1,
control unit Basic
Integrated
control card
Base in SWH
Modular cable
SIReUA1,
control unit
Competent and
Advanced
SIReC1X,
control card HUB
Competent
Modular cables
Integrated control
card Base in SWH

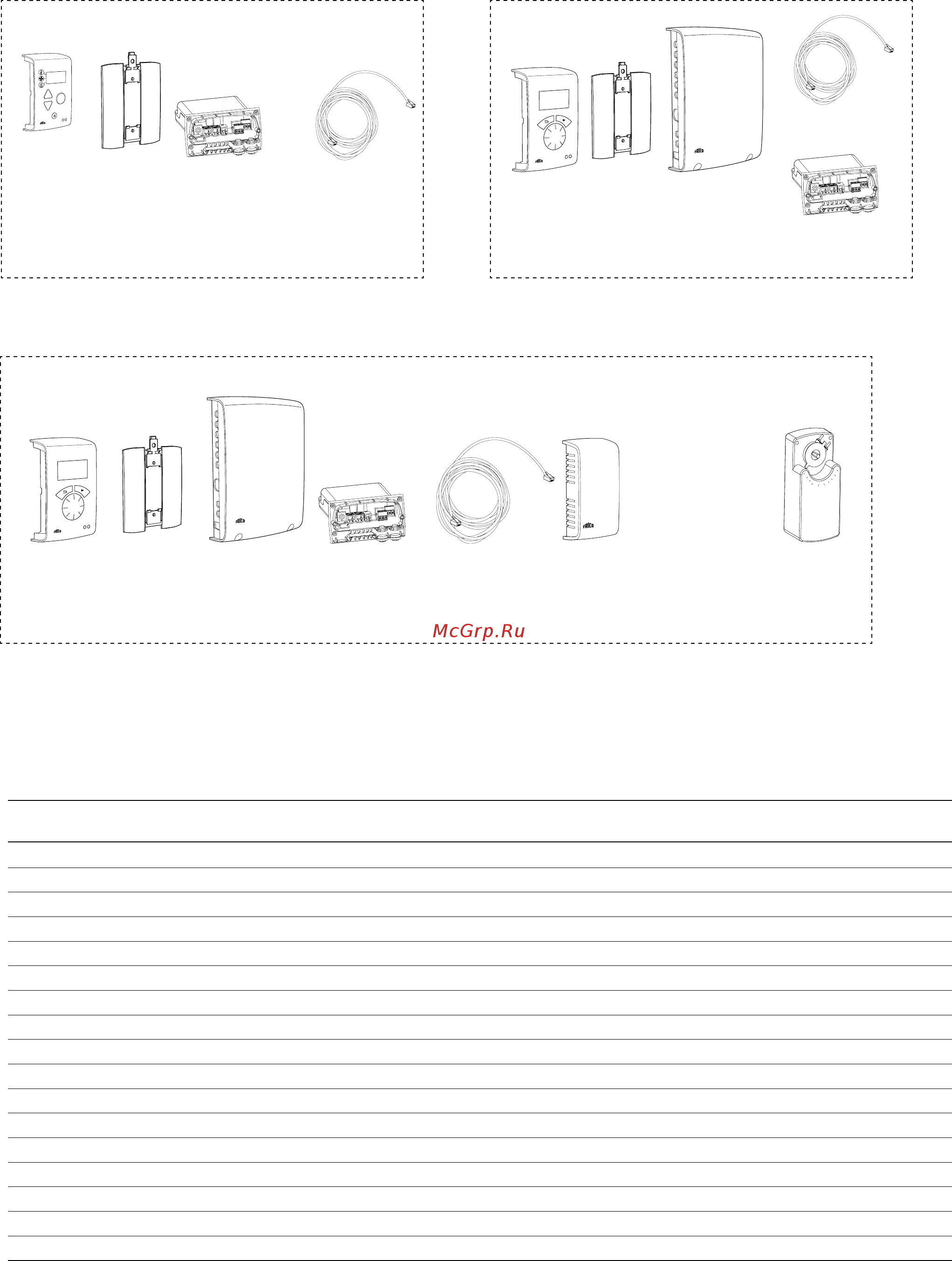

SIRe Basic SIRe Competent
X5
C2
X4
C1
X3
ROOM
PE N L
SUPPLY 230V
ACTUATOR
230V
90
0
30
60
30
60
0
90
SIReUA1,
control unit
Competent and
Advanced
Modular cablesIntegrated
control card
Base in SWH
SIReOTX,
outdoor temperature
sensor
SMM24,
damper
motor
For Advanced with
mixing cabinet -
SIReFAWM also
includes damper
motor SMM24 and
clamp-on sensor
SIReWTA.
SIReA1X,
control card
HUB Advanced
SIRe Advanced
Type RSK-nr EL-nr Description L (m)
SIReB
673 09 57 49 306 01 Control system SIRe Basic
SIReFC
673 09 59 49 306 03 Control system SIRe Competent
SIReFA
673 09 61 49 306 05 Control system SIRe Advanced
SIReFAWM
673 09 63 49 306 08 Control system SIRe Advanced with mixing cabinett
SIReRTX
673 09 22 External room temperature sensor
SIReWTA
Clamp-on sensor
SIReUR
673 09 21 Kit for recessed installation
SIReCJ4
Used to join two RJ11(4/4)
SIReCJ6
Used to join two RJ12 (6/6)
SIReCC603
673 09 23 Modular cable RJ12 3 m
SIReCC605
673 09 24 Modular cable RJ12 5 m
SIReCC610
673 09 25 Modular cable RJ12 10 m
SIReCC615
673 09 26 Modular cable RJ12 15 m
SIReCC403
673 09 27 Modular cable RJ11 3 m
SIReCC405
673 09 28 Modular cable RJ11 5 m
SIReCC410
673 09 29 Modular cable RJ11 10 m
SIReCC415
673 09 30 Modular cable RJ11 15 m
