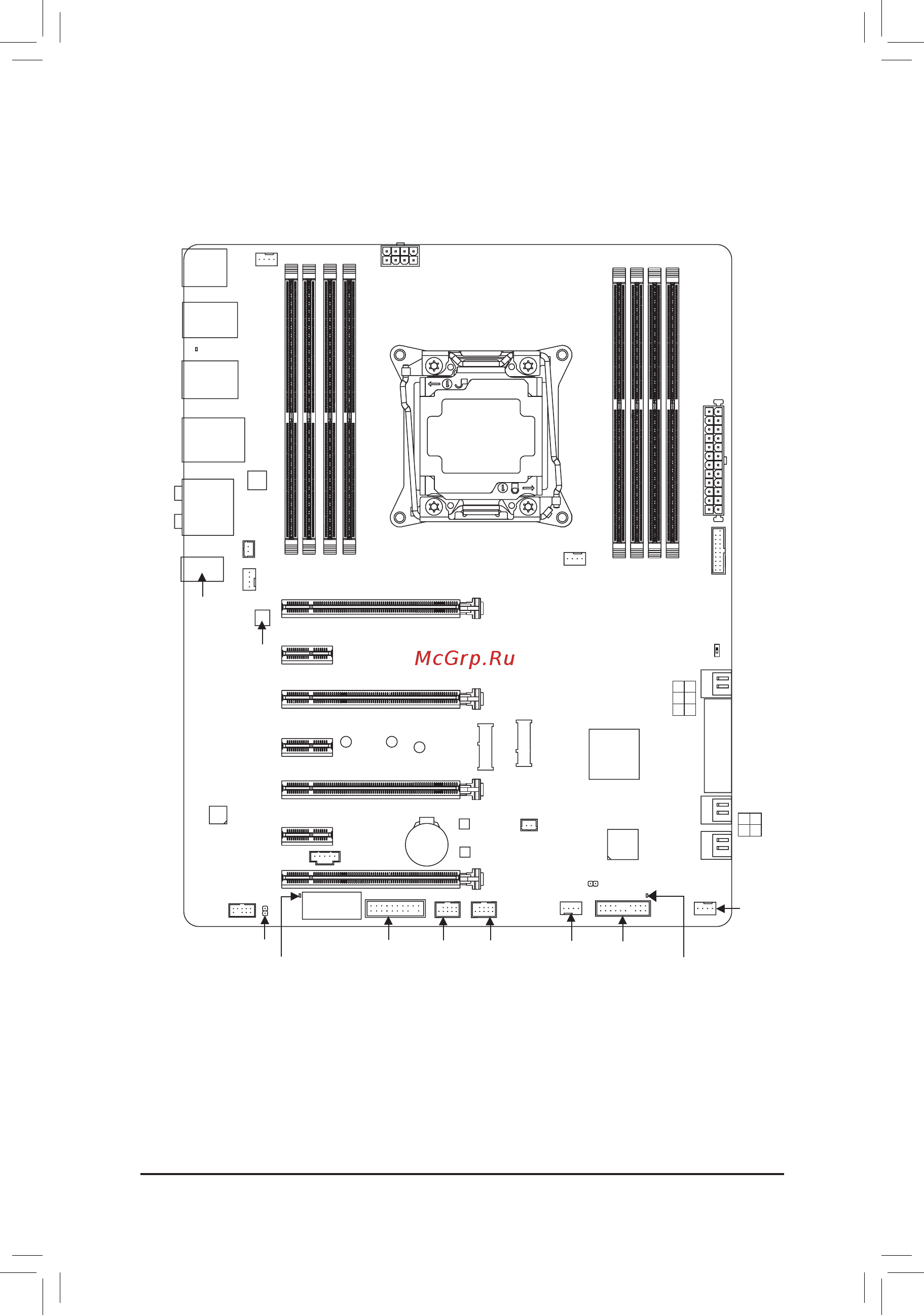

GA-X99-UD4P Motherboard Layout

ATX_12V_2X4

ATX

AUDIO

BAT

Intel

X99

PCIE_1

LGA2011-3

GA-X99-UD4P

R_USB30

iTE

Super I/O

KB_MS

F_PANEL

Intel

GbE LAN

ANTENNA_BRACKET

PCIE_4

PCIE_5

CPU_OPT

SYS_FAN3

R_USB

PCIE_6

PCIE_2

F_USB30

B_BIOS

M_BIOS

F_USB2

Renesas

uPD720210

PCIE_7

ATX4P

3 2 1

5 4 0

SATA 3

CLR_CMOS

TPM

SYS_FAN1

F_AUDIO

USB30_LAN

DDR4_2_2A

DDR4_1_1A

DDR4_3_1B

DDR4_4_2B

M2_10G

M2_WIFI

THB_C

SATA_EXPRESS

DDR4_7_1D

DDR4_8_2D

DDR4_6_2C

DDR4_5_1C

FBIOS_LED

sSATA 3

3 1

2 0

LED_CON1

PCIE_3

CODEC

LED_CON2

SPDIF_O

F_USB1

CPU_FAN

SYS_FAN2

System Temperature

Sensor 1

System Temperature

Sensor 2

CPU MODE
