ASUS ROG & ROG STRIX Z200 Series Feature Manual

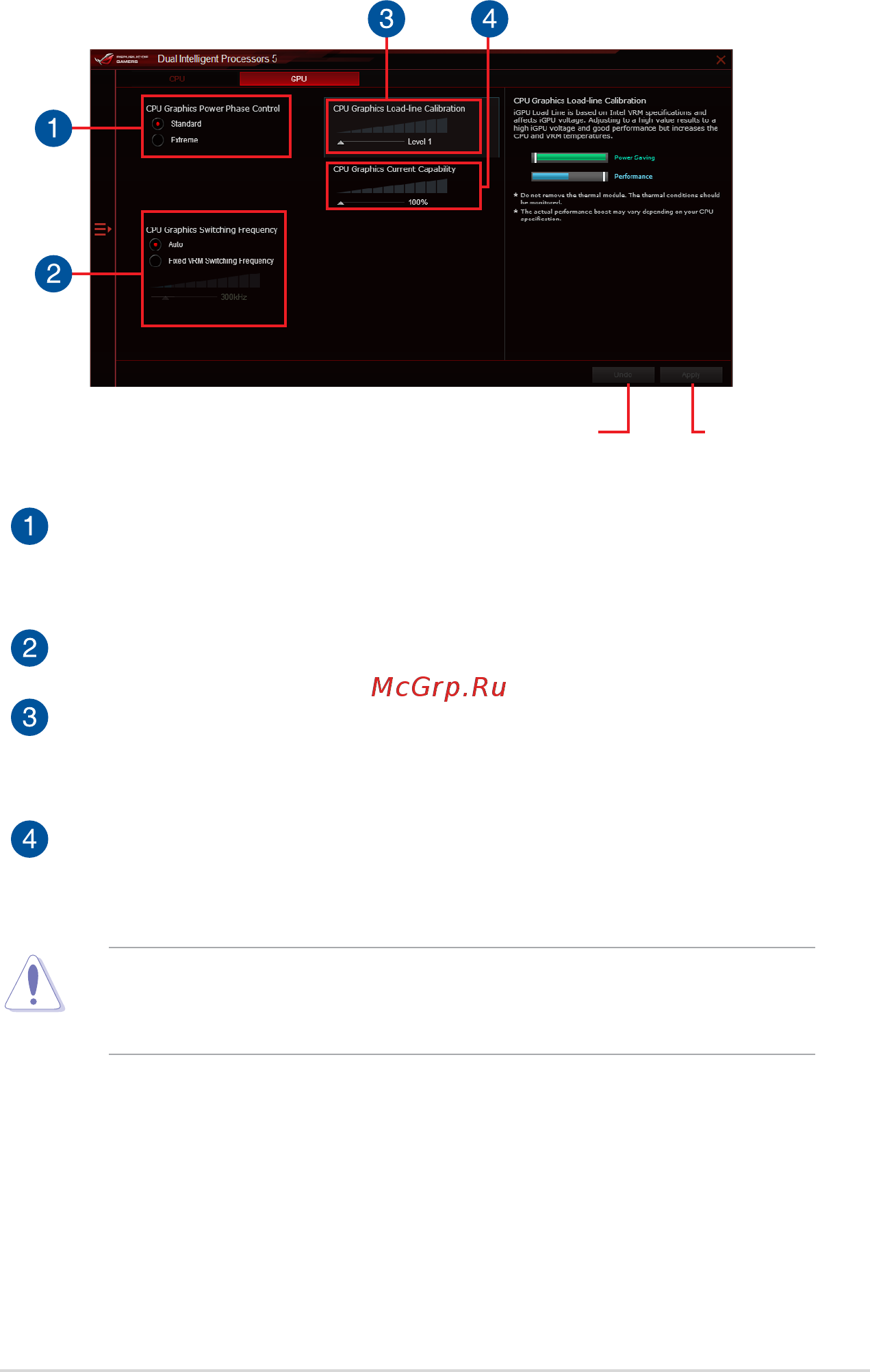

Adjusting the GPU Power
• The actual performance boost may vary depending on your CPU specication.
• Ensure that the cooling modules are properly installed in your motherboard to monitor
the thermal conditions.
Click to apply
the changes
Click to undo
the changes
CPU Graphics Power Phase Control
Increase the phase number under a heavy system load to get more transient and
better thermal performance. Reduce the phase number under a light system load
to increase the VRM efciency.
CPU Graphics VRM Switching Frequency
Enables spread spectrum to enhance system stability.
CPU Graphics Load-line Calibration
It allows you to adjust the voltage range to control the CPU Graphics Load-
line. Adjust to a high value for system performance or to a low value for power
efciency.
CPU Graphics Current Capability
CPU Grpahics Current Capability provides a wider total power range for
overclocking. A higher value brings a wider total power range and extends the
overclocking frequency range simultaneously.
