Asus RT-AC1200HP [31/129] Monitoring traffic

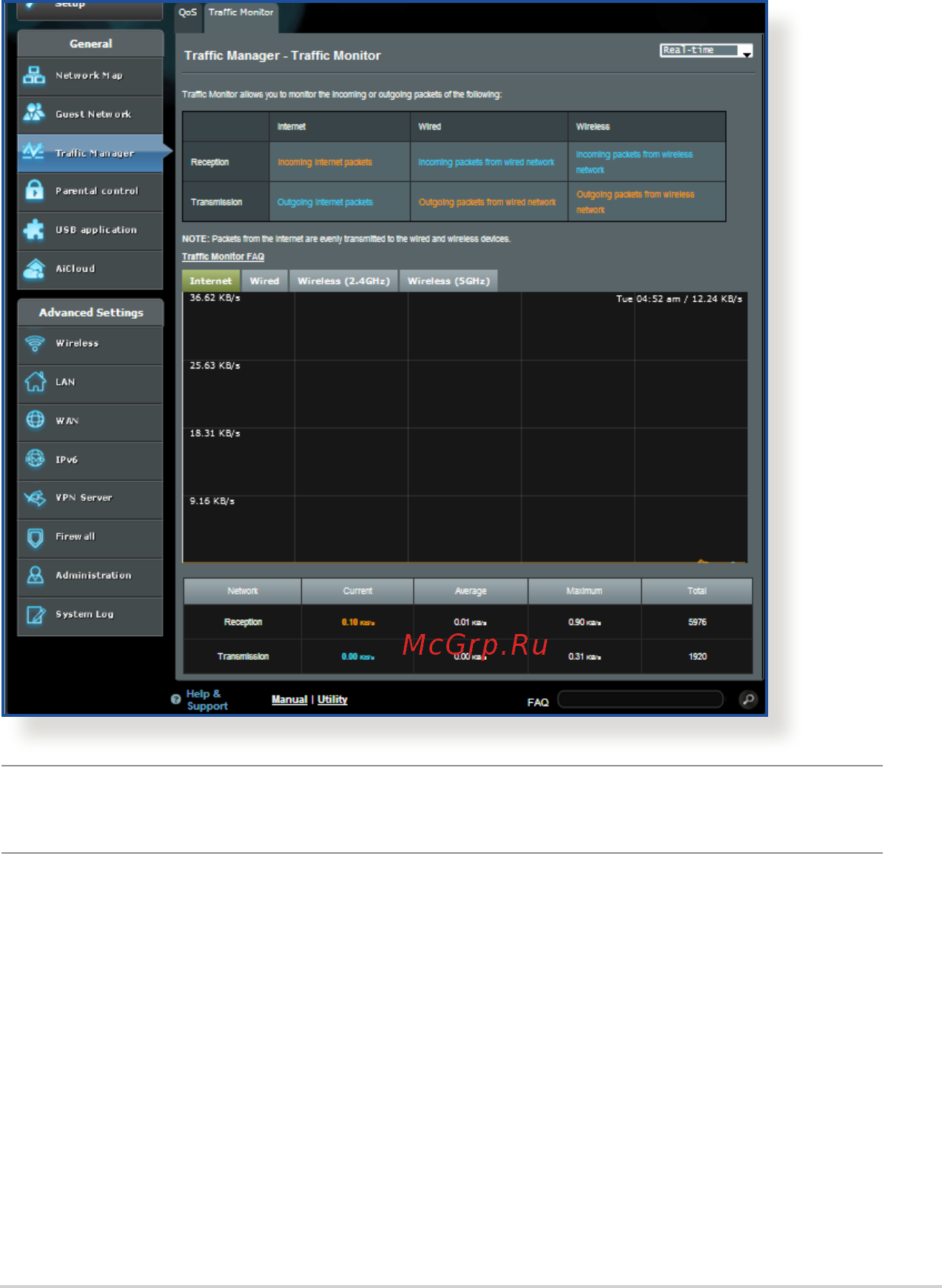

3.3.2 Monitoring Trac

The trac monitor function allows you to access the bandwidth

usage and speed of your Internet, wired, and wireless networks. It

allows you to monitor network trac even on a daily basis.

NOTE: Packets from the Internet are evenly transmitted to the wired

and wireless devices.
