Asus RT-AC1200HP Руководство пользователя онлайн [94/129] 195561

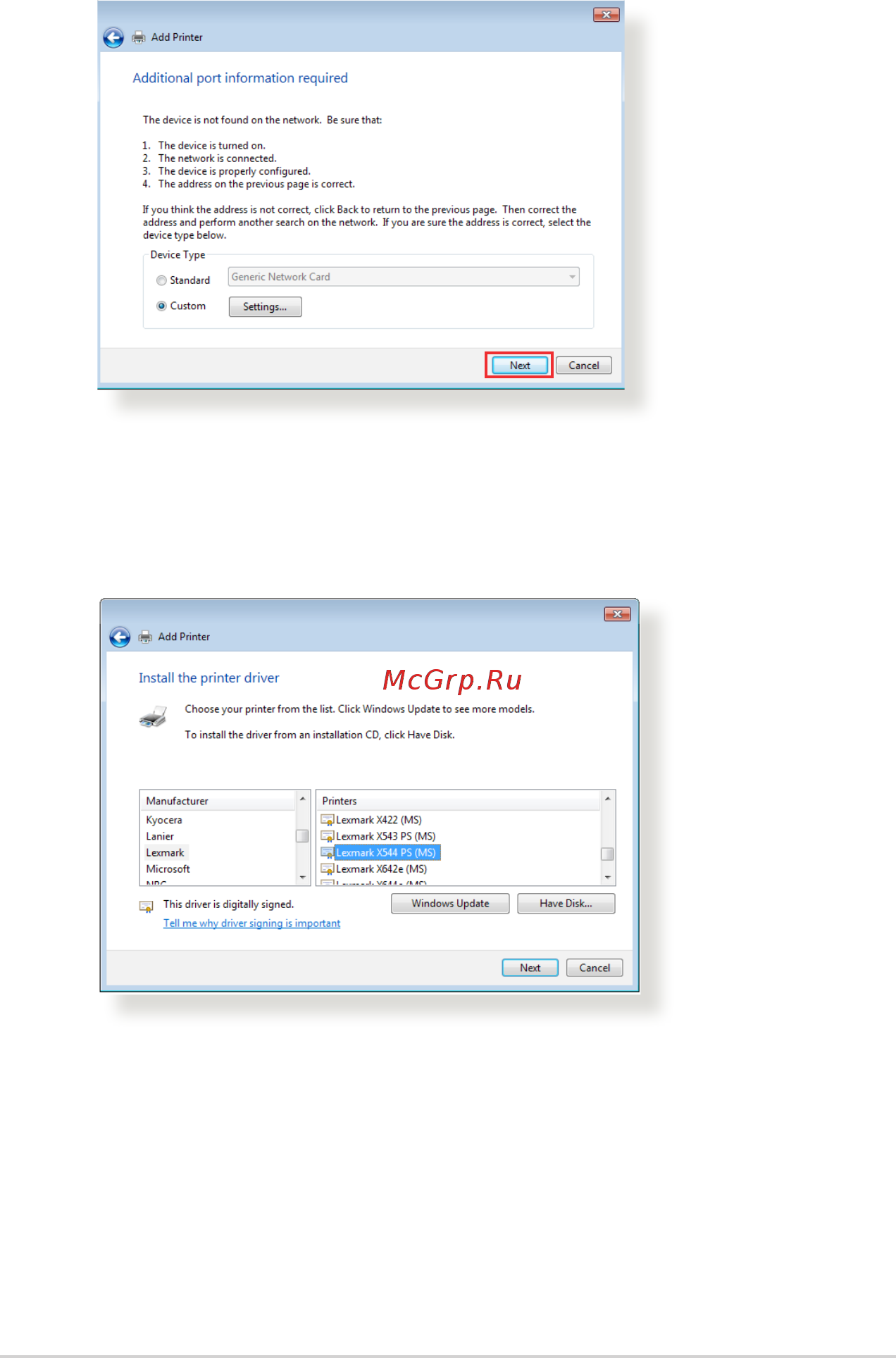

7. Click Next to nish setting up the standard TCP/IP port.

8. Install the printer driver from the vendor-model list. If your

printer is not in the list, click Have Disk to manually install the

printer drivers from a CD-ROM or le.
