Rear Panel Setting
a 5.1CH input jack
b TUNER input jack
c TV input jack
d AUX input jack
e Left surround channel output terminal
f Center channel output terminal
g Right surround channel output terminal
h Left front channel output terminal
i Right front channel output terminal
j Power cord
k Power switch
5. REMOTE CONTROL
a Standby keypress
b AUX input selection keypress
c 5.1CH input selection keypress
d Jazz mode selection keypress
e Left front channel selection keypress
f Center channel selection keypress
g Surround channel selection keypress
h Tremble adjustment selection keypress
i Tone down keypress
j Mute keypress
k TUNER input selection keypress
l TV input selection keypress
m Bypass mode selection keypress
n Virtual surround sound field selection key
o Pop mode selection keypress
p Rock & Roll mode selection keypress
q Right front channel selection keypress
r Volume enhancer keypress
s Bass channel selection keypress
t Reset key
u Surround channel selection keypress
v Volume attenuator keypress
w Bass adjustment selection keypress
x Tone enhancer keypress
OPERATION MANUAL
14

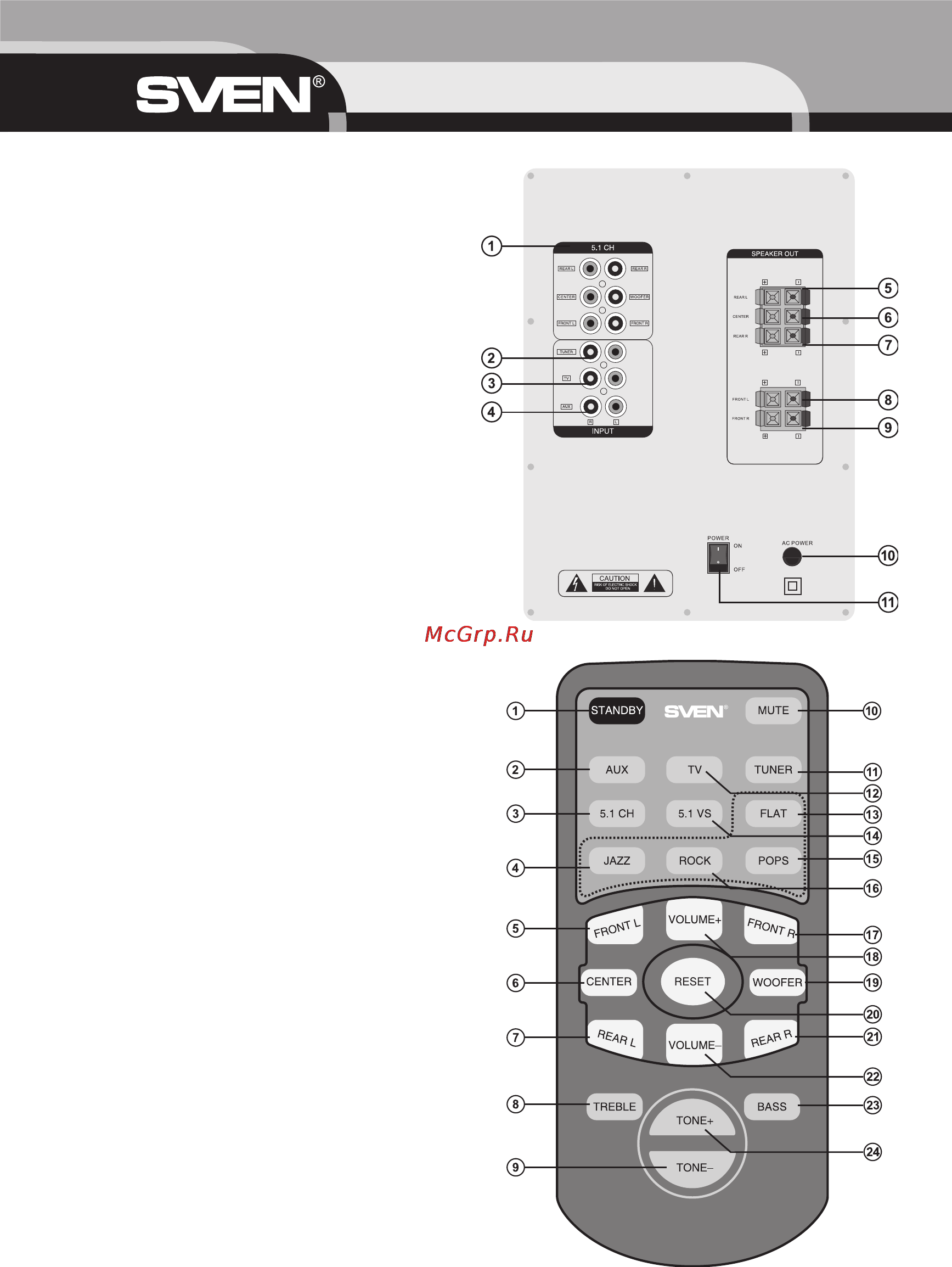

Fig. 2. Rear panel
Fig. 3. Remote control
