6. CONNECTION WITH SOUND SOURCE AND SATELLITE

Connection with the sound source while connecting with sound source, use the RCA pin type connecting line.

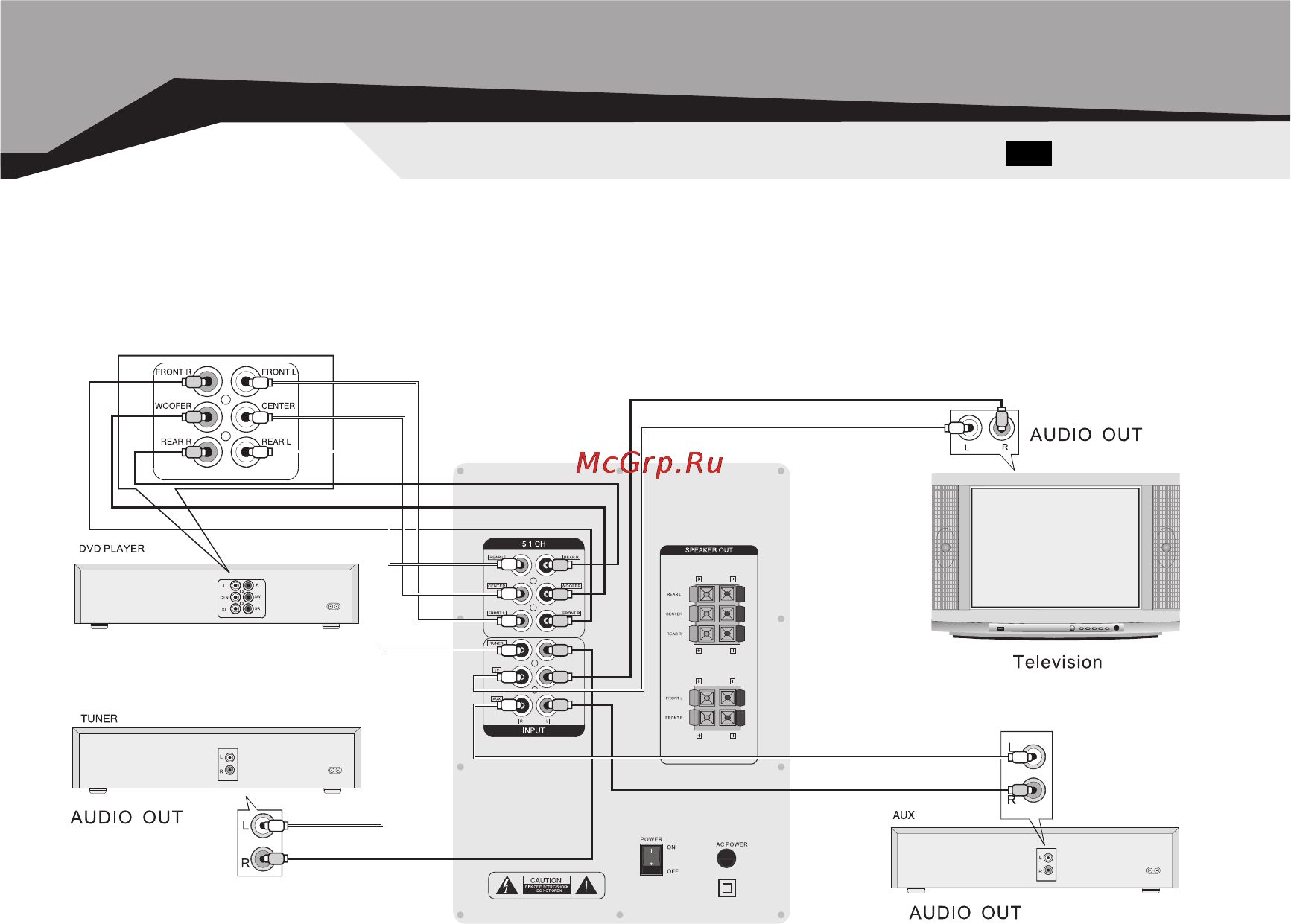

Please connect correctly the marked left jack with other marked left plug of other components Please refer the detailed connection to

the following chart.

Notes on connection with loudspeaker.

Do not make the speaker polarity positive (+) and (&) negative short&circuited. Despite perfect protection circuit long period short cir&

cuit will damage this unit Use short speaker connection line. Please strip off approx.10mm of the insulation from the wire end. If the

wire core is loose please twist tightly.
