EN
PREFACE1.
GENERAL1.1
Congratulations on choosing the FastMig welding equipment. Used correctly, Kemppi
products can signicantly increase the productivity of your welding, and provide years of
economical service.
This operating manual contains important information on the use, maintenance and safety of
your Kemppi product. The technical specications of the equipment can be found at the end
of the manual.
Please read the manual carefully before using the equipment for the rst time. For your
own safety and that of your working environment, pay particular attention to the safety
instructions in the manual.
For more information on Kemppi products, contact Kemppi Oy, consult an authorised Kemppi
dealer, or visit the Kemppi web site at www.kemppi.com.
The specications presented in this manual are subject to change without prior notice.
Important notes
Items in the manual that require particular attention in order to minimise damage and
personal harm are indicated with the ’NOTE!’ notation. Read these sections carefully and follow
their instructions.
PRODUCT INTRODUCTION1.2
FastMig KMS 400 MVU is multi-operator power source designed for demanding professional
use. It is suitable for MMA and MIG welding in DC.

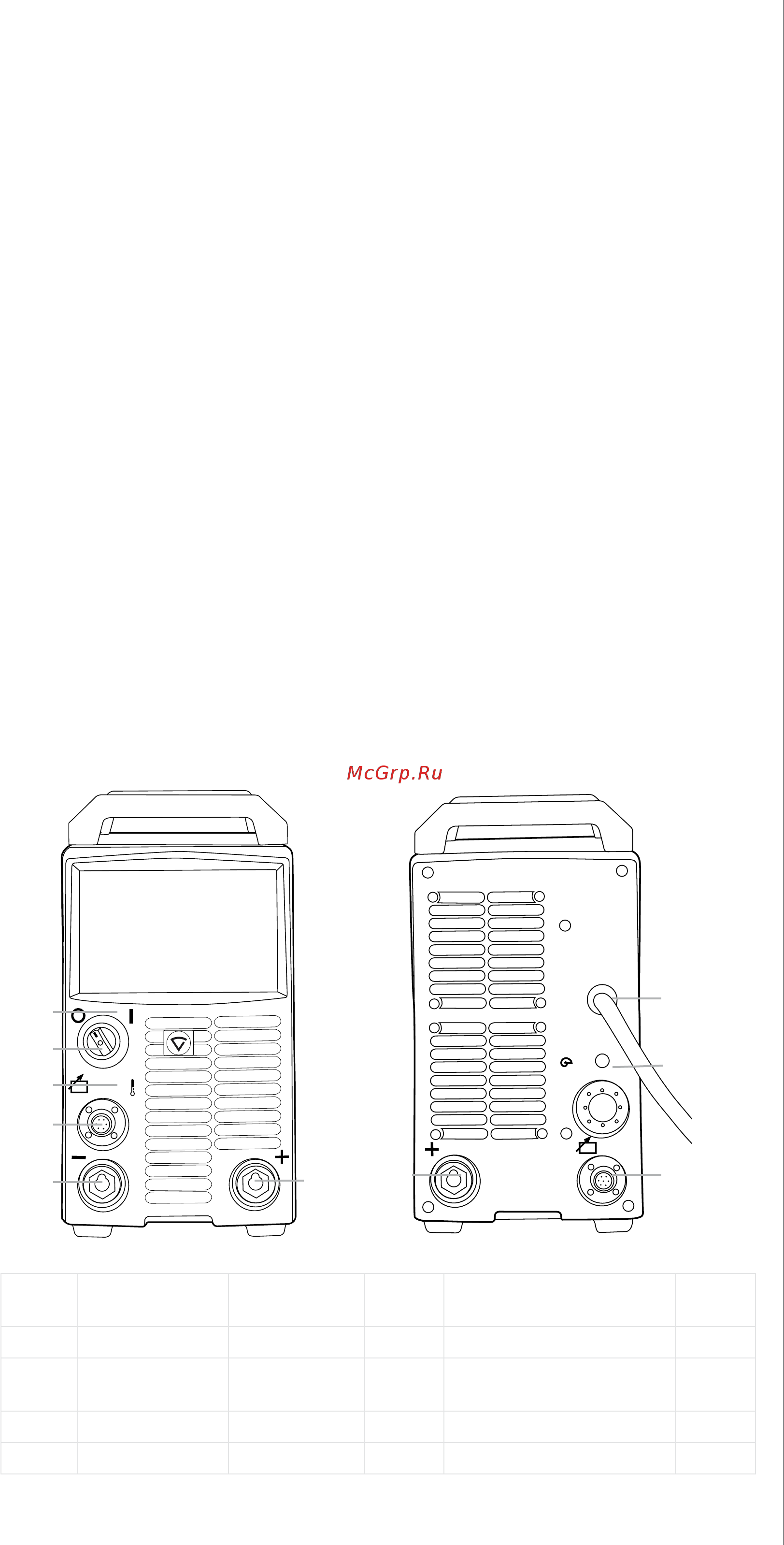

Operation control and connectors1.2.1
H12
H11
S11
X11
X12
X14
6,3A
X13
X15
01
F11
F11
Fuse for connection for
control table
6,3 A delayed
X12
Earth connection
H11
Signal lamp I/O
X14 , X15
Connection for control cable parallel
H12
Warning lamp for
thermal protection
01
Inlet of mains cable
S11
Main switch I/O
X11, X13
Welding connection parallel
3
FastMig KMS 400 MVU / © Kemppi Oy / 1042
