www.timberk.com • electric convector heater
6

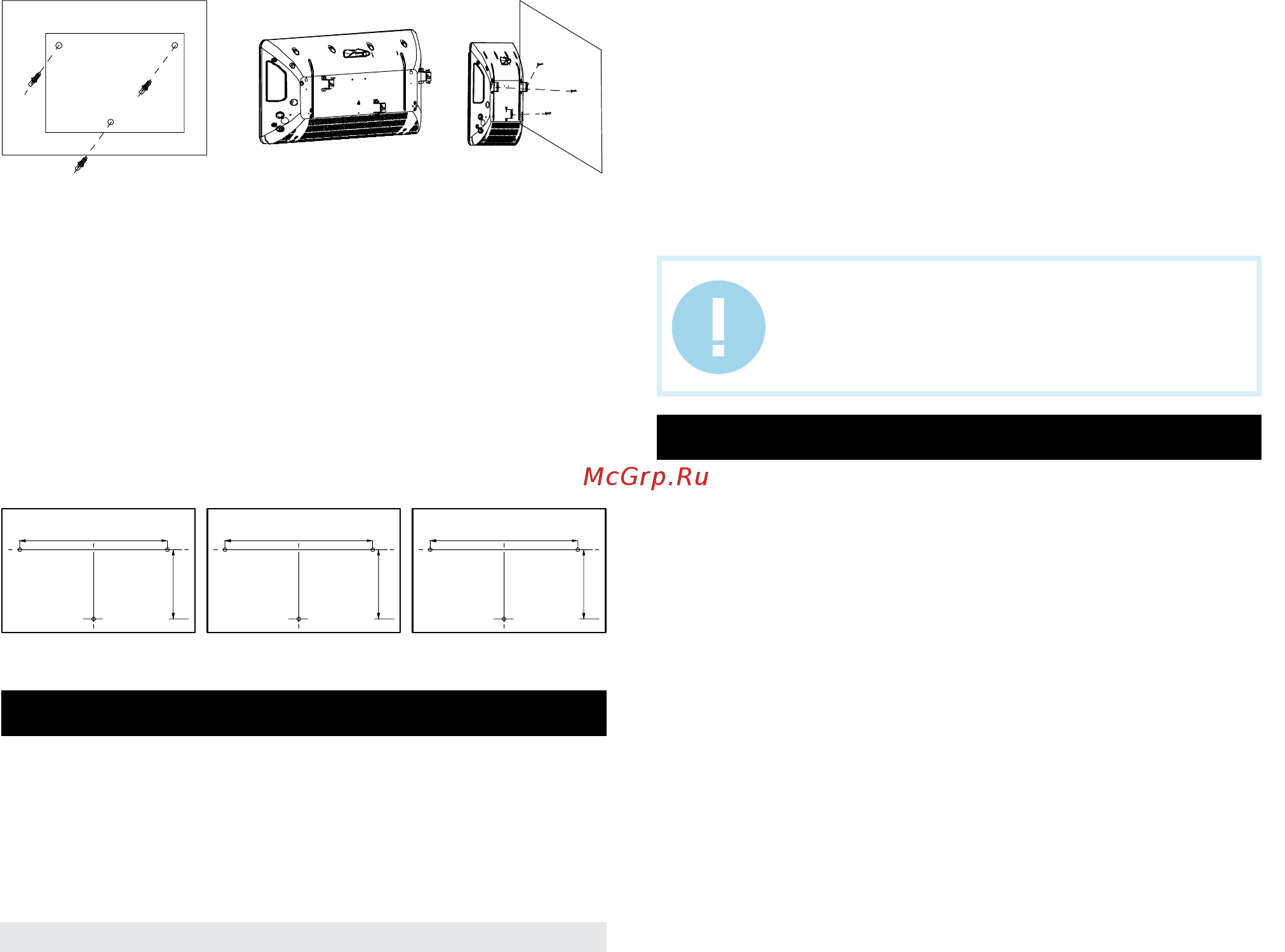

Fig. 3
Fig. 6
Fig. 4 Fig. 5
Floor installation
1. Carefully remove the heater from the package.
2. Make sure that the parts of the appliance have no remaining crumbles of
packing foam plastic or other debris.
3. Remove the two support legs from the packaging of the convector.
4. Turn the unit so that its bottom was in easy access.
5. Attach the support legs to the bottom of the device to the left and right
sides so that the fastening holes align with the holes on the fixture.
6. Tighten the screws in the existing holes.
1. Convector is designed for connection to the plug with single-phase 220-
240~V, 50Hz.
2. Before connecting, make sure that the voltage is correct as specified on
the nameplate with the technical data of the device.
3. Convector when connected to the plug must comply with applicable
1000 W
300 494 600
118110119
1500 W 2000 W
7. CONNECTING TO THE MAINS
8. OPERATION
electrical codes.
4. Electric outlet must be properly grounded. The receptacle must be
rated for at least 10A. Electrical plug and socket must always be kept
dry to prevent electrical leakage. Regularly check that the electrical plug
is firmly connected to the outlet. Verification is performed in the following
order: Insert the mains plug into the socket. After half an hour, turn off the
convector and unplug the power cord, check with the hand, whether the
plug is not heated.
If the plug is heated to a temperature above 50 °C, in order to avoid
damage, accidents, fire, due to poor electrical contact replace the socket
with help of a specialist.
For models:
TEC.E15 M 1000
TEC.E15 M 1500
TEC.E15 M 2000
1. Inclusion
1.1 Connect the convector to the mains by inserting the plug into the outlet.
2. Selecting the heating power
2.1 Turn the knob in the heating mode position «I» to select low power
heating.
2.2 Turn the selector knob to position the heating mode «II» to select the
average heating power.
2.3 Turn the selector knob to position the heating mode «III» to select a
high heating power.
3. Setting the temperature
3.1 Turn the thermostat knob clockwise until it stops. When the room
temperature reaches the desired level, turn the thermostat knob counter-
IMPORTANT!
The power outlet should be rated at least 10A for models
with a maximum capacity of up to 2000 W and at least
12 A for models with a maximum capacity of 2500 watt.
