Medeli DD 501 [2/4] Assembly
![Medeli DD 501 [2/4] Assembly](/views2/1239505/page2/bg2.png)

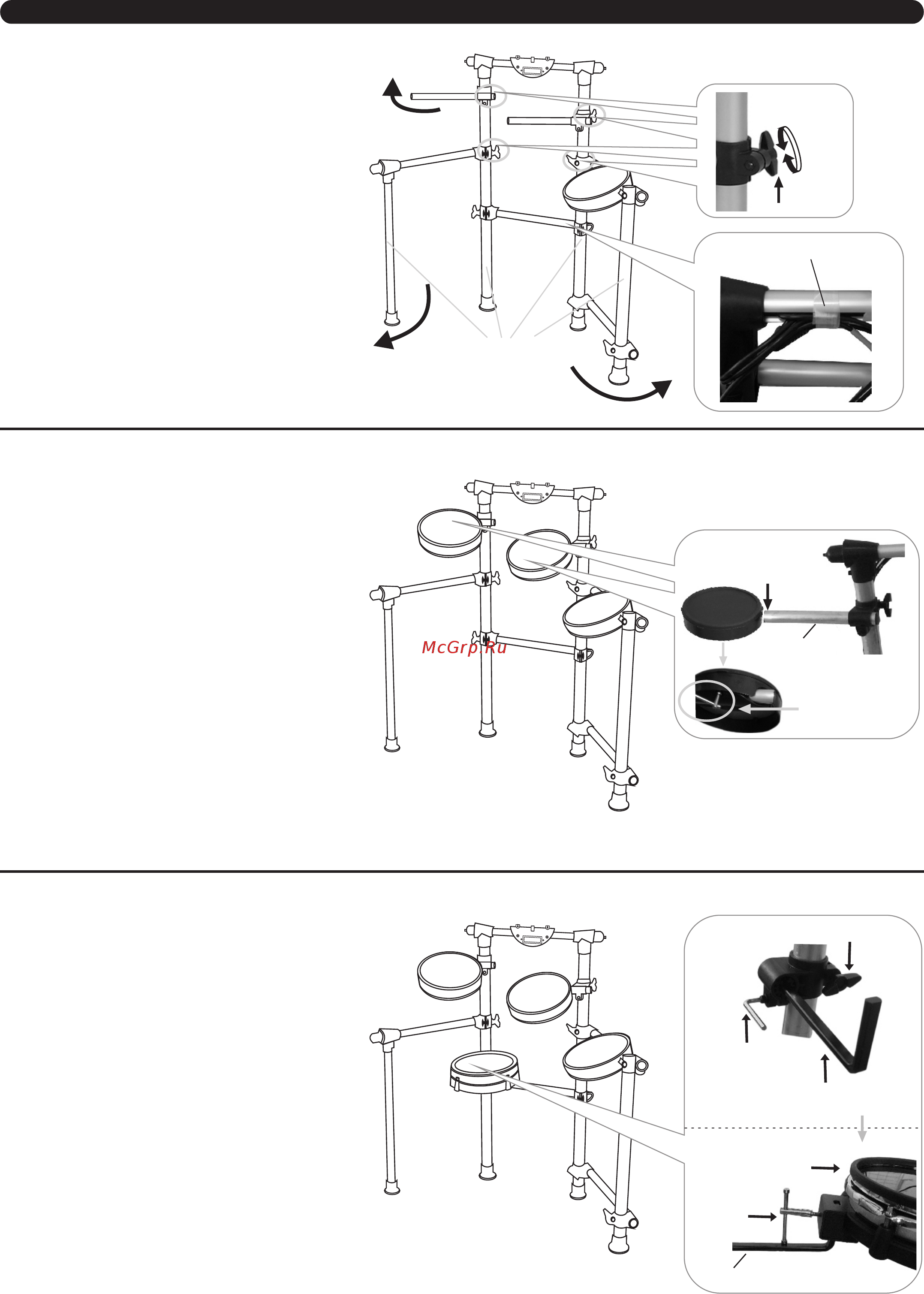

Assembly
1 Open the stand
[1]Tear off the adhesive tape on the stand.
[2] Loosen the wing nuts on the pillars.
[3] Open the stand in the order shown
in the illustration (A, B, C).
[4] Adjust the pillars height so that the
stand can locate steadily on the floor.
[5] Tighten the wing nuts on the pillars.
[A]
[B]
[C]
2 Attaching the tom pads
[1] Insert the two tom pads into the
side arms respectively.
[2] Use a drum key to tighten the
screw on the bottom of tom pad.
[3] Adjust the side arms height so that
it does not interfere with other pads.
[4] Tighten the wing nuts on the pillars.
3 Attaching the snare pad
[1] Adjust the clamp position, then tighten
the wing nuts on the clamp.
[2] Use hexagon key to loosen the screw of
holder clamp.
[3] Insert the metal rod into the holder clamp
and adjust the position.
[4] Use hexagon key to tighten the screw of
holder clamp.
[5] Attach the snare pad to the metal rod and
adjust the position, then tighten the screw
on the snare pad.
adjust the
pillars height
Use a drum key to
tighten the screw on
the bottom of tom pad.
Insert the two tom
pads into the side
arms respectively.
side arm
use hexagon key to
loosen or tighten the
screw.
tighten the wing nut.
insert the metal rod into
the lock and adjust the
position.
Wing nuts
Tighten
Lossen
tighten the
screw.
attach the snare pad
to the metal rod.
metal rod
Tear off the adhesive tape
