Medeli DD 512 [7/40] Connections
![Medeli DD 512 [7/40] Connections](/views2/1239514/page7/bg7.png)

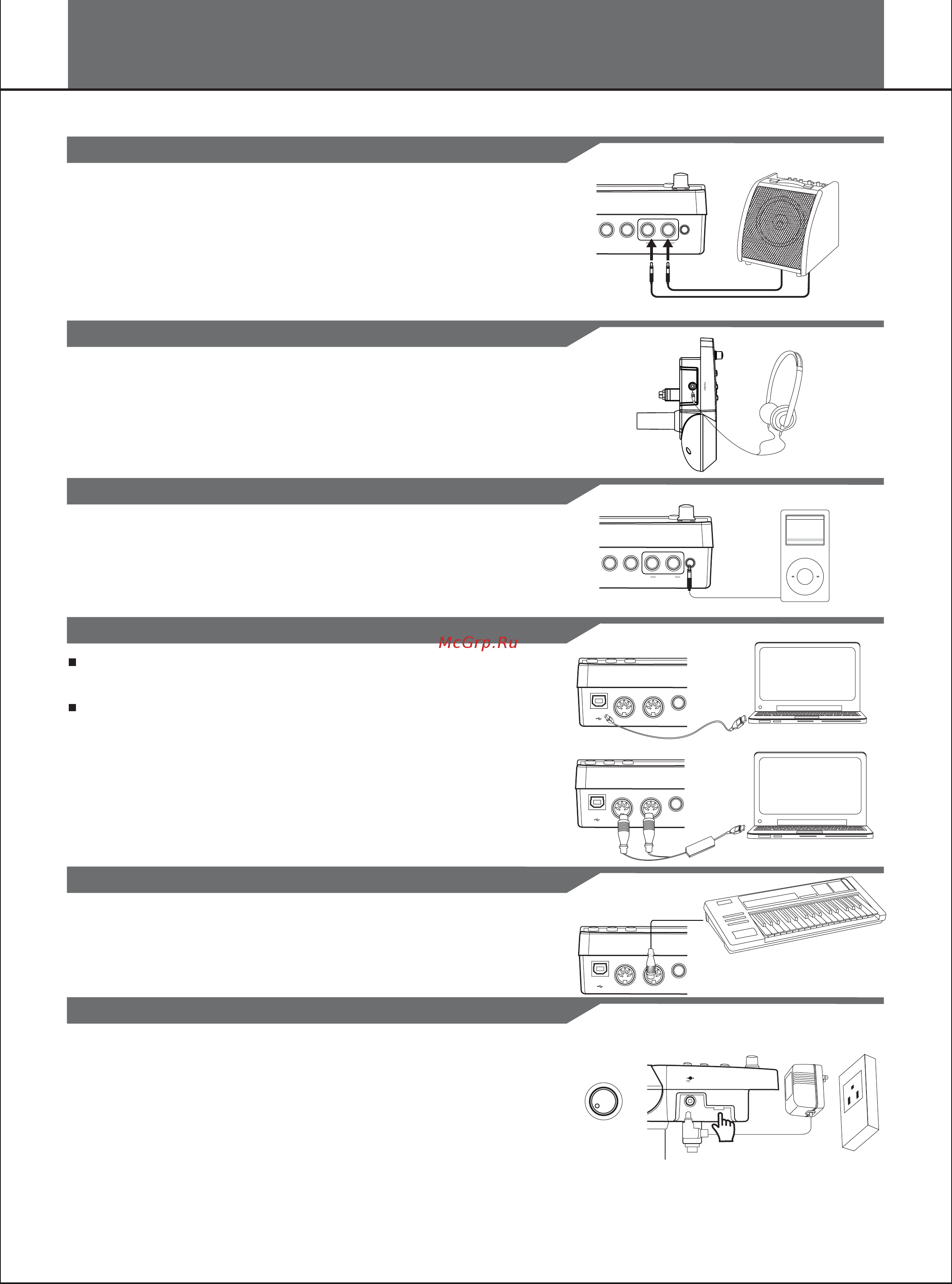

Connections
Connecting an Audio Equipment
Connecting a set of Headphones
Connecting an MP3/CD Player
Connecting a Computer
Connecting a Midi Keyboard
Note:
For mono playback, use the L/MONO jack.
For stereo playback, connect both L/MONO and R jacks.
The line output volume is controlled by the VOLUME knob.
When using an amplifier, connect the Output L/MONO and R
jacks on the rear panel to the input of the amplifier.
An optional set of stereo headphones can be connected to the
PHONES jack located on the side of the drum module.
The headphones output volume is controlled VOLUME knob,
too.
Connect the audio output of an MP3/CD player or other audio
source to the stereo AUX IN jack on the rear panel.
The input signal is mixed with the drum signal, allowing you to
play along.
If you’re using an external MIDI keyboard or pads to control the
digital drum, make connections as shown. Here, it is used as a
sound module.
MIDI OUT
TOM 4
MIDI OUT
MID I OUT
MIDI IN
USB
USB
R
L/M ONO AUX. IN
OUTPUT
TOM 4 CRASH 2
MID I OUTUSB
R
L/M ONO AUX. IN
OUTPUT
TOM 4 CRASH 2
MID I OUTUSB
TOM 4
MIDI OUT
MID I OUT
MIDI IN
USB
USB
TOM 4
MIDI OUT
MID I OUT
MIDI IN
USB
USB
7
Via the USB Connector
This receives and transmits MIDI messages.
Via the MIDI Connectors
MIDI IN Connector
This receives MIDI messages transmitted from an external
MIDI device or a computer.
MIDI OUT Connector
Pad performance data is transmitted from this connector to
connected computer or MIDI device.
ON / O
F
F
9
V
VOLUME
Power Supply & Switch
Make sure the power is switched OFF. Connect the power
adaptor to the DC IN jack on the side panel. After confirming
that all connections have been completed, rotate the volume
knob to the left (minimum volume level) before switching the
power on. Set the power switch to the “ON” position. The KIT
indicator on LCD will light up and the display will show kit
number 001.
Note:
Make sure the power is switched OFF when connecting the
drum module with external devices.
- +
