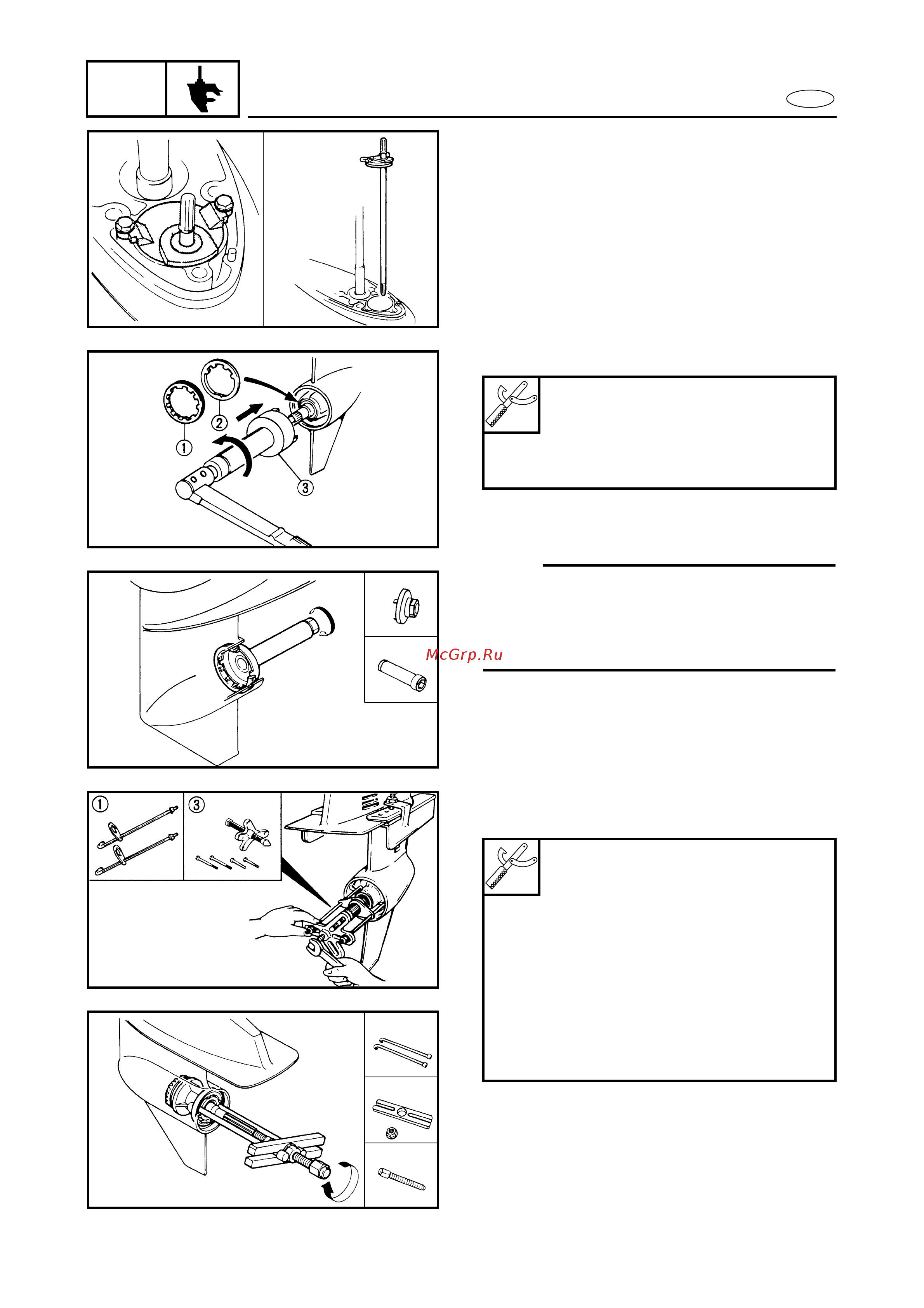

![Yamaha 90 AETOL [97/204] Disassembly](/views2/1241011/page97/bg61.png)
6-4
E
LOWR
DISASSEMBLY
4) Shift-rod
5) Ring-nut 1 and claw-washer 2
Å For USA and Canada
ı Except for USA and Canada
NOTE:
To remove the ring-nut: straighten the lobe
of the claw-washer by using a screwdriver,
then attach and turn it in the direction of the
off mark using the special service tool.
Ring nut wrench:
YB-34447................................ 3
90890-06511........................... 4
Extension (ring nut wrench):
90890-06513........................... 5
Å
ı
4
5
6) Bearing-housing
Using special service tool.
Å For USA and Canada
ı Except for USA and Canada
Claw:
YB-6207.................................. 1
50, 60, 70 hp:
90890-06503........................ 2
75, 80, 90 hp:
90890-06502........................ 2
Flywheel puller:
YB-6117.................................. 3
Stopper guide plate:
90890-06501........................... 4
Center bolt:
90890-06504........................... 5
Å
2
5
4
ı
