Yamaha F30 BETL [40/62] Ref no part no description
![Yamaha F30 BETL [40/62] Ref no part no description](/views2/1241067/page40/bg28.png)
36

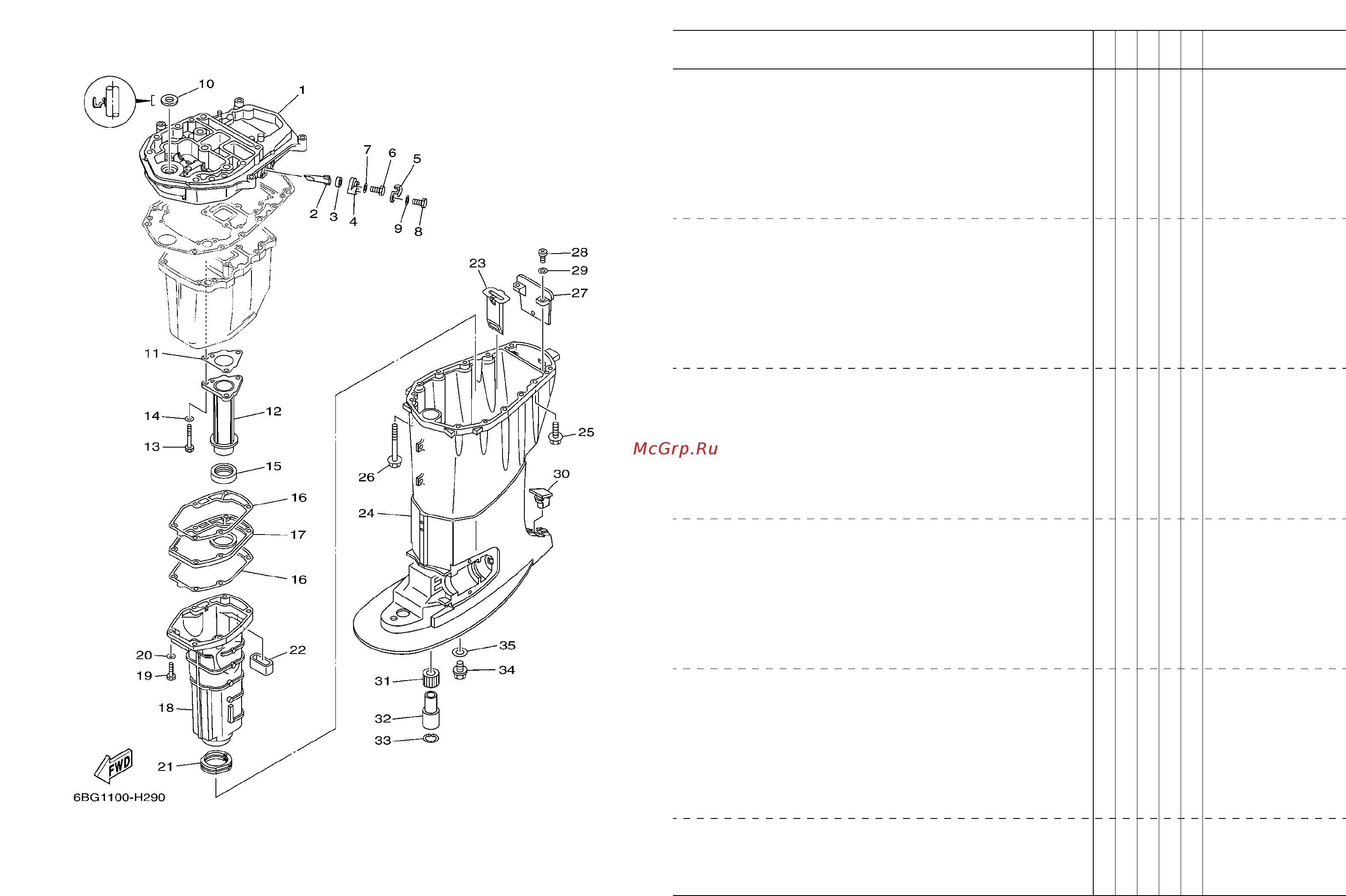

FIG. 26 UPPER CASING
REF.
NO.
PART NO. DESCRIPTION
ET
ED
REMARKS
1
6BG–41137–00–CA
GUIDE, EXHAUST 1 1
2
62Y–11325–00
ANODE 1 1
3
66M–11328–00
GROMMET, ANODE 1 1
4
66M–11327–00–94
COVER, ANODE 1 1
5
66M–12535–00
PLATE 1 1
6
97095–05012
BOLT 1 1
7
92995–05600
WASHER 1 1
8
97013–06020
BOLT 1 1
9
92903–06600
WASHER, PLATE 1 1
10
93110–16004
OIL SEAL 1 1
11
64J–41133–10
GASKET, EXHAUST MANIFOLD 1 1 1
12
6BG–41131–00–CA
MANIFOLD, EXT. 1 1 1
13
97075–06050
BOLT 3 3
14
92995–06600
WASHER 3 3
15
64J–46132–10
GASKET 1 1 1
16
6BG–41134–00
GASKET, EXHAUST MANIFOLD 2 2
17
6BG–45181–00–CA
PLATE 1 1
18
6BG–14711–00–CA
MUFFLER 1 1 1 S(16.1")
69W–14711–00–CA
MUFFLER 1 1 1 L(21.0")
19
97075–06025
BOLT 6 6
20
92995–06600
WASHER 6 6
21
67C–45123–00
GASKET, MUFFLER 1 1
22
62Y–45127–00
SEAL 1 1
23
64J–77123–00
GUIDE 1 1 1
24
6BG–45111–00–8D
CASING, UPPER 1 1 S(16.1")
6BG–45111–10–8D
CASING, UPPER 1 1 L(21.0")
25
90119–08102
BOLT, WITH WASHER 4 4
