Echo SRM-2305SI [11/18] Srm 2305si 8 gear case blade
![Echo SRM-2305SI [11/18] Srm 2305si 8 gear case blade](/views2/1241296/page11/bgb.png)
- 10 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
1 P021-012610 1 CASE,GEAR
2 + 610320-52130 1 NUT 10
3 + 699229-56830 1 PLATE, COVER
4 + 610314-52130 1 PLATE, ADAPTER (L)
5 + 900720-00012 1 O-RING 12
6 + C535-000001 1 FIXTURE,BLADE
11 ++ 610352-56830 1 PLATE, CUP
14 ++ C535-000011 1 FIXTURE,BLADE
7 + 900702-00032 1 CIRCLIP 32
8 + 610444-56830 1 WASHER
9 + 900812-06201 1 BEARING, BALL 6201
10 + 610310-56830 1 SHAFT, P.T.O.
12 + 610300-40830 1 GEAR SET
13 + 900810-00626 1 BEARING, BALL 626
15 + 610473-52131 1 SPRING
16 + 900603-50008 1 WASHER
17 + 610434-50031 1 BOLT 8* 8
18 + 900242-05010 1 SCREW 5*10
19 + 91118-06025 1 BOLT
20 + 900855-06900 1 BEARING, BALL 6900
21 + 900858-06900 1 BEARING, BALL 6900Z
22 + 900702-00022 1 CIRCLIP 22
23 + 900706-00010 1 CIRCLIP 10
30 X405-000011 1 SAW,BUSH CUTTER

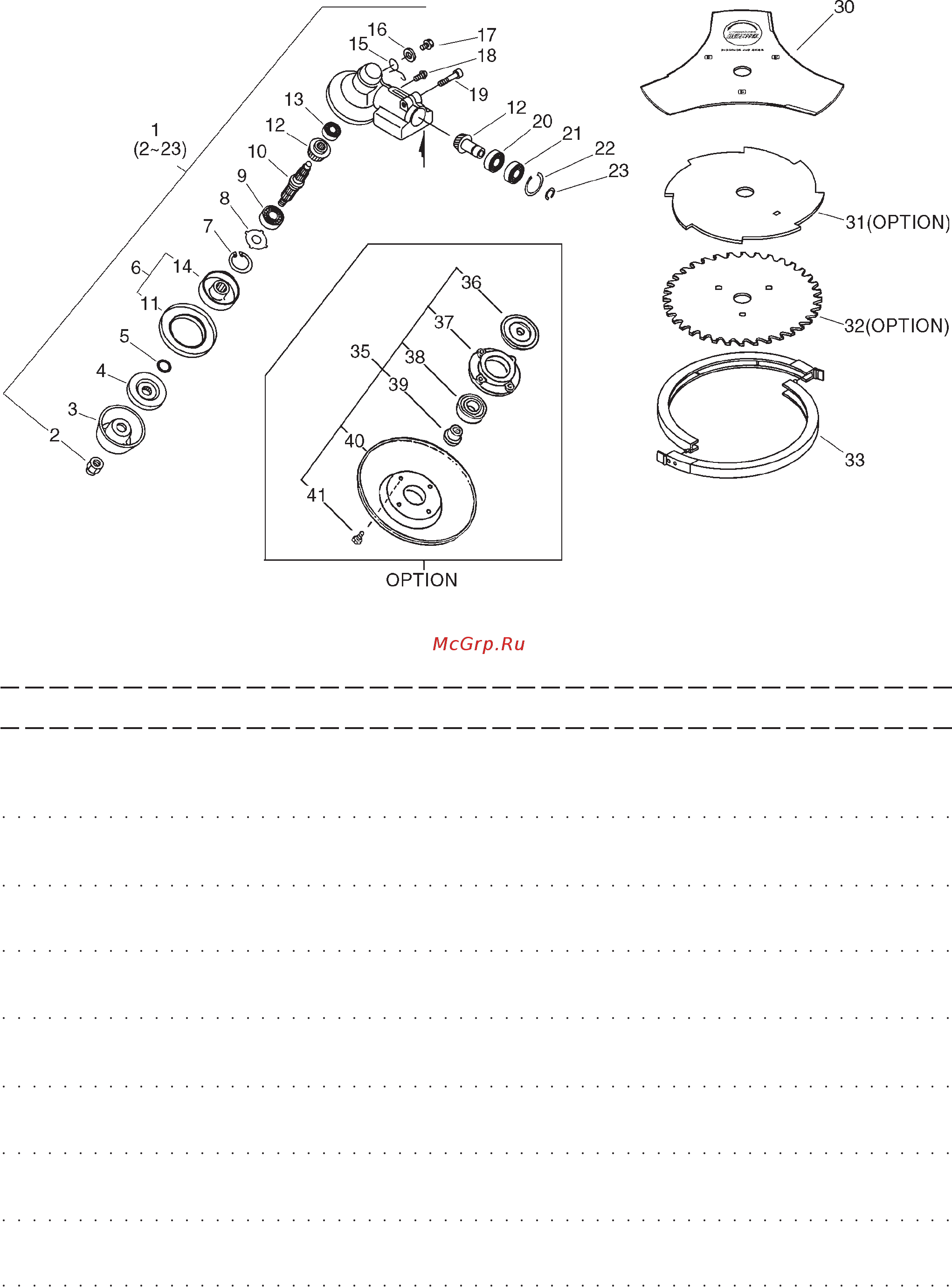

SRM-2305SI 8 Gear Case, Blade
