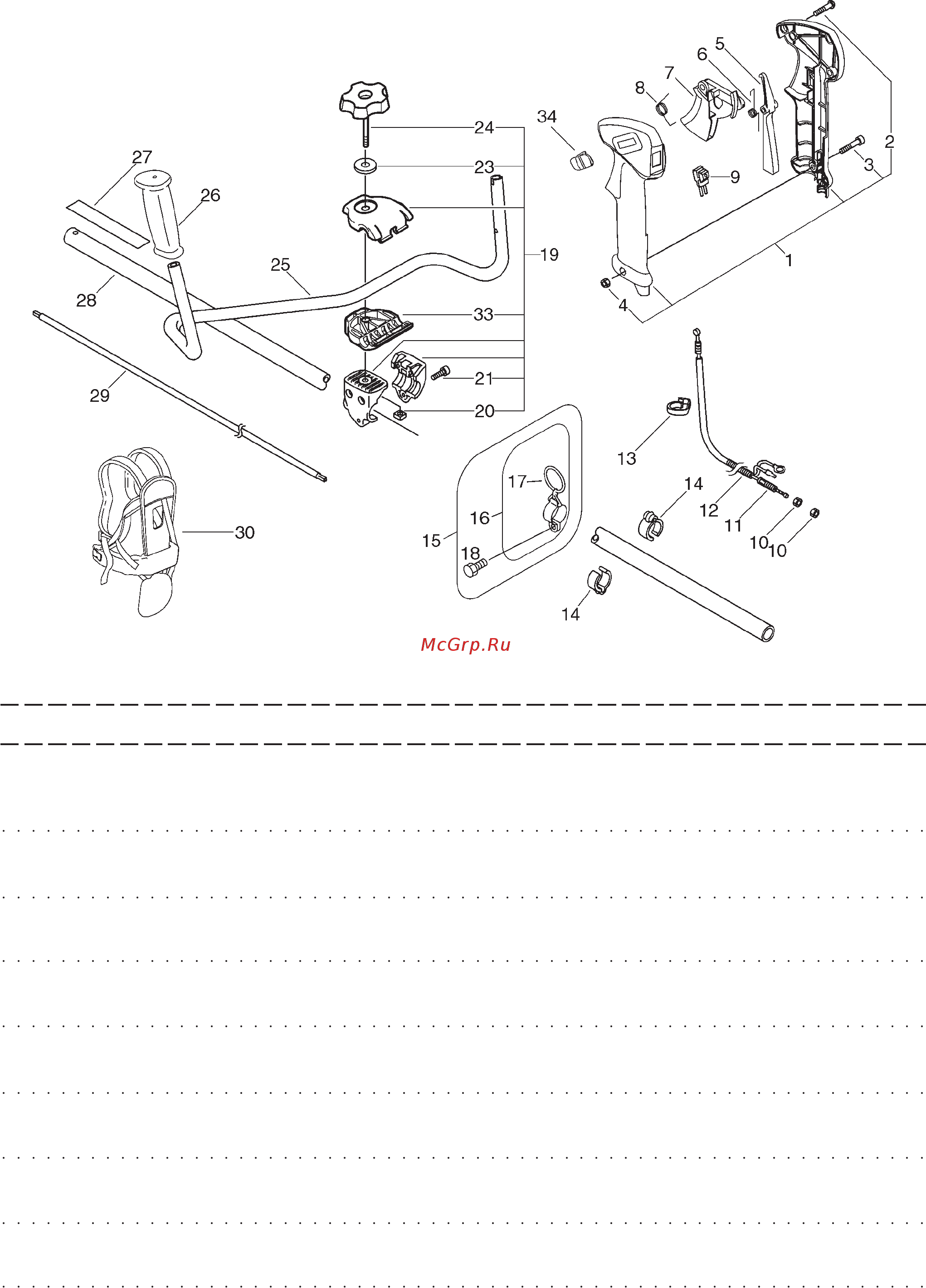

Echo SRM-2305SI [9/18] Srm 2305si 7 handle
![Echo SRM-2305SI [9/18] Srm 2305si 7 handle](/views2/1241296/page9/bg9.png)
- 8 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
1 P021-002612 1 GRIP ASY,F-HANDLE
2 + 900253-04016 3 SCREW 4*16
3 + 900220-05030 1 SCREW 5*30
4 + 900500-00005 1 NUT 5
5 C460-000011 1 LOCKOUT,THROTTLE
6 V452-000130 1 SPRING,TORSION
7 C450-000022 1 TRIGGER,THROTTLE
8 V452-000060 1 SPRING,TORSION
9 163401-49230 1 SWITCH, IGNITION
10 900502-00006 2 NUT 6 (3N)
11 V430-000410 1 CABLE,BOWDEN
12 178127-47530 1 TUBE
13 159112-09961 1 CLIP
14 224924-52130 2 CLIP
15 P021-013000 1 RING, HARNESS ASSY
16 + 301200-21330 1 HOOK ASS'Y
17 ++ 301015-05330 1 HOOK, BAND
18 + 91119-05012 1 BOLT
19 P021-012820 1 FIXTURE,ASY HANDLE
20 + 900565-50008 1 NUT
21 + 91118-05030 3 BOLT
23 + 605014-54230 1 WASHER
24 + V299-000110 1 KNOB,FASTENER
33 + C423-000041 1 FIXTURE,HANDLE
SRM-2305SI 7 Handle
Содержание
- 101011 06562 1 cylinder 2 900162 05022 2 bolt h s 5 22 3 101010 44332 1 gasket cyl base 4 p021 001102 1 piston kit 5 a101 000000 2 ring piston 6 100013 11520 1 pin piston 7 100015 04630 2 circlip piston pin 8 100014 11520 2 spacer piston pin 9 a011 000101 1 crankshaft asm 10 v553 000010 1 bearing needle 8 11 100204 52132 1 crankcase kit 12 100212 42031 2 oilseal 13 100215 03930 2 pin dowel 14 94035 36201 2 bearing ball 15 100242 42030 1 gasket crankcase 16 900162 05028 3 bolt h s 5 28 17 101511 44730 1 cover fan bs 19 101514 42031 1 cover cylinder 20 900238 04012 2 screw 4 12 21 x547 000650 1 label echo 22 900238 04016 6 screw 4 16 23 p021 013520 1 holder kit 24 91118 05025 2 bolt 25 610922 27432 1 holder 2
- Key lv part number q ty description remarks 2
- Srm 2305si 1 cylinder crankcase piston 2
- 610923 27432 1 holder 27 610910 27832 1 cushion 28 900238 05016 4 screw 5 16 29 610223 44730 1 case clutch bs 3
- Key lv part number q ty description remarks 3
- Srm 2305si 1 cylinder crankcase piston 3
- 900701 00012 1 circlip 12 3 900807 06001 2 bearing ball 6001 4 900702 00028 1 circlip 28 5 175005 47630 1 drum clutch 6 175000 52733 1 clutch asy 15 175018 52131 2 spring clutch 7 156801 44731 1 flywheel 8 156601 52130 1 coil ignition 9 900162 04022 2 bolt h s 4 22 10 162010 52830 1 lead ground 11 159012 03433 1 cap spark plug 12 159011 03432 1 coil spark plug 13 159010 10230 1 plug spark bpmr 7a 14 150112 42030 1 bushing 4
- Key lv part number q ty description remarks 4
- Srm 2305si 2 fan cover magneto clutch 4
- 900253 05020 3 screw 5 20 16 x505 000620 1 label caution 18 x502 000460 1 label echo 19 a051 000292 1 starter recoil 20 177246 11120 1 clip starter rope 21 177228 27030 1 grip starter 22 p022 004610 2 spring return 23 p022 004620 2 pawl starter 24 p022 004680 1 spring spiral 25 p022 004600 1 rope starter 26 p022 004690 1 reel rope 27 p022 004660 1 spring return 28 p022 004670 1 pawl starter 29 p022 005230 1 complete spring 30 p022 004640 1 plate cam 31 p022 004630 1 screw 33 900238 04016 2 screw 4 16 35 v376 000361 1 spacer 40 a052 000130 1 pulley asm starter 41 p022 004740 2 pawl starter 42 177234 12220 2 spring pawl 43 p022 002100 2 e ring 5
- Key lv part number q ty description remarks 5
- Srm 2305si 3 starter 5
- 130010 42032 1 gasket intake 2 900500 00005 2 nut 5 3 900238 05020 2 screw 5 20 4 130017 42031 1 insulator intake 5 130016 42031 1 gasket intake 6 125200 52433 1 carburetor 7 178510 48830 1 rod choke 8 130301 04560 1 case air cleaner 9 178810 05230 1 grommet 10 178515 04560 1 shutter choke 11 178516 00830 1 spacer 12 130410 44730 1 bracket air cleaner 13 900242 05057 2 screw 5 57 14 130310 04560 1 filter air 15 130302 50630 1 cover assy air cln 16 900720 00004 1 o ring p 4 17 130415 40630 1 screw 19 890121 47530 1 label choke 21 p021 000052 1 muffler asy 22 v104 000160 2 gasket exhaust 25 900242 04010 3 screw 4 10 26 145866 42031 1 gasket muffler lid 27 145876 42030 1 lid muffler b 28 145863 42030 1 holder screen 29 900105 05055 2 bolt h s 5 55 31 a320 000251 1 cover muffler 32 145642 04930 1 washer 6
- Key lv part number q ty description remarks 6
- Srm 2305si 4 air cleaner carburettor muffler 6
- 131005 44332 1 tank fuel 2 900243 05016 2 screw 5 16 3 305110 42030 1 stand bl 4 131004 55530 1 cap assy fuel tank 5 131016 55830 1 gasket fuel cap 6 131051 56030 1 clip fuel cap 7 131300 56430 1 valve check 8 130111 00530 1 clip 9 v471 001200 1 pipe 10 132115 46730 1 grommet fuel 11 132013 09820 1 clip 12 131205 07320 1 strainer fuel 13 132010 56330 1 pipe 3 6 90 14 v471 001190 1 pipe 7
- Key lv part number q ty description remarks 7
- Srm 2305si 5 fuel tank 7
- 895610 00130 1 l wrench 4mm 2 895112 00330 1 spanner 8 10 3 x602 000020 1 tool wrench 4 897518 01131 1 locking tool 5 p021 002861 1 goggles 6 898510 39130 1 bag tool 10 p021 002620 1 shield blade w knife 11 c550 000080 1 shield blade 12 c554 000000 1 knife cord 13 900252 05012 1 screw 5 12 15 c550 000100 1 shield blade 16 900565 00005 1 nut 17 900242 05018 1 screw 5 18 21 c550 000090 1 shield blade 22 699013 56830 1 plate shield 23 91118 05025 4 bolt 8
- Key lv part number q ty description remarks 8
- Srm 2305si 6 shield tools 8
- Key lv part number q ty description remarks 9
- P021 002612 1 grip asy f handle 2 900253 04016 3 screw 4 16 3 900220 05030 1 screw 5 30 4 900500 00005 1 nut 5 5 c460 000011 1 lockout throttle 6 v452 000130 1 spring torsion 7 c450 000022 1 trigger throttle 8 v452 000060 1 spring torsion 9 163401 49230 1 switch ignition 10 900502 00006 2 nut 6 3n 11 v430 000410 1 cable bowden 12 178127 47530 1 tube 13 159112 09961 1 clip 14 224924 52130 2 clip 15 p021 013000 1 ring harness assy 16 301200 21330 1 hook ass y 17 301015 05330 1 hook band 18 91119 05012 1 bolt 19 p021 012820 1 fixture asy handle 20 900565 50008 1 nut 21 91118 05030 3 bolt 23 605014 54230 1 washer 24 v299 000110 1 knob fastener 33 c423 000041 1 fixture handle 9
- Srm 2305si 7 handle 9
- C400 000000 1 handle front 26 c403 000031 1 grip handle 27 890617 43130 1 label caution 28 610206 28230 1 housing ass y d sft 29 610018 27830 1 shaft drive 30 c062 000181 1 harness shoulder 34 c463 000000 1 knob latch 10
- Key lv part number q ty description remarks 10
- Srm 2305si 7 handle 10
- Key lv part number q ty description remarks 11
- P021 012610 1 case gear 2 610320 52130 1 nut 10 3 699229 56830 1 plate cover 4 610314 52130 1 plate adapter l 5 900720 00012 1 o ring 12 6 c535 000001 1 fixture blade 11 610352 56830 1 plate cup 14 c535 000011 1 fixture blade 7 900702 00032 1 circlip 32 8 610444 56830 1 washer 9 900812 06201 1 bearing ball 6201 10 610310 56830 1 shaft p t o 12 610300 40830 1 gear set 13 900810 00626 1 bearing ball 626 15 610473 52131 1 spring 16 900603 50008 1 washer 17 610434 50031 1 bolt 8 8 18 900242 05010 1 screw 5 10 19 91118 06025 1 bolt 20 900855 06900 1 bearing ball 6900 21 900858 06900 1 bearing ball 6900z 22 900702 00022 1 circlip 22 23 900706 00010 1 circlip 10 30 x405 000011 1 saw bush cutter 11
- Srm 2305si 8 gear case blade 11
- 696001 44731 1 blade 8 cutter 9in 32 695001 44731 1 saw circular 9 80t 35 699200 56830 1 cap assy free 36 610313 56830 1 plate adapter u 37 699226 05430 1 holder bearing 38 900814 06202 1 bearing ball 6202 39 699227 04630 1 nut 40 699228 08930 1 plate cover 41 900141 05012 4 bolt 5 12 12
- Key lv part number q ty description remarks 12
- Option 12
- P021 007470 1 scabbard blade 12
- Srm 2305si 8 gear case blade 12
- 52433 1 carburetor 1 125344 52130 2 screw 2 125342 52130 1 cover diaphragm 3 125341 49030 1 diaphragm 4 125340 51030 1 gasket diaphragm 5 125339 42030 1 screw 6 125338 13930 1 pin metering arm 7 125323 42030 1 lever metering 8 125322 11520 1 spring coil 9 125337 06960 1 valve inlet needle 10 125327 15130 1 clip 11 p005 001050 1 nozzle check valve 12 125326 42030 1 strainer 13 125312 12820 1 diaphragm fuel pump 14 125325 13310 1 gasket pump 15 p005 000590 1 base asy primer 16 125381 08660 1 pump priming 17 125363 11610 1 ring 18 125310 11610 2 screw 19 125334 06960 1 screw throttleadjust 20 125333 06960 1 spring idle adjuster 21 125313 42030 1 spring thrt return 22 p005 000390 1 shaft throttle 23 125372 42030 1 swivel 13
- Key lv part number q ty description remarks 13
- Srm 2305si 9 carburettor 13
- 125327 13930 1 clip 25 p005 001710 1 screw mainn mixture 26 p005 001720 1 screw idle mixture 27 125314 13930 1 screw 28 125316 49030 1 valve throttle 29 125345 15130 1 plug welch 14
- Key lv part number q ty description remarks 14
- Srm 2305si 9 carburettor 14
- 13310 1 diaphragm gasket kit 903 125341 49030 1 diaphragm 904 125340 51030 1 gasket diaphragm 913 125312 12820 1 diaphragm fuel pump 914 125325 13310 1 gasket pump p005 001810 1 rebuild kit 903 125341 49030 1 diaphragm 904 125340 51030 1 gasket diaphragm 906 125338 13930 1 pin metering arm 907 125323 42030 1 lever metering 908 125322 11520 1 spring coil 909 125337 06960 1 valve inlet needle 912 125326 42030 1 strainer 913 125312 12820 1 diaphragm fuel pump 914 125325 13310 1 gasket pump 929 125345 15130 1 plug welch 15
- Key lv part number q ty description remarks 15
- Srm 2305si 10 repair kit 15
- Parts number key no parts number key no parts number key no 16
- Parts number key no parts number key no parts number key no 17
- No 4 042 640441 18
