8. Once you have secured the rails and PSU mount, the chassis should now look similar to Figure 22.

2.6 M

OTHERBOARD

NSTALLATION

Before proceeding:

• Check the manual for your CPU cooler to find out if there are steps you must do before installing the motherboard

• Make sure you have the correct I/O panel for your motherboard (Figure 23). If the panel provided with the

chassis isn’t suitable, please contact your motherboard manufacturer for the correct I/O panel.

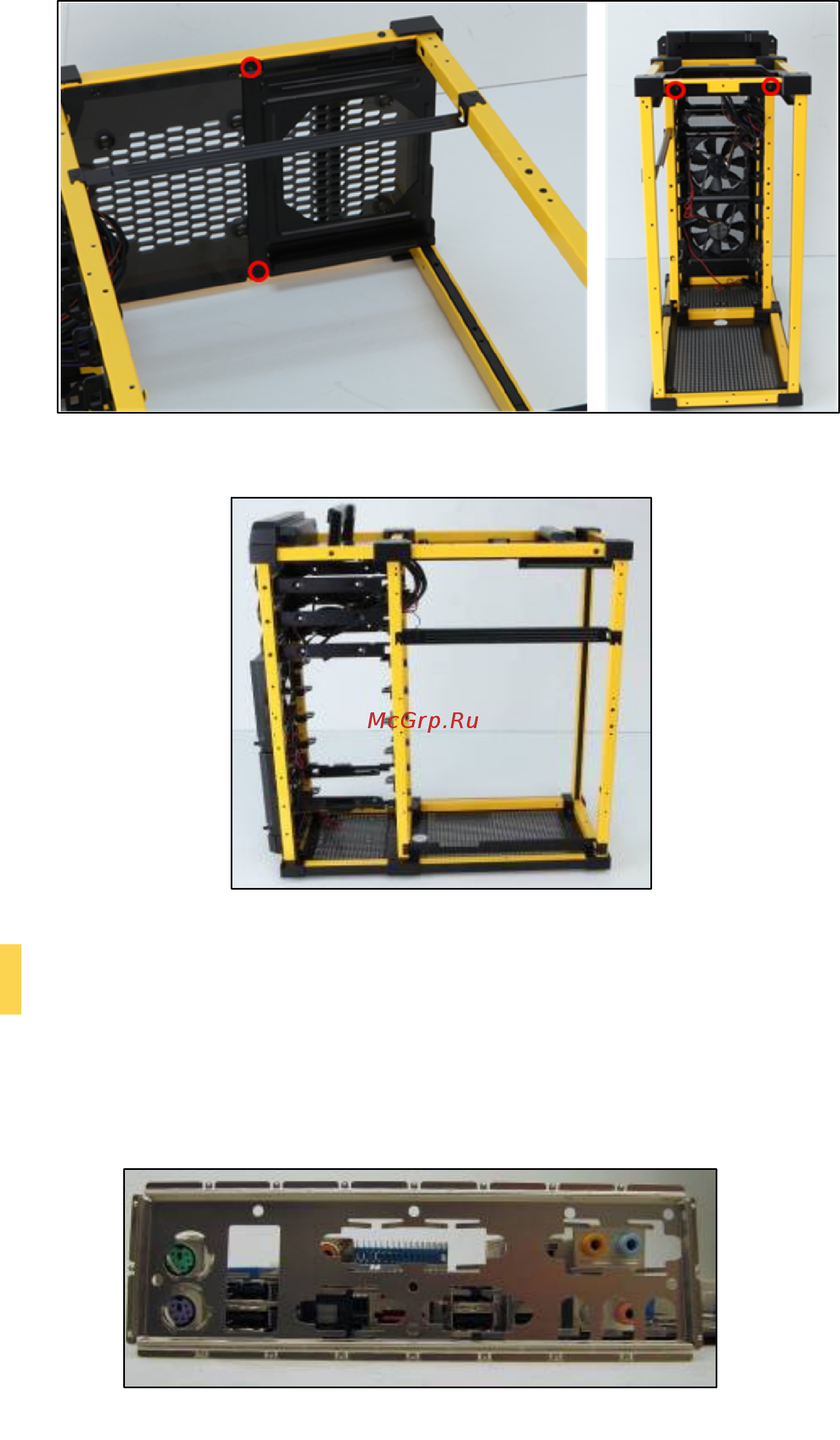

Figure 21 – PSU mount screw locations

Figure 22

Figure 23 – Make sure you have the correct I/O panel. This

mismatched I/O panel can cause difficulties down the road.
