Antec LanBoy Air Blue [10/27] Note the next two sections cover installing 3 and 5 5 drives in their default locations with 5 5

2.2 I

NTERNAL

3.5”

EVICE

NSTALLATION

The LanBoy Air utilizes Antec’s revolutionary AirMount™ suspension HDD mounting system. This system suspends

hard drives in the drive bays, reducing vibration and subsequent noise. To mount drives using AirMount™:

1. Using four supplied AirMount™ screws (refer to section 1.3) and two AirMount™ mounting brackets (two are

preinstalled in the case, additional brackets are included in a box inside the case), attach the hard drive

mounting brackets to your hard drive, orienting them so that the bottom of the bracket is flush with the

bottom of the hard drive (Figure 4).

2. Determine the horizontal orientation of the drive you wish to use, and attach the mounting hooks to the

attachment openings closest to the edges of the drive (Figure 5, Figure 6).

3. Mount any other 3.5” HDD devices accordingly.

Note: The next two sections cover installing 3.5” and 5.25” drives in their default locations, with 5.25”

drives on top and 3.5” drives below them. The front fan mounts and drive bay covers can be

removed and relocated to accommodate a number of different mounting configurations.

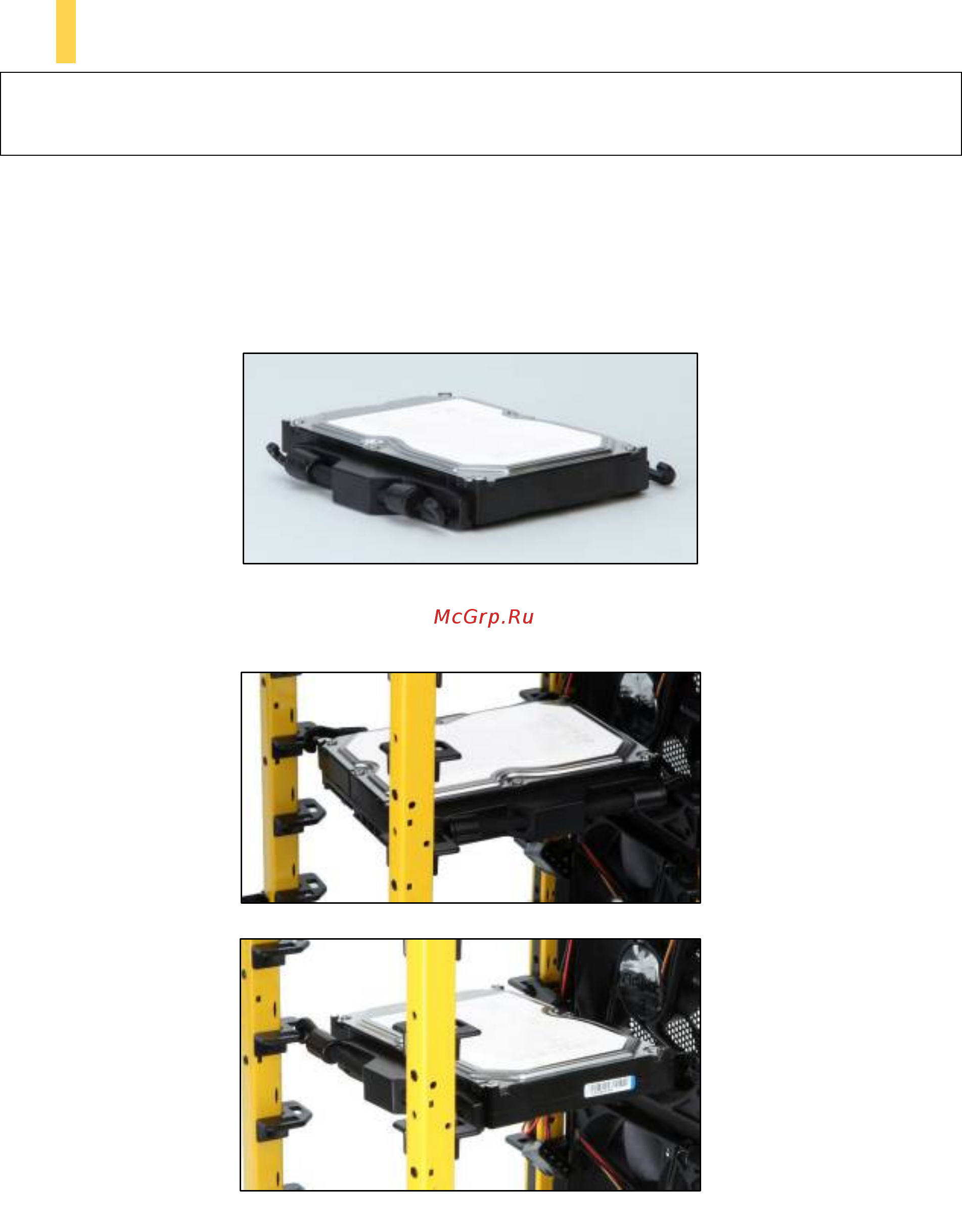

Figure 5 – Forward-facing 3.5” drive

Figure 6 – Sideways-facing 3.5” drive

Figure 4 – AirMount™ bracket orientation
