2.3

XTERNAL

5.25”

EVICE

NSTALLATION

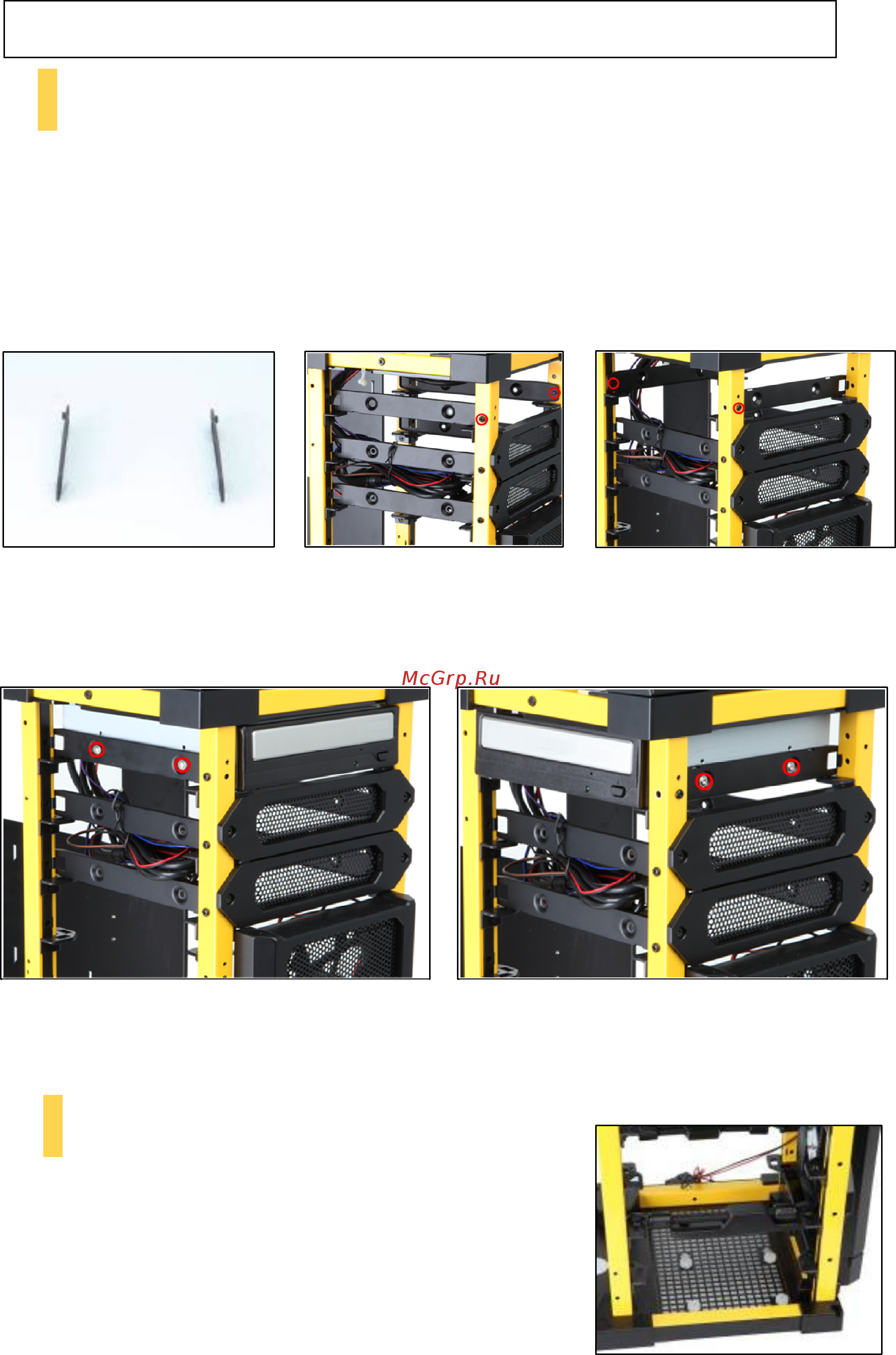

There are three externally accessible 5.25” drive bays. Drives can be mounted in three possible horizontal orientations.

1. Unscrew and remove the drive bay cover in front of the drive bay in which you will be installing a drive. You

will need to temporarily remove this cover even if you mounting a sideways-facing drive because you will need

access to secure screws to the side of the drive.

2. Slide the mounting rails into the chassis, with the metal tabs pointing outward and towards the back (Figure 7).

Secure the rails to the chassis with the provided screws. Make sure to install the mounting rails based on the

orientation you would like to use. (Figure 8, Figure 9).

3. Slide the drive into the drive bay, and secure it to the mounting rails using four 5.25 external mounting screws

(Figure 10, Figure 11).

4. Mount any other 5.25” devices accordingly.

2.4 I

NTERNAL

2.5”

EVICE

NSTALLATION

The bottom of the LanBoy Air can accommodate up to two 2.5” SSD

drives. To mount and install these drives:

Figure 7 – Insert 5.25” drive rails

with tabs facing out

Figure 8 – Forward-facing rail

orientation

Figure 9 – Sideways-facing rail

orientation

Figure 10 – Forward-facing drive Figure 11 – Sideways-facing drive

Note:

If you are transporting the LanBoy Air, it is recommended that you remove any hard drives

prior

transport.
