1. Insert the rubber grommets into the mounting holes, with the larger portion of the grommet facing the top of

the case (Figure 12).

2. Lay the LanBoy Air on its side, so you can access the outside

bottom of the chassis.

3. Align the 2.5” drive with the mounting holes on the bottom of the

chassis with the back of the drive facing the back of the chassis

(Figure 13).

4. Secure the drive to the bottom of the chassis using the 2.5” drive

mounting screws (Figure 13).

2.5

EMOVING AND

ELOCATING THE

OTHERBOARD

/PSU

Both the motherboard tray and PSU mount are installed on rails inside the chassis and can be removed to make

motherboard and PSU installation easier. In addition, the rails themselves can be relocated to accommodate top-

mounting the PSU.

Removing the PSU Mount

1. Place the chassis upright, with the front facing

right.

2. Remove the left larger panel.

3. Remove the thumb screw and pull the PSU tray

out and put it aside

(Figure 14, Figure 15).

Removing the Motherboard Tray

1. Remove the five rear screws (Figure 16) and remove the back panel.

2. Remove the three cable management ties attached to the back of the motherboard tray.

3. Slide the motherboard tray towards the back, and out of the chassis (Figure 17).

Note:

If you do not need to change the location of the motherboard/

PSU, you can now go directly to

section 2.6 for motherboard installation.

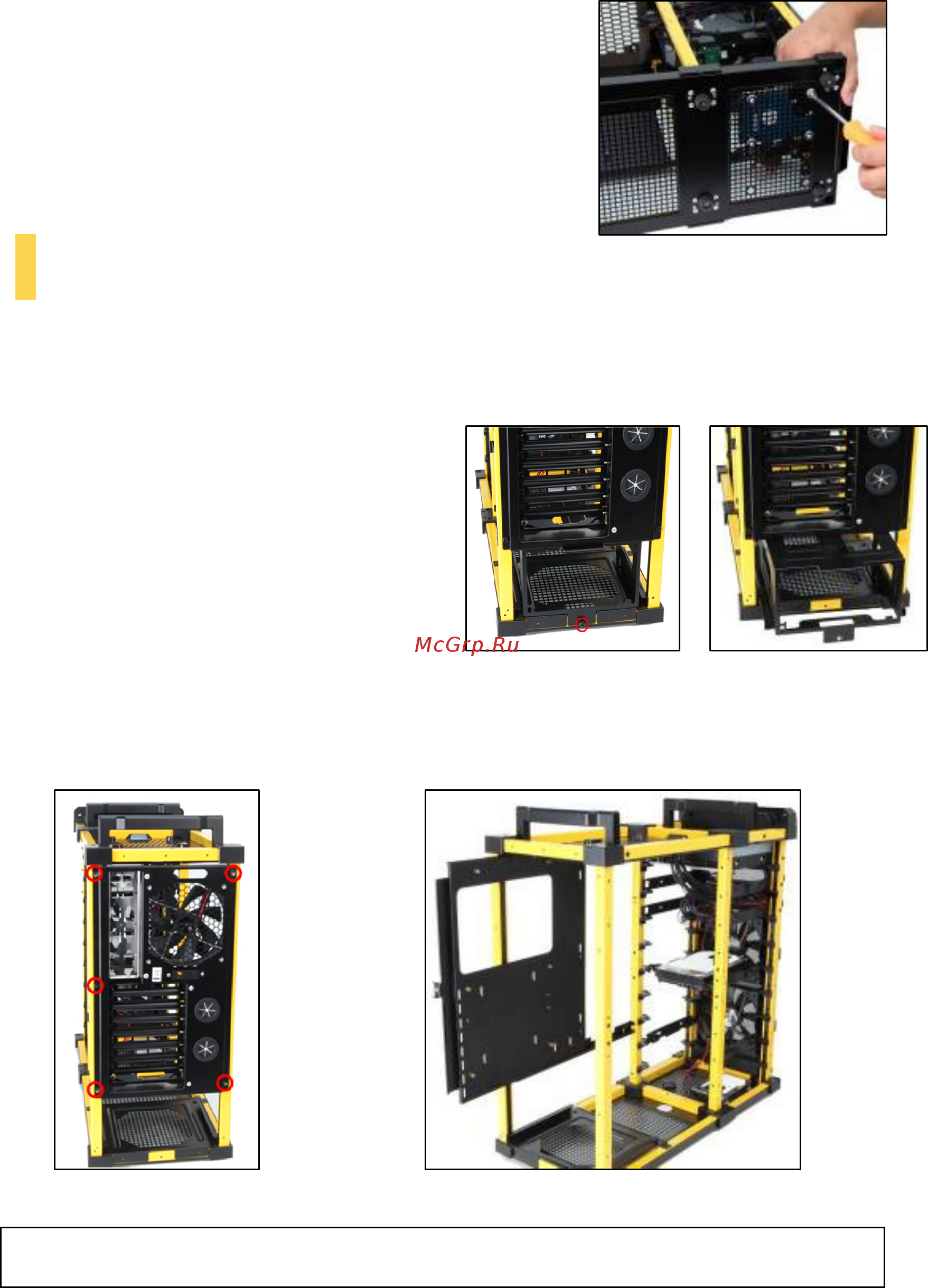

Figure 12 – 2.5” drive mounting

grommets

Figure 13 – Securing the 2.5” drive

Figure 14 Figure 15

Figure 16 – Back panel

screws

Figure 17 – Removing the motherboard tray
