9. Slide the motherboard tray halfway into the chassis along the rails. Connect your drive bay devices to the

motherboard and then slide the motherboard tray the rest of the way into the chassis. Connecting devices when

the motherboard tray is halfway in gives you more space to work with when you make the connections.

10. Replace the rear panel and secure it using the original five screws.

2.7 P

OWER

UPPLY

NSTALLATION

1. Slide the PSU into the PSU mount and attach the PSU to the PSU mount with the screws provided (Figure

27)

Insert the PSU mount with PSU into the chassis along the rails. Secure the PSU mount with the thumbscrew.

Connect the PSU connectors to your devices.

Note: Power supplies with fans on the bottom of the power supply will need to be mounted so that the fan

is facing the top of the chassis, unless the power supply is installed in the top of the chassis. The

LanBoy Air provides mounting holes for power supplies with standard mounting layouts to be

installed right side up or upside down.

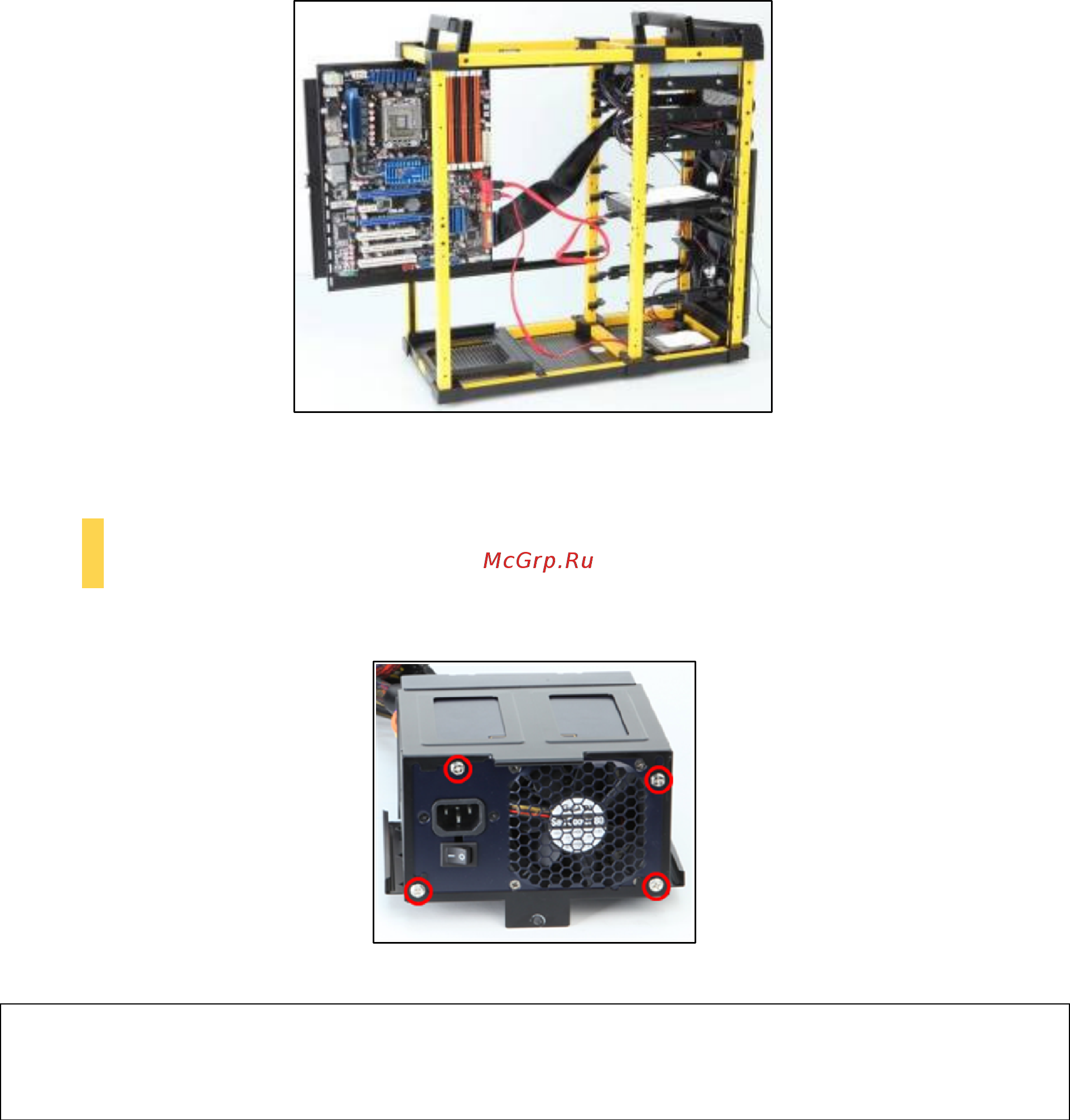

Figure 26 – Reinserting the motherboard tray

Figure 27 – PSU in mount with

screws identified
