3.4

RONT

ANEL

ROUND

IRE

NSTALLATION

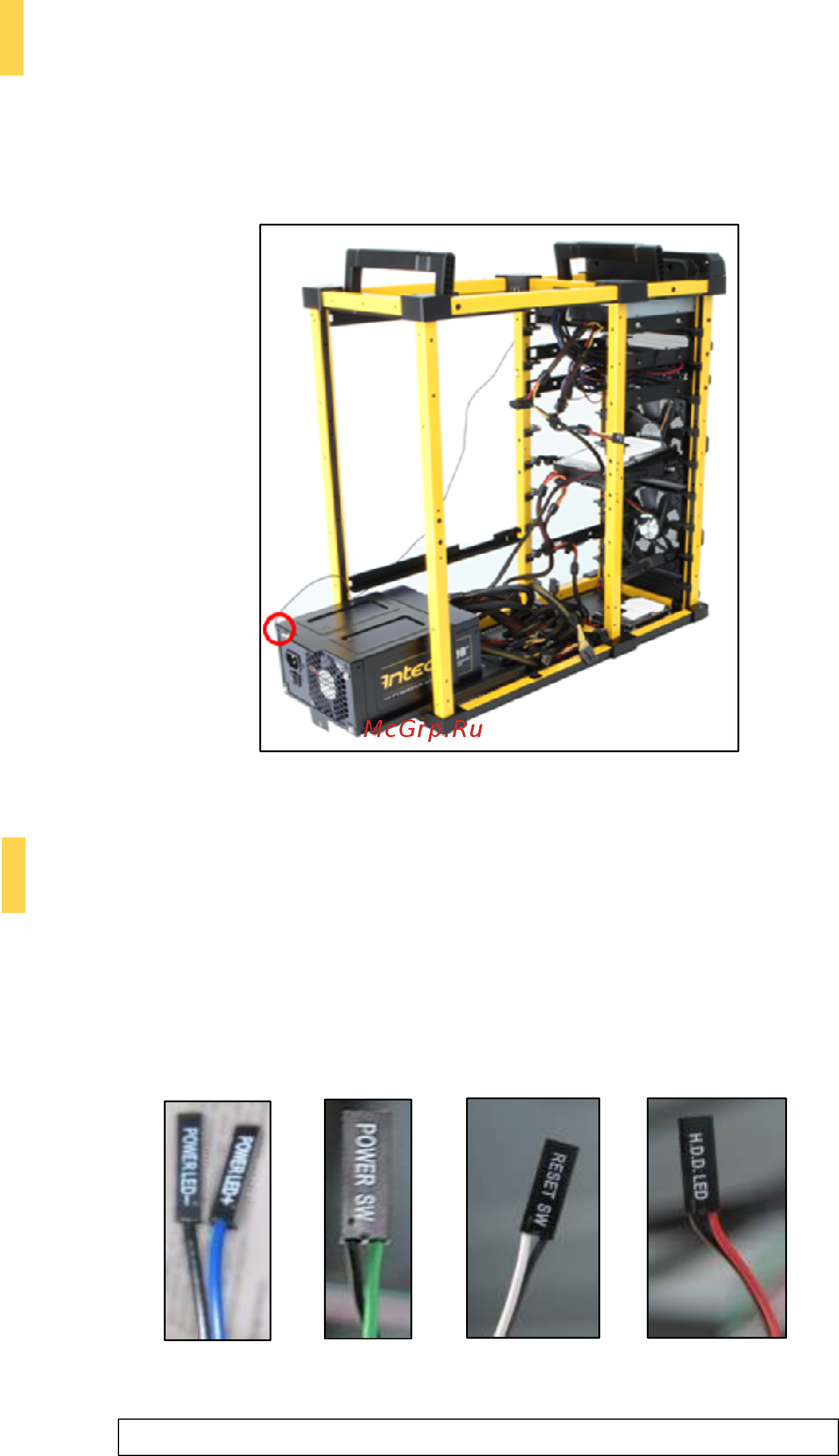

The LanBoy Air includes a grounding wire for the front panel ports. This wire should be attached to the chassis using

one of the PSU screws, as depicted in Figure 29.

3.5

OWER

WITCH

ESET

WITCH

ARD

ISK

RIVE

LED

ONNECTORS

Connected to your front panel are LED leads for power and HDD activity, as well as switch leads for the power and

reset buttons. Attach these to the corresponding connectors on your motherboard. Consult your motherboard manual

for specific pin header locations. For LEDs, colored wires are positive ( + ). White or black wires are negative ( – ). If

the LED does not light up when the system is powered on, try reversing the connection. For more information on

connecting LEDs to your motherboard, see your motherboard user’s manual.

Note: Polarity (positive and negative) does not matter for switches.

Figure 29 – Attaching the front panel ground wire

Figure 30 – Front panel leads
