5
1.1
G

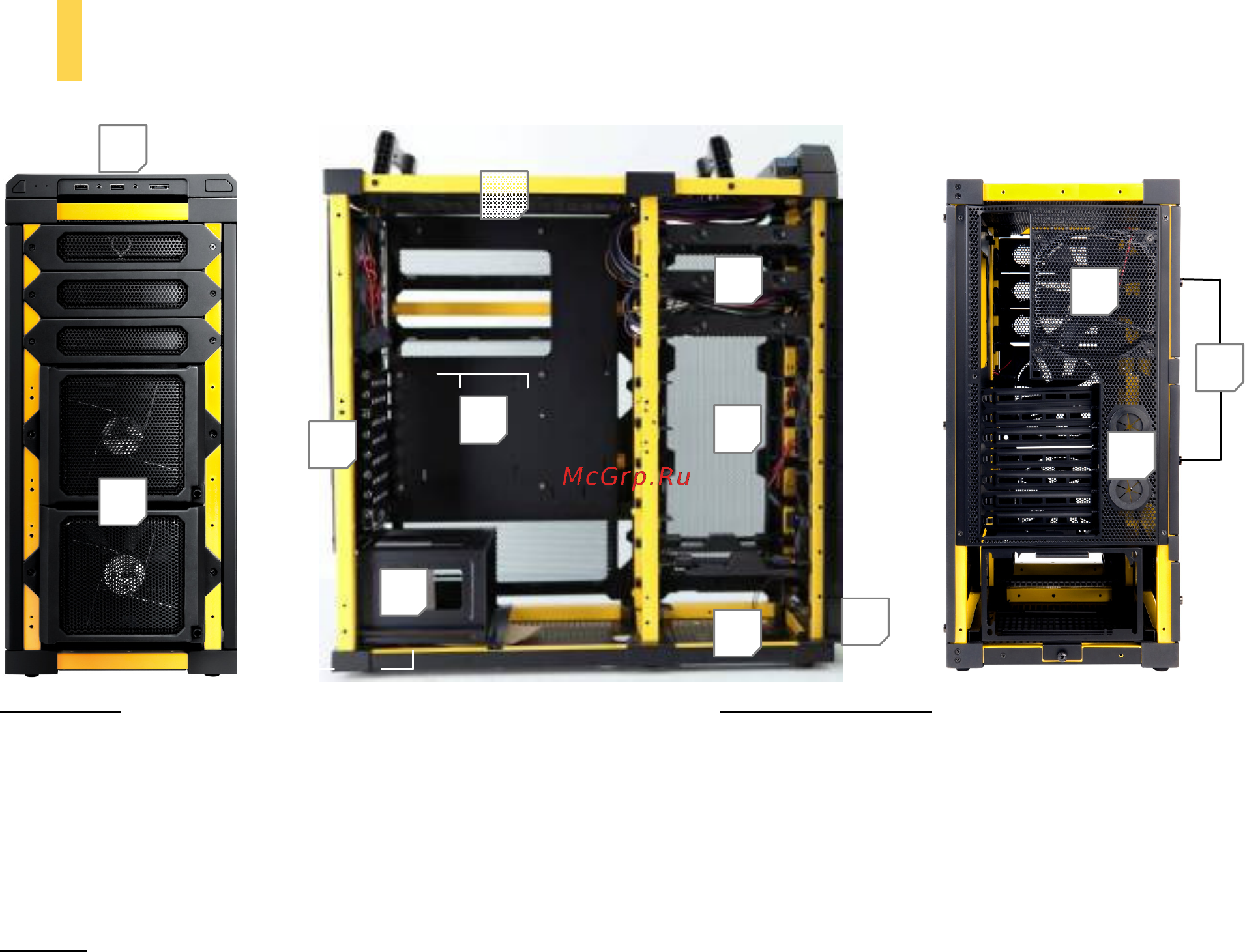

ETTING TO KNOW YOUR CHASSIS
Drive Bays
Hardware Mounts
1 5.25" drive bays default location
10 Removable motherboard tray
2 3.5" AirMount™ drive bays default location
11 Removable power supply mount
3 2.5" internal SSD bay
12 Front I/O ports
4 Built-in toolbox for spare screws/parts
13 8 expansion slots
Cooling
5 2 x 120 mm top fan mounts and water cooling radiator fitting
6 1 x 120 mm rear TwoCool™ LED fan
7 2 x 120 mm front LED fans
8 2 x 120 mm TwoCool™ side LED fans
9 Water cooling grommets
4
10
7
8
1
2
6
3
5
1
1
1
2
9
1
3
