TSC P200 [16/48] Loading the ribbon
![TSC P200 [16/48] Loading the ribbon](/views2/1244110/page16/bg10.png)
4

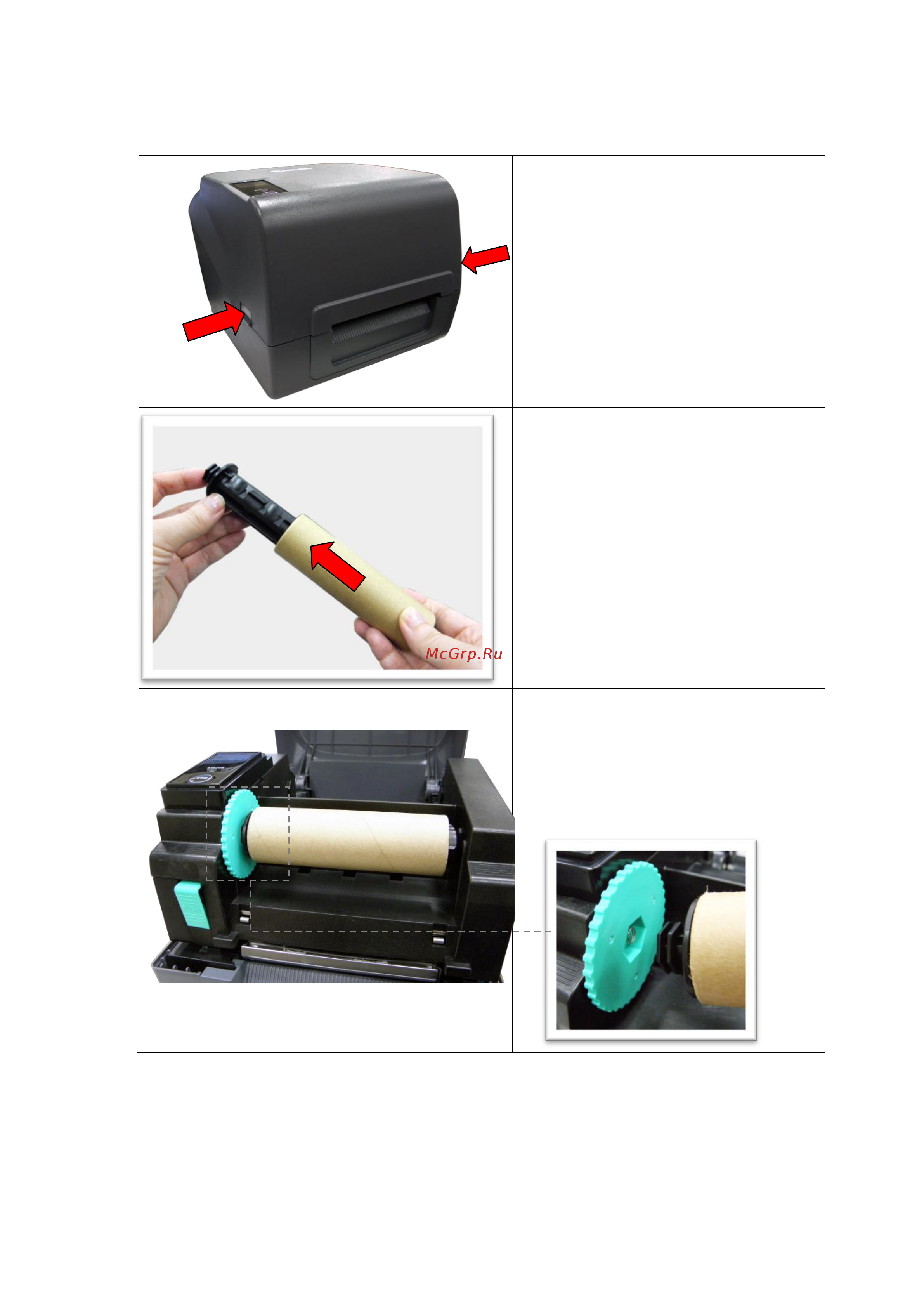

3.2 Loading the Ribbon
1. Open the printer top cover by
pressing the top cover open tabs
located on each side of the printer.
2. Insert the paper core to the ribbon
rewind spindle.
3. Insert the left side of ribbon rewind
spindle to the ribbon rewind hub
first then insert the right side of
ribbon rewind spindle to the hole at
the right side of ribbon mechanism.
