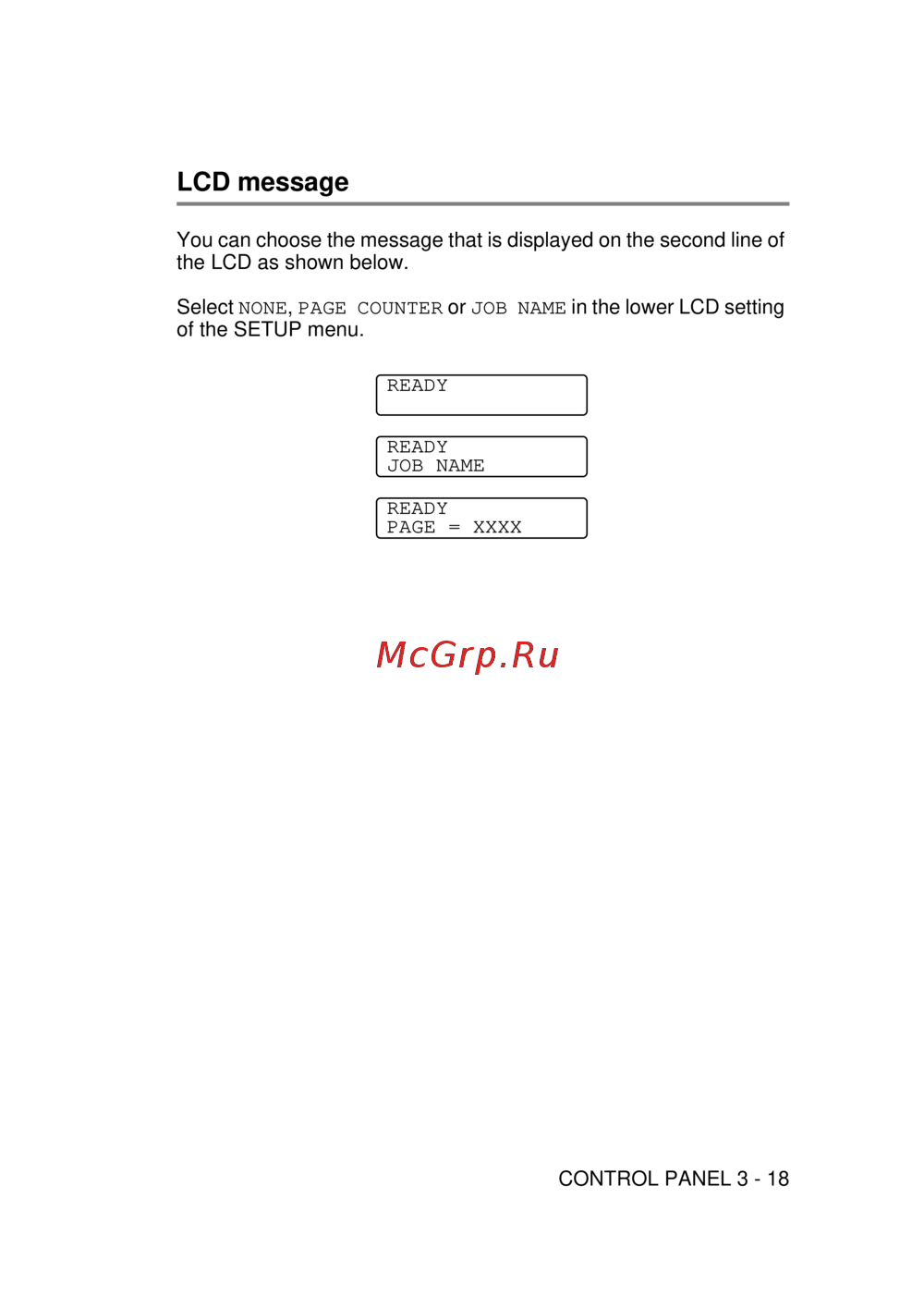

CONTROL PANEL 3 - 18
HL7050_US_UG_FM5.5
LCD message
You can choose the message that is displayed on the second line of
the LCD as shown below.
Select NONE, PAGE COUNTER or JOB NAME in the lower LCD setting
of the SETUP menu.
READY
READY
JOB NAME
READY
PAGE = XXXX
