3 - 27 CONTROL PANEL
HL7050_US_UG_FM5.5

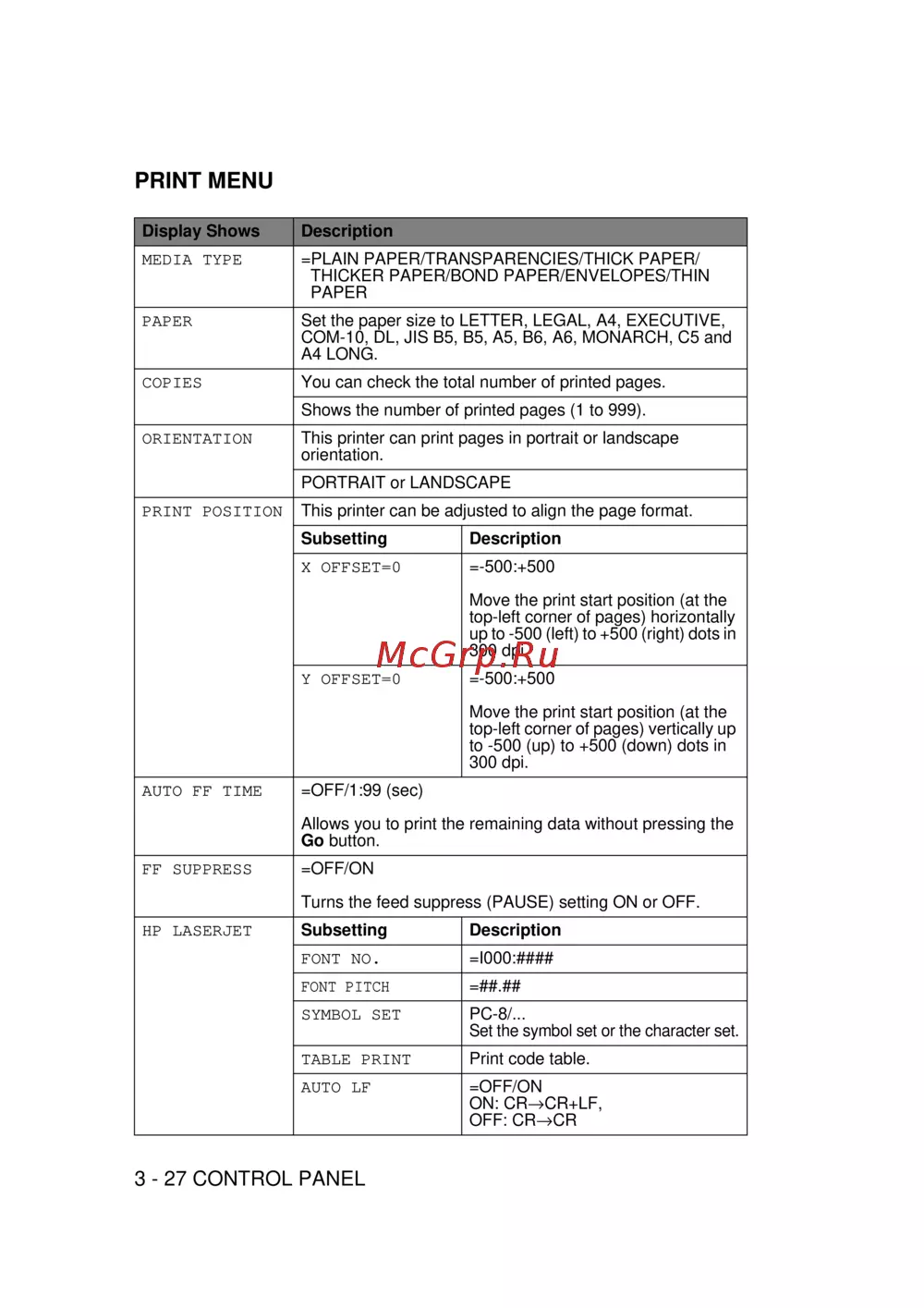

PRINT MENU
Display Shows Description
MEDIA TYPE =PLAIN PAPER/TRANSPARENCIES/THICK PAPER/
THICKER PAPER/BOND PAPER/ENVELOPES/THIN
PAPER
PAPER Set the paper size to LETTER, LEGAL, A4, EXECUTIVE,
COM-10, DL, JIS B5, B5, A5, B6, A6, MONARCH, C5 and
A4 LONG.
COPIES You can check the total number of printed pages.
Shows the number of printed pages (1 to 999).
ORIENTATION This printer can print pages in portrait or landscape
orientation.
PORTRAIT or LANDSCAPE
PRINT POSITION This printer can be adjusted to align the page format.
Subsetting Description
X OFFSET=0 =-500:+500
Move the print start position (at the
top-left corner of pages) horizontally
up to -500 (left) to +500 (right) dots in
300 dpi.
Y OFFSET=0 =-500:+500
Move the print start position (at the
top-left corner of pages) vertically up
to -500 (up) to +500 (down) dots in
300 dpi.
AUTO FF TIME =OFF/1:99 (sec)
Allows you to print the remaining data without pressing the
Go button.
FF SUPPRESS =OFF/ON
Turns the feed suppress (PAUSE) setting ON or OFF.
HP LASERJET Subsetting Description
FONT NO. =I000:####
FONT PITCH
=##.##
SYMBOL SET PC-8/...
Set the symbol set or the character set.
TABLE PRINT Print code table.
AUTO LF =OFF/ON
ON: CR→CR+LF,
OFF: CR→CR
