4 - 20 OPTIONS
HL7050_US_UG_FM5.5
7

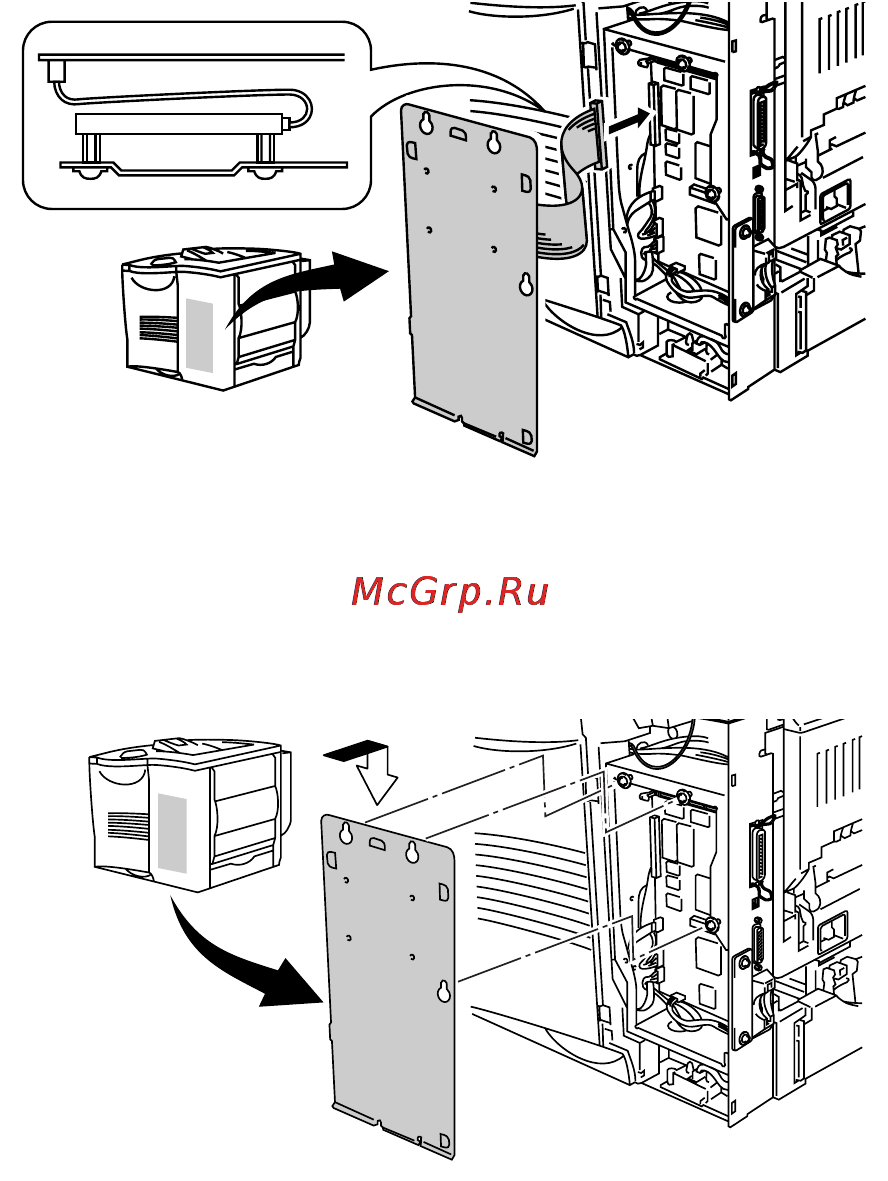

Connect the flat cable to the main controller board.
Figure 4-21
8
Secure the metal plate with the three screws.
Figure 4-22
9
Put the side cover back on.
10
Reconnect the interface cable to your printer.
Plug the printer back in, and then turn on the printer power
switch.
11
Format the HDD from the control panel. See Chapter 3 for
details.
