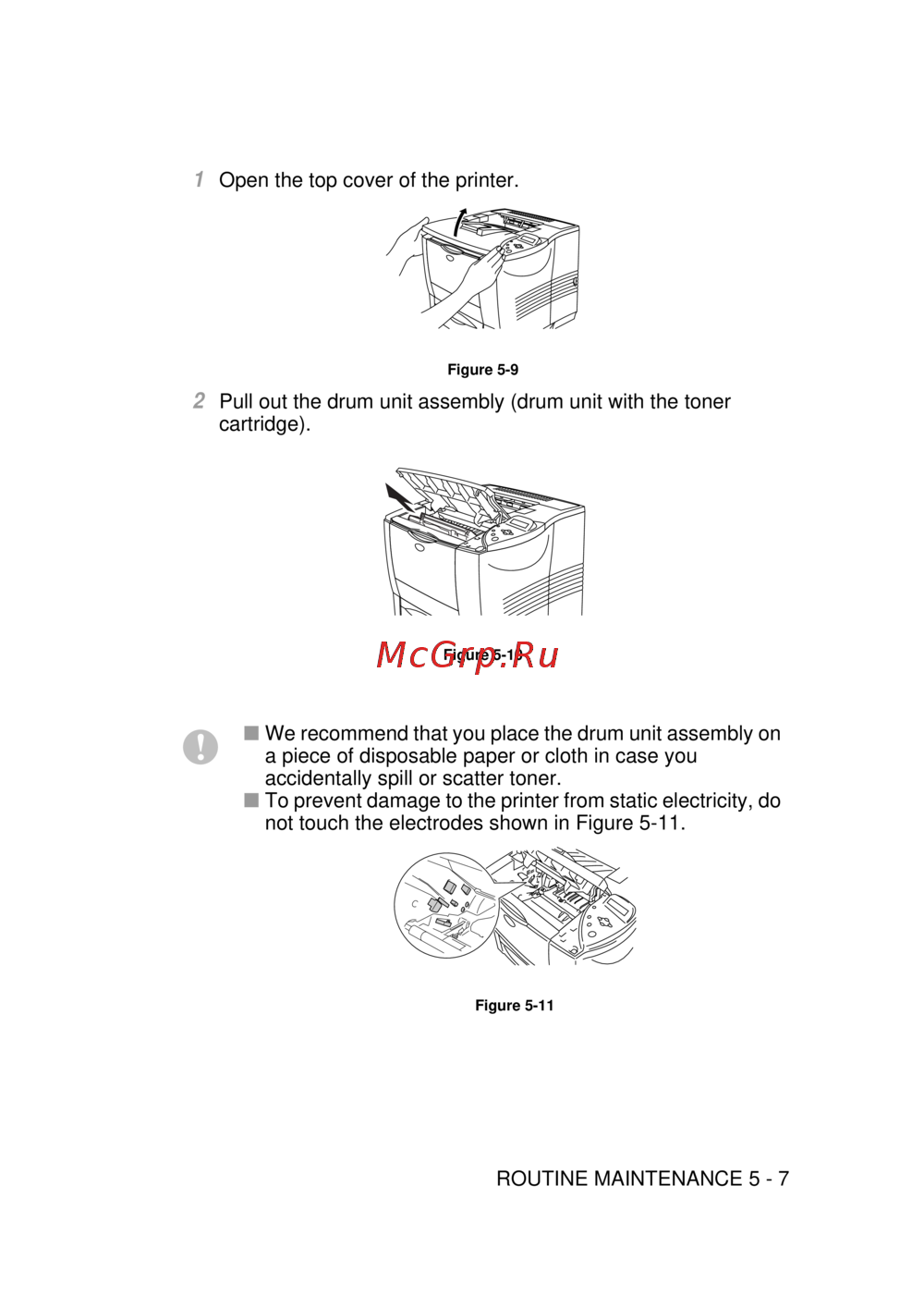

ROUTINE MAINTENANCE 5 - 7
HL7050_US_UG_FM5.5
1

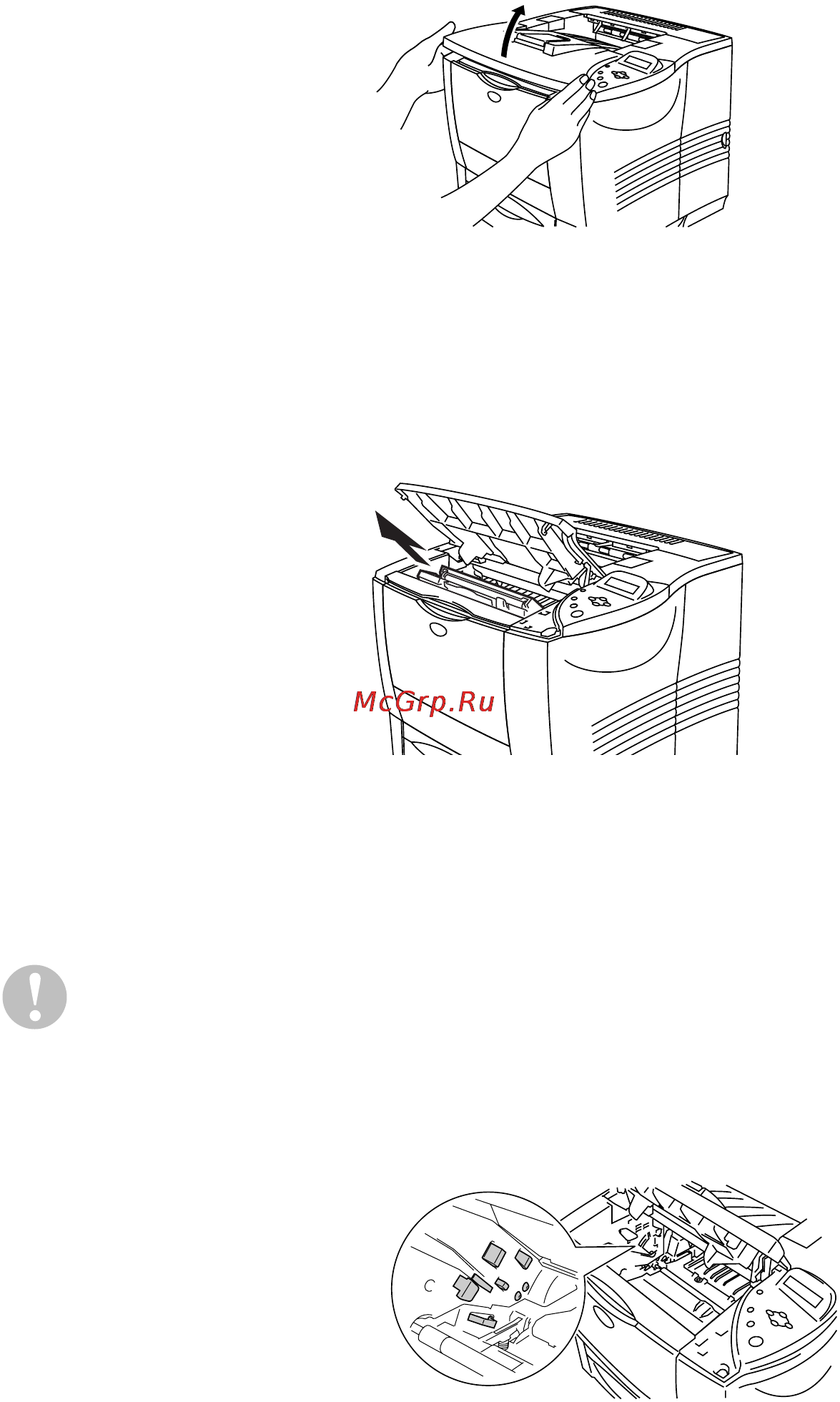

Open the top cover of the printer.
Figure 5-9
2
Pull out the drum unit assembly (drum unit with the toner
cartridge).
Figure 5-10
■ We recommend that you place the drum unit assembly on
a piece of disposable paper or cloth in case you
accidentally spill or scatter toner.
■ To prevent damage to the printer from static electricity, do
not touch the electrodes shown in Figure 5-11.
Figure 5-11
