TROUBLESHOOTING 6 - 18
HL7050_US_UG_FM5.5
2

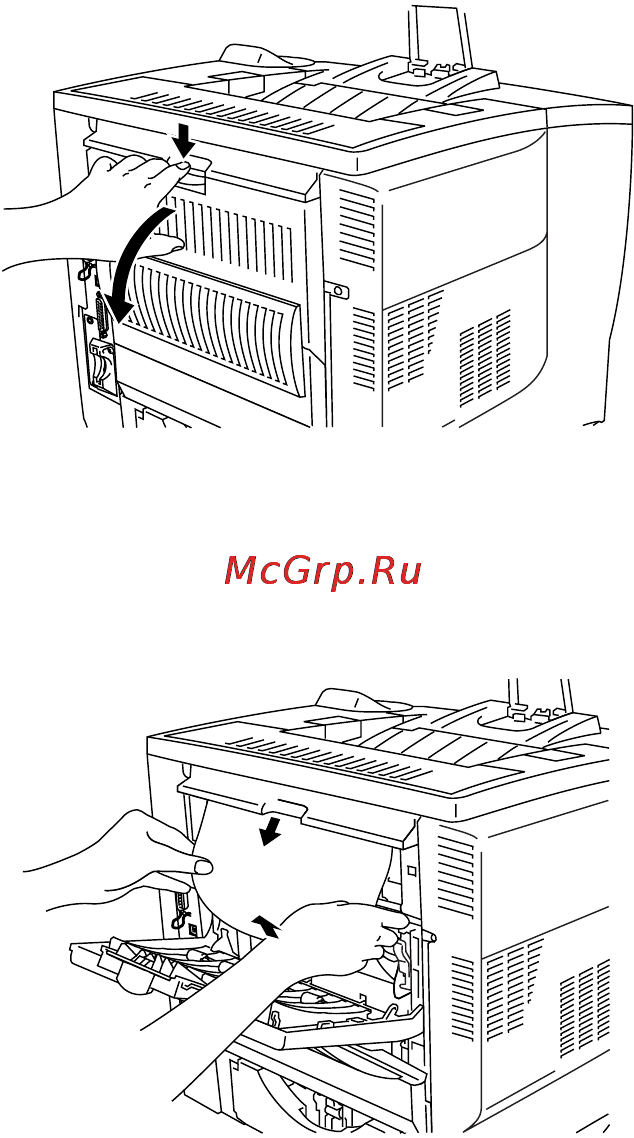

Open the face-up output tray.
Figure 6-13
3
Use both hands to slowly pull out the jammed paper.
Figure 6-14
4
Close the face-up output tray.
5
Open the top cover of the printer, and then close it to resume
printing.
