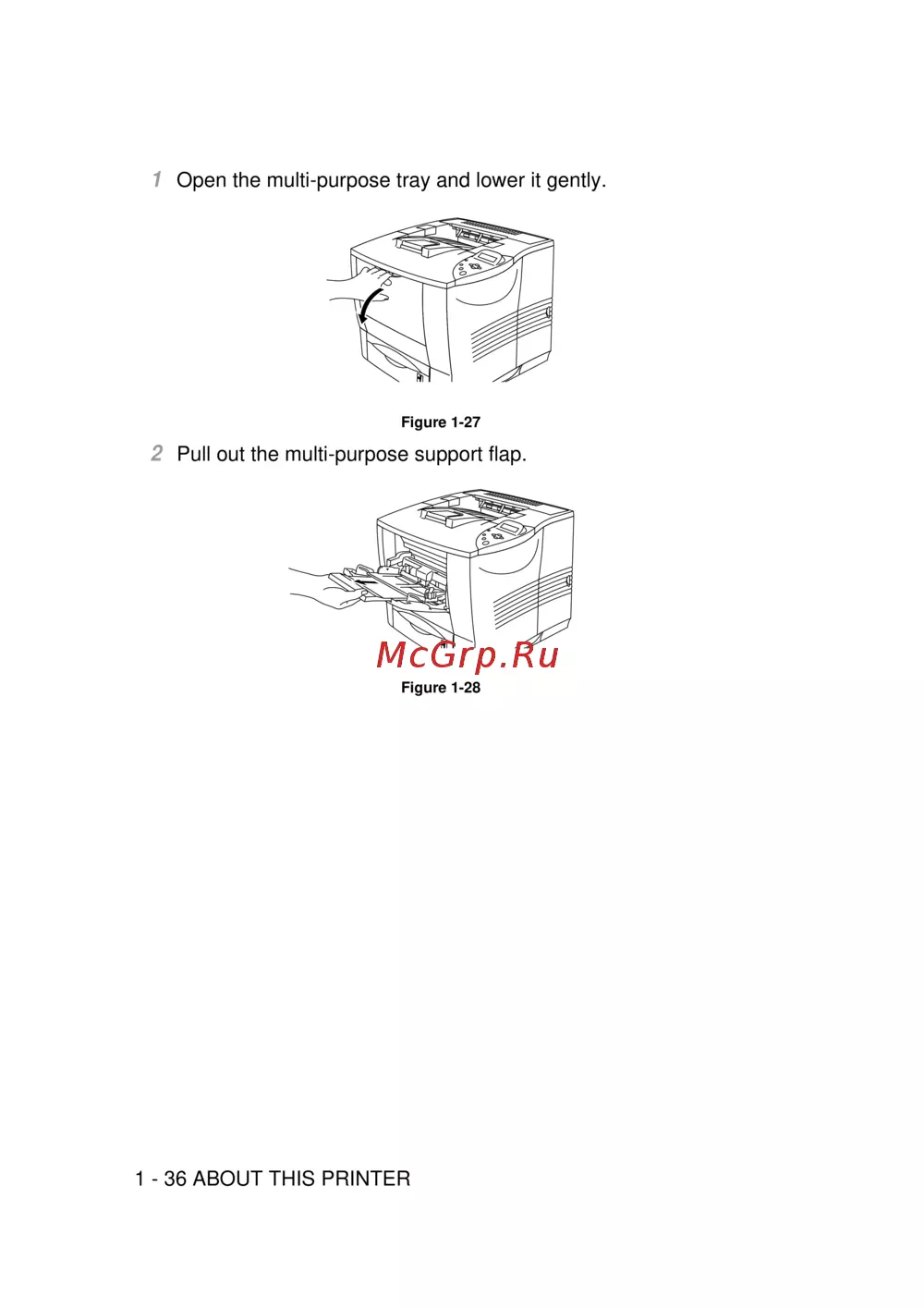

1 - 36 ABOUT THIS PRINTER
HL7050_US_UG_FM5.5
1

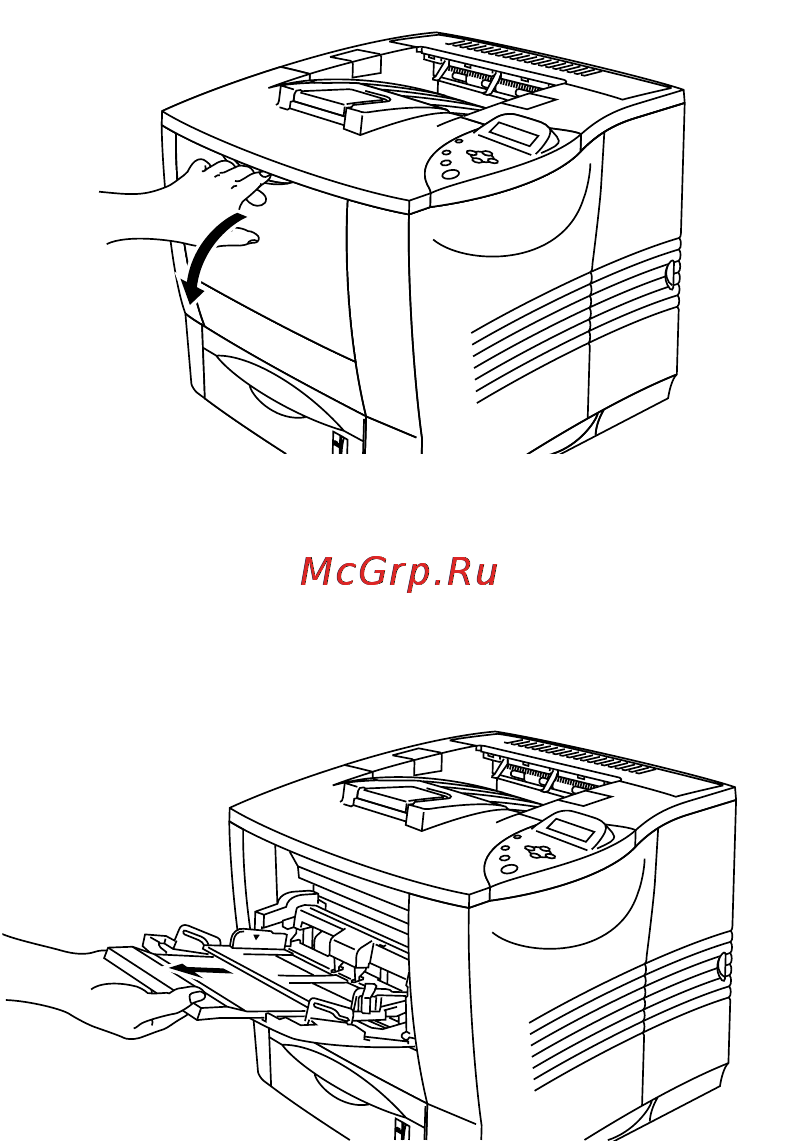

Open the multi-purpose tray and lower it gently.
Figure 1-27
2
Pull out the multi-purpose support flap.
Figure 1-28
