Wacker Neuson BS 30, 6’’ 5216 [26/32] Torque wrench settings
Макгруп McGrp.ru

Wacker Neuson BS 30, 6’’ 5216 [26/32] Torque wrench settings

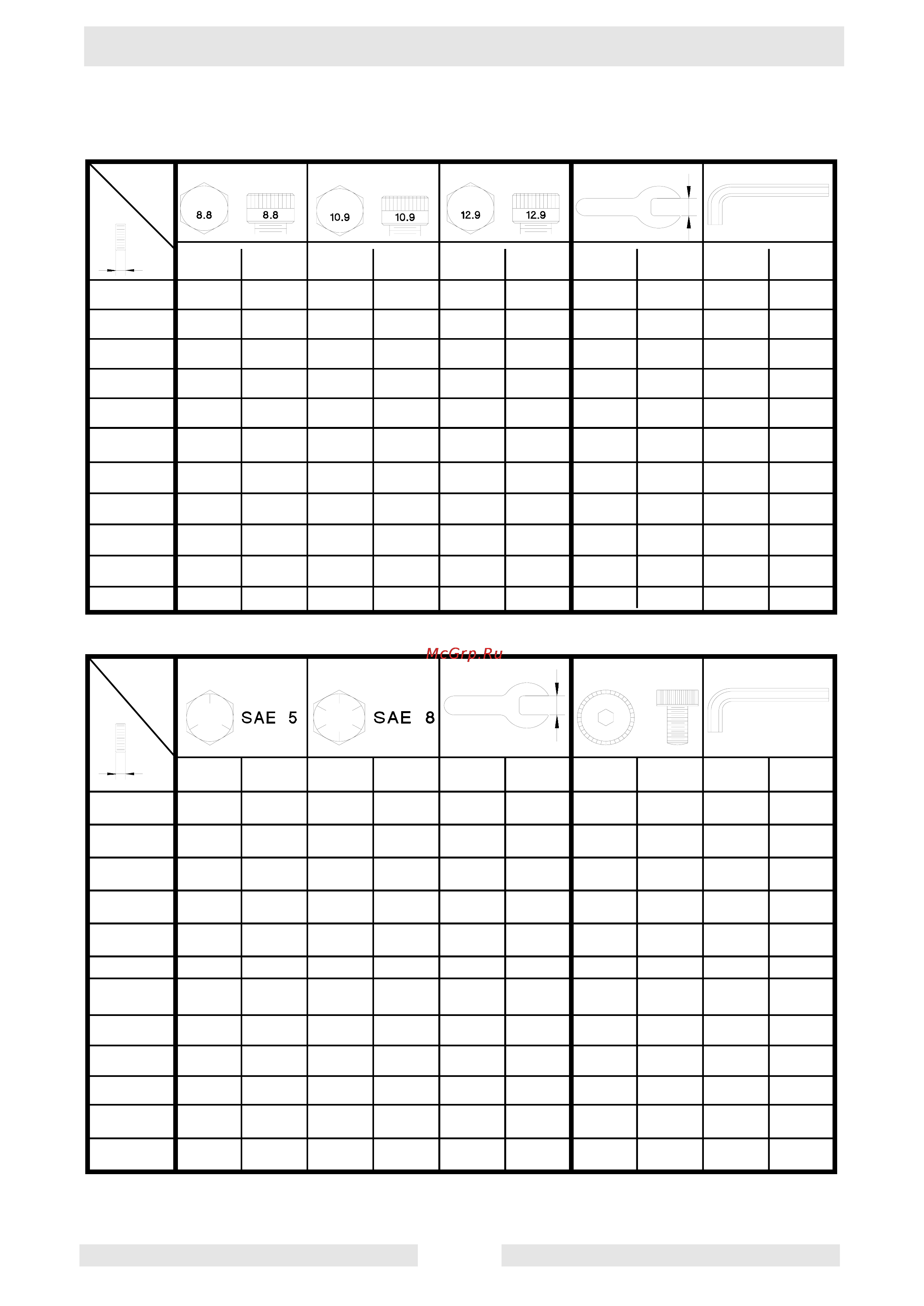

Превью страниц Страница 26 / 32
Wacker Neuson BS 30, 6’’ 5216 [26/32] Torque wrench settings
SK00004GB
24
Type
ft lb Nm ft lb Nm ft lb Nm inch Met. inch Met.
M3 * 11 1.2 *14 1.6 *19 2.1 7/32 5.5 - 2.5
M4 *26 2.9 *36 4.1 *43 4.9 9/32 7 - 3
M5 *53 6.0 6 8.5 7 10 5/16 8 - 4
M6 71010141317 -10 - 5
M8 18 25 26 35 30 41 1/2 13 - 6
M10 36 49 51 69 61 83 11/16 17 - 8
M12 63 86 88 120 107 145 3/4 19 - 10
M14 99 135 140 190 169 230 7/8 22 - 12
M16 155 210 217 295 262 355 15/16 24 - 14
M18 214 290 298 405 357 485 1-1/16 27 - 14
M20 302 410 427 580 508 690 1-1/4 30 - 17
* = in.lb.
Type
ft lb Nm ft lb Nm inch Met. ft lb Nm inch Met.
No. 4 *6 0.7 *9 1.0 1/4 - *12 1.4 3/32 -
No. 6 *12 1.4 *17 1.9 5/16 8 *21 2.4 7/64 -
No. 8 *22 2.5 *31 3.5 11/32 9 *42 4.7 9/64 -
No. 10 *32 3.6 *45 5.1 3/8 - *60 6.8 5/32 -
1/4 6 8 9 12 7/16 - 12 16 3/16 -
5/16 13 18 19 26 1/2 13 24 33 1/4 -
3/8 23 31 33 45 9/16 - 43 58 5/16 -
7/16 37 50 52 71 5/8 16 69 94 3/8 -
1/2 57 77 80 109 3/4 19 105 142 3/8 -
9/16 82 111 115 156 13/16 - 158 214 - -
5/8 112 152 159 216 15/16 24 195 265 1/2 -
3/4 200 271 282 383 1-1/8 - 353 479 5/8 -
1 ft.lb. = 1.357 Nm 1 inch = 25.4 mm
TORQUE WRENCH SETTINGS
