Electric ceiling heater

6.3 Installing the infrared heater on a portable rack

Table 3

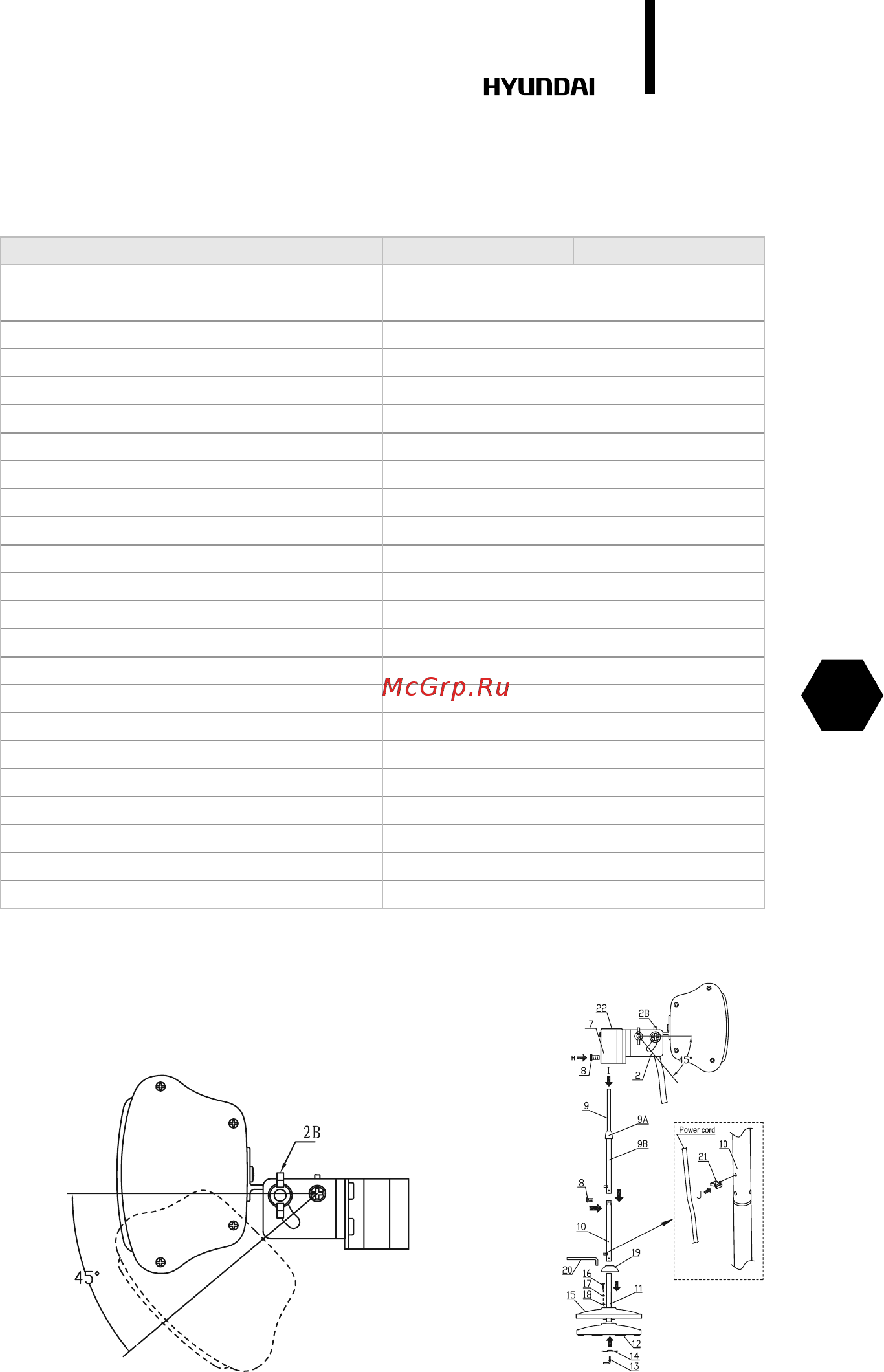

On Fig. 6, 7, 8, 9 shows stepwise instructions on assembly and installation of infrared heater

on the mobile rack.

Fig. 8

Series Parts name Specification Qty

1 Screw M6x20 1

2 Bracket set Aluminum 1

3 Expansion bolt M6x60 2

4 Hanger Steel 1

5 Bolt M8х60 1

5A Nut M8 1

6 Nut M6 4

7 Bracket 3 Aluminum 1

8 Bolt M6х10 12

9 Telescopic tube set Steel 1

10 Telescopic tube Steel 1

11 Telescopic tube Steel 1

12 Base Plastic 1

13 M8 bolt L shpae 1

14 Fixing plate Steel 1

15 Base cover Steel 1

16 Bolt M6x50 3

17 Spring washer Ф6.2хФ8.2х1 3

18 Washer Ф6.2хФ14х1 3

19 Decorative cover Steel 1

20 Hex wrench Steel 1

21 wire holder PA 2

22 Telescopic tube cover Silicone 1

Fig. 9
