Dell E2216HV [11/60] Pin assignments

About Your Monitor 11

NOTE: Dell monitors are Energy Star certified in all regions except for the following:

E1916HV, E1916HL and E2016HV in Asia Pacific, E2216HV in America/ Asia Pacific.

DELL registers products in the EPEAT environmental performance rating system.

EPEAT registration varies by country. See www.epeat.net for registration status by

country.

* Zero-power consumption in OFF mode can only be achieved by disconnecting the

main cable from the monitor.

** Maximum power consumption with max luminance and contrast.

*** This document is informational only and reflects laboratory performance. Your

product may perform differently, depending on the software, components and

peripherals you ordered and shall have no obligation to update such information.

Accordingly, the customer should not rely upon this information in making

decisions about electrical tolerances or otherwise. No warranty as to accuracy or

completeness is expressed or implied.

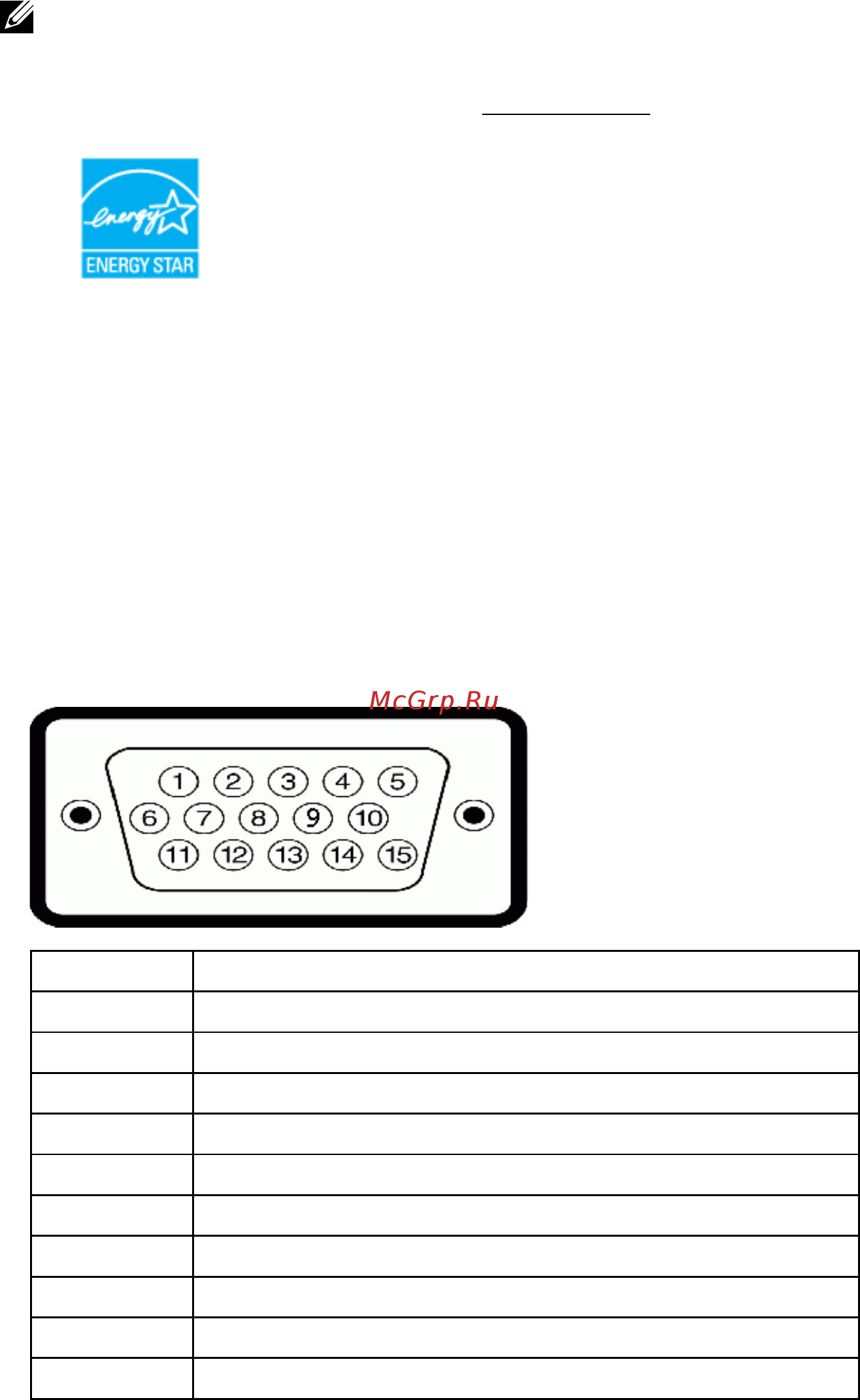

Pin Assignments

15-pin D-Sub connector

Pin Number Monitor Side of the 15-pin Side Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 GND

5 Self-test

6 GND-R

7 GND-G

8 GND-B

9 DDC +5 V

10 GND-sync
