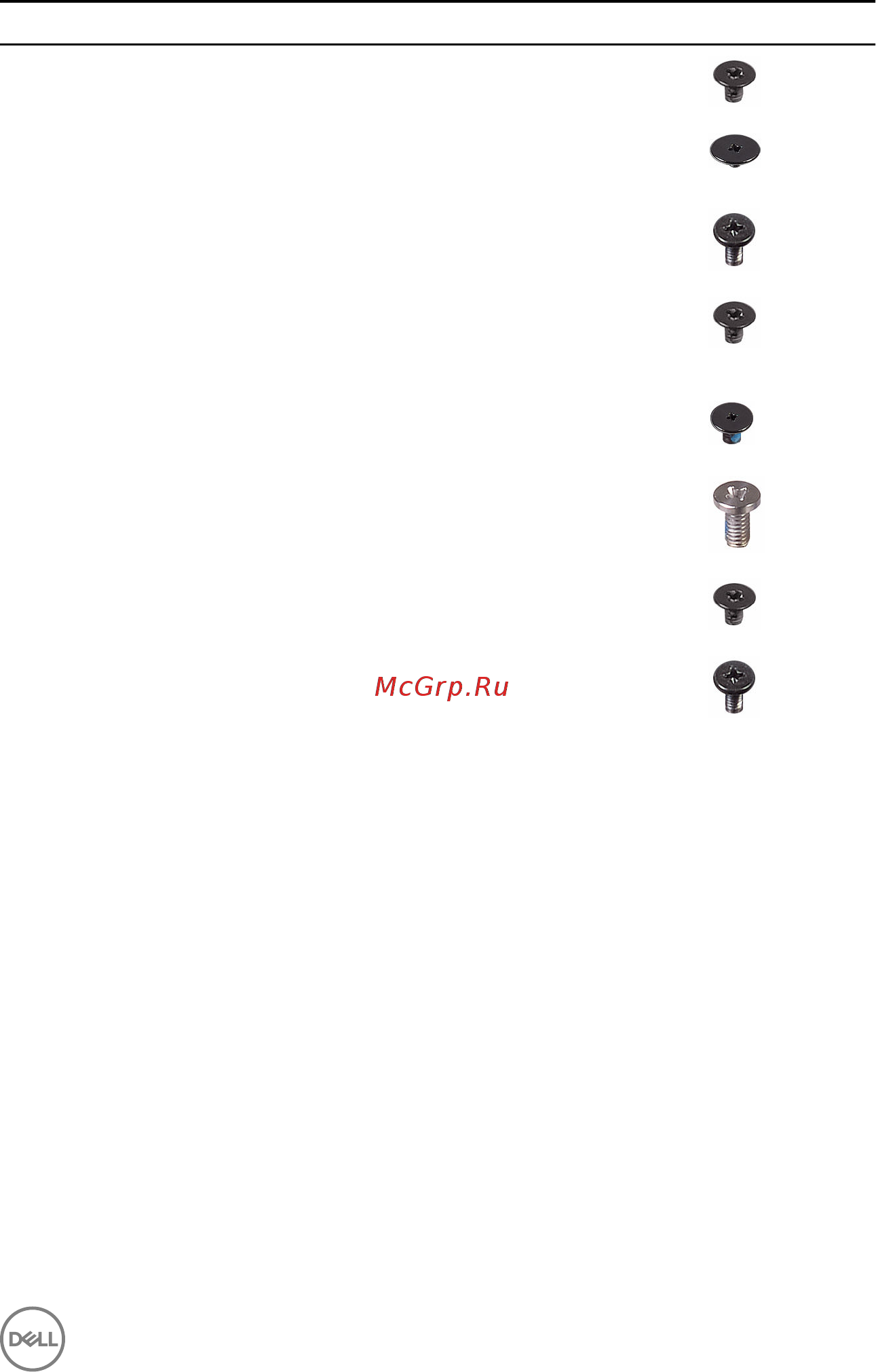

Component Secured to Screw type Quantity Screw image
Heat-sink
assembly
System board M2x3 5/4
Display-cable
bracket
System board M2x2 1
System board Palm-rest
assembly
M2x4 5
Audio
daughter-
board
System board M2x3 2
Keyboard Palm-rest
assembly
M1.6x1.5 31
Display hinges Palm-rest
assembly
M2.5x5 6
Power-adapter
port
Palm-rest
assembly
M2x3 1
Antenna
module
Display
assembly
M2x4 4
13
Содержание
- Service manual 1
- Xps 15 1
- Caution a caution indicates either potential damage to hardware or loss of data and tells you how to avoid the problem 2
- Note a note indicates important information that helps you make better use of your product 2
- Notes cautions and warnings 2
- Warning a warning indicates a potential for property damage personal injury or death 2
- After working inside your computer 4 3
- Before working inside your computer 0 3
- Contents 3
- Removing the base cover 15 3
- Removing the battery full length 22 3
- Removing the battery half length 9 3
- Replacing the base cover 18 3
- Replacing the battery half length 1 3
- Xps 15 service manual 3
- Removing the hard drive 5 4
- Removing the solid state drive full length 35 4
- Removing the solid state drive half length 1 4
- Removing the speakers 9 4
- Replacing the battery full length 24 4
- Replacing the hard drive 0 4
- Replacing the solid state drive full length 8 4
- Replacing the solid state drive half length 34 4
- Removing the fans 6 5
- Removing the heat sink assembly 50 5
- Removing the memory modules 3 5
- Removing the wireless card 42 5
- Replacing the fans 49 5
- Replacing the heat sink assembly 2 5
- Replacing the speakers 1 5
- Replacing the wireless card 44 5
- Removing the audio daughter board 4 6
- Removing the coin cell battery 7 6
- Removing the keyboard 70 6
- Removing the system board 58 6
- Replacing the audio daughter board 6 6
- Replacing the coin cell battery 69 6
- Replacing the memory modules 5 6
- Replacing the system board 2 6
- Removing the antenna cover 82 7
- Removing the display assembly 4 7
- Removing the display hinges 6 7
- Removing the power adapter port 9 7
- Replacing the antenna cover 85 7
- Replacing the display assembly 8 7
- Replacing the keyboard 3 7
- Replacing the power adapter port 1 7
- Bios overview 6 8
- Diagnostics 05 8
- Removing the antenna module 0 8
- Removing the palm rest assembly 93 8
- Replacing the antenna module 2 8
- Replacing the display hinges 9 8
- Replacing the palm rest assembly 95 8
- Getting help and contacting dell 07 9
- Before working inside your computer 10
- Before you begin 10
- Safety instructions 10
- Recommended tools 11
- Screw list 12
- After working inside your computer 14
- Procedure 15
- Removing the base cover 15
- Procedure 18
- Replacing the base cover 18
- Prerequisites 19
- Procedure 19
- Removing the battery half length 19
- Post requisites 21
- Procedure 21
- Replacing the battery half length 21
- Prerequisites 22
- Procedure 22
- Removing the battery full length 22
- Post requisites 24
- Procedure 24
- Replacing the battery full length 24
- Prerequisites 25
- Procedure 25
- Removing the hard drive 25
- Post requisites 30
- Procedure 30
- Replacing the hard drive 30
- Prerequisites 31
- Procedure 31
- Removing the solid state drive half length 31
- Post requisites 34
- Procedure 34
- Replacing the solid state drive half length 34
- Prerequisites 35
- Procedure 35
- Removing the solid state drive full length 35
- Post requisites 38
- Procedure 38
- Replacing the solid state drive full length 38
- Prerequisites 39
- Procedure 39
- Removing the speakers 39
- Post requisites 41
- Procedure 41
- Replacing the speakers 41
- Prerequisites 42
- Procedure 42
- Removing the wireless card 42
- Procedure 44
- Replacing the wireless card 44
- Post requisites 45
- Prerequisites 46
- Procedure 46
- Removing the fans 46
- Post requisites 49
- Procedure 49
- Replacing the fans 49
- Prerequisites 50
- Procedure 50
- Removing the heat sink assembly 50
- Post requisites 52
- Procedure 52
- Replacing the heat sink assembly 52
- Prerequisites 53
- Procedure 53
- Removing the memory modules 53
- Procedure 55
- Replacing the memory modules 55
- Post requisites 56
- Prerequisites 58
- Removing the system board 58
- Procedure 59
- Post requisites 62
- Procedure 62
- Replacing the system board 62
- Prerequisites 64
- Procedure 64
- Removing the audio daughter board 64
- Post requisites 66
- Procedure 66
- Replacing the audio daughter board 66
- Prerequisites 67
- Procedure 67
- Removing the coin cell battery 67
- Post requisites 69
- Procedure 69
- Replacing the coin cell battery 69
- Prerequisites 70
- Procedure 70
- Removing the keyboard 70
- Post requisites 73
- Procedure 73
- Replacing the keyboard 73
- Prerequisites 74
- Procedure 74
- Removing the display assembly 74
- Post requisites 78
- Procedure 78
- Replacing the display assembly 78
- Prerequisites 79
- Procedure 79
- Removing the power adapter port 79
- Post requisites 81
- Procedure 81
- Replacing the power adapter port 81
- Prerequisites 82
- Removing the antenna cover 82
- Procedure 83
- Post requisites 85
- Procedure 85
- Replacing the antenna cover 85
- Prerequisites 86
- Removing the display hinges 86
- Procedure 87
- Post requisites 89
- Procedure 89
- Replacing the display hinges 89
- Prerequisites 90
- Procedure 90
- Removing the antenna module 90
- Post requisites 92
- Procedure 92
- Replacing the antenna module 92
- Prerequisites 93
- Procedure 93
- Removing the palm rest assembly 93
- Post requisites 95
- Procedure 95
- Replacing the palm rest assembly 95
- Bios overview 96
- Entering the bios setup program 96
- System setup options 96
- Timing key sequences 96
- Clearing cmos settings 103
- Boot menu 104
- Boot menu enhancements 104
- Flashing the bios 104
- Diagnostics 105
- Contacting dell 107
- Getting help and contacting dell 107
- Self help resources 107
