Dell XPS 15, 9560-8968 [83/108] Procedure
![Dell XPS 15, 9560-8968 [83/108] Procedure](/views2/1264490/page83/bg53.png)
Procedure
1 Carefully turn the display hinges at an angle.

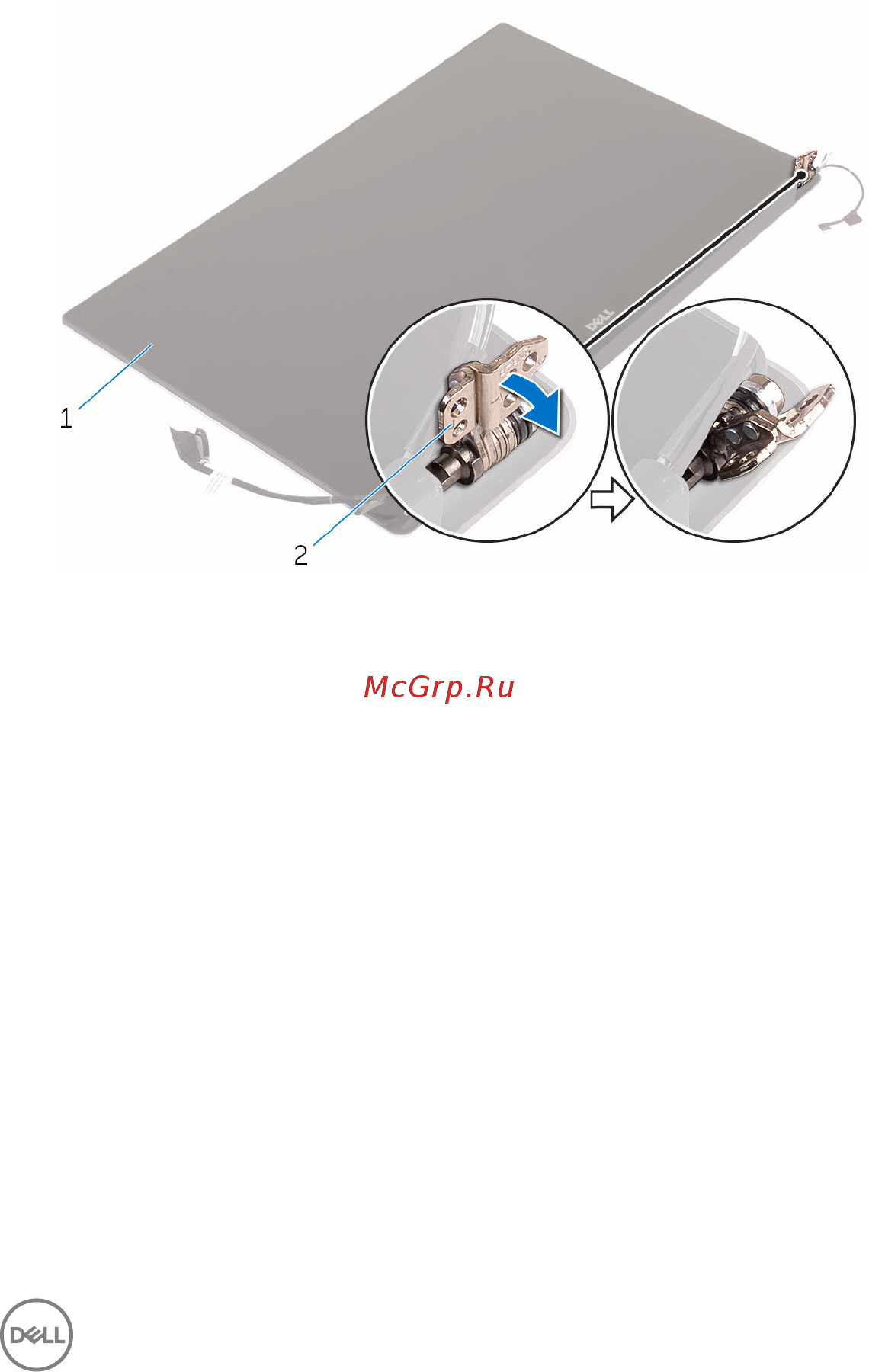

Figure 32. Turning the display hinge
1 display assembly 2 display hinges (2)
83
