3 Remove the 10 screws (M2x3 T5) that secure the base cover to the palm-rest
assembly.

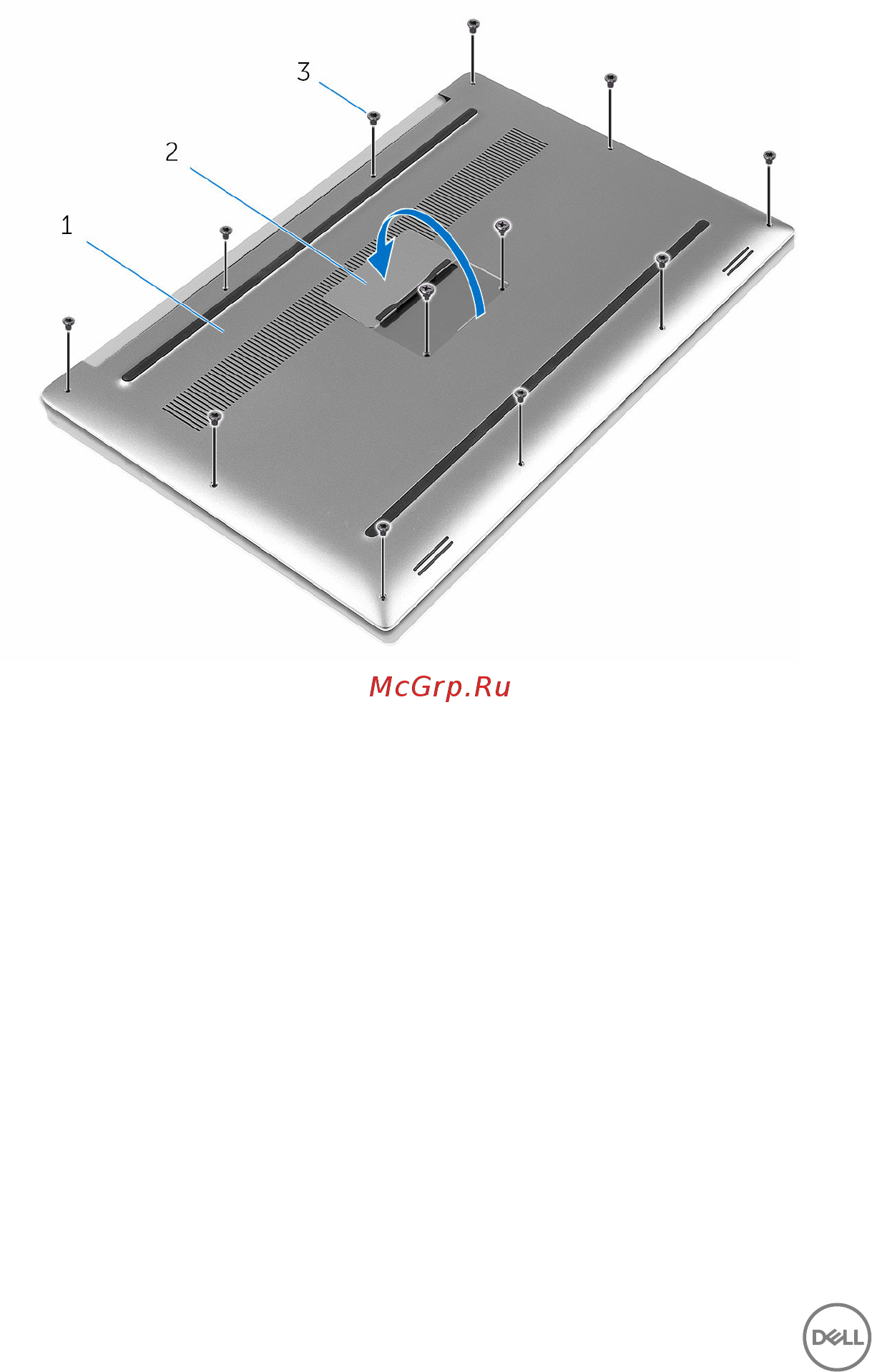

Figure 1. Removing the base cover
1
base cover 2 system badge
3 screws (12)
16
