3 Lift the battery off the palm-rest assembly.

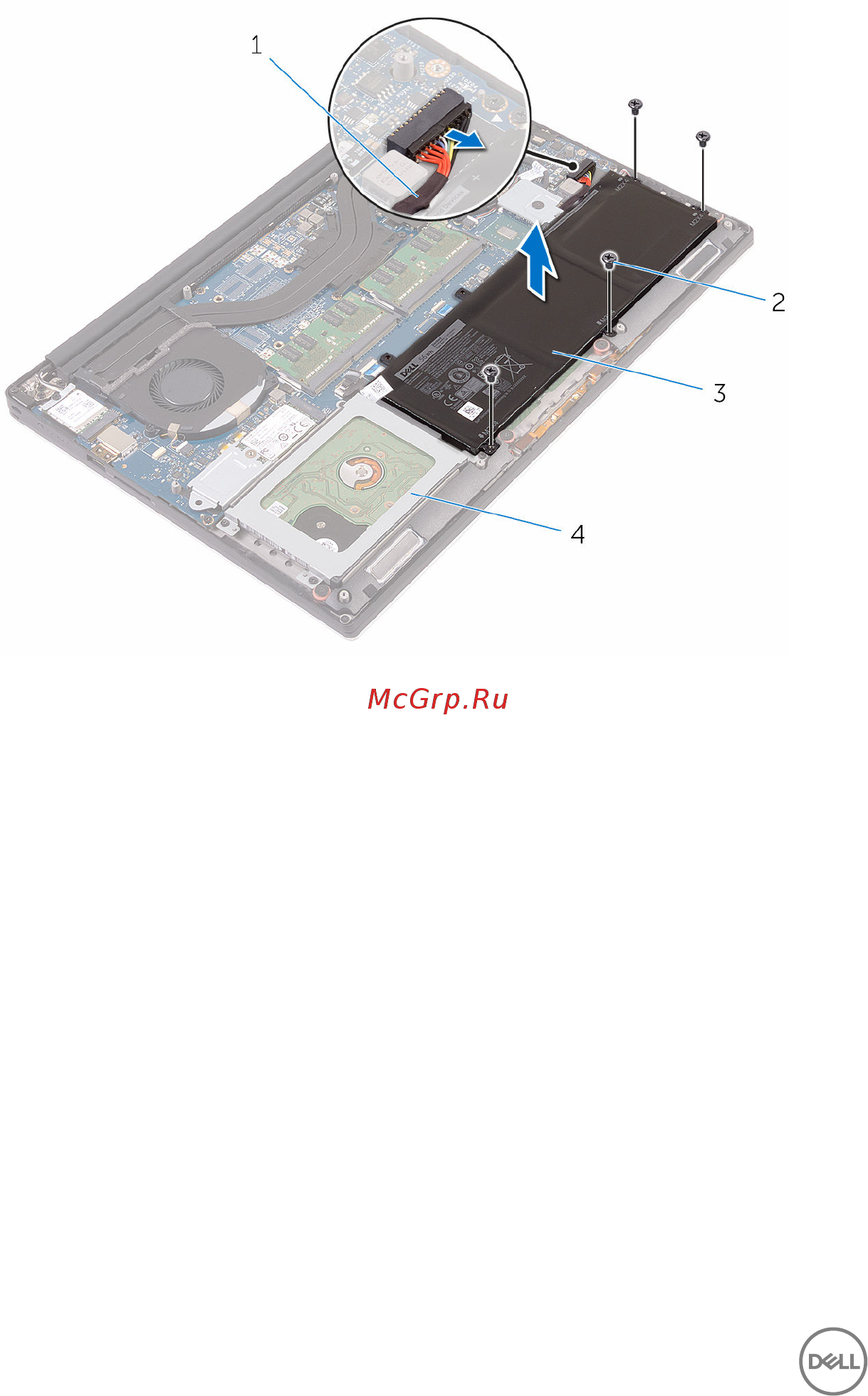

Figure 3. Removing the battery
1 battery cable 2 screws (4)
3 battery 4 palm-rest assembly
4 Turn the computer over, open the display, and press the power button for five
seconds to ground the system board.
20
