3 Lift the battery off the palm-rest assembly.

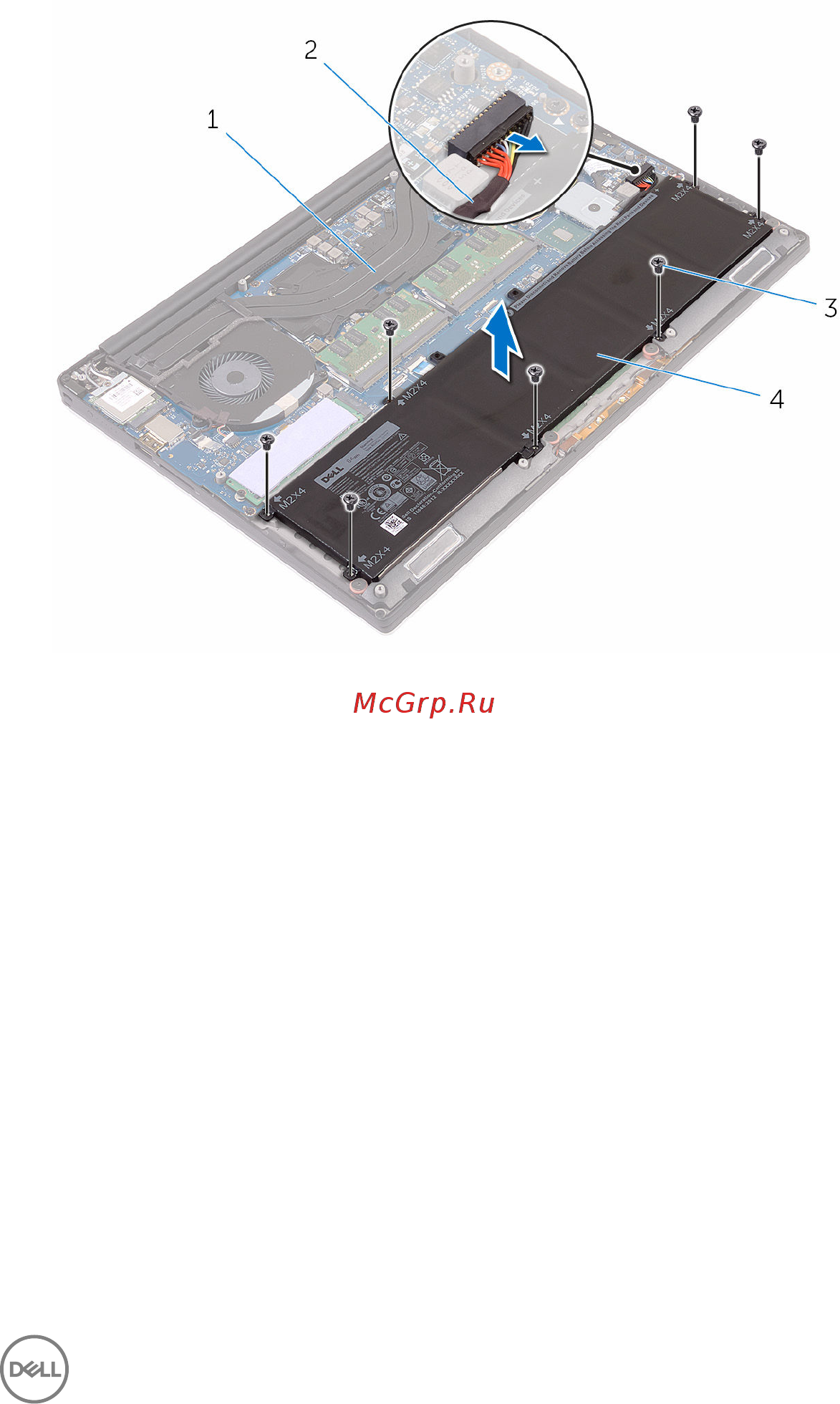

Figure 4. Removing the battery

1 palm-rest assembly 2 battery cable

3 screws (7) 4 battery

4 Turn the computer over, open the display, and press the power button for five

seconds to ground the system board.
