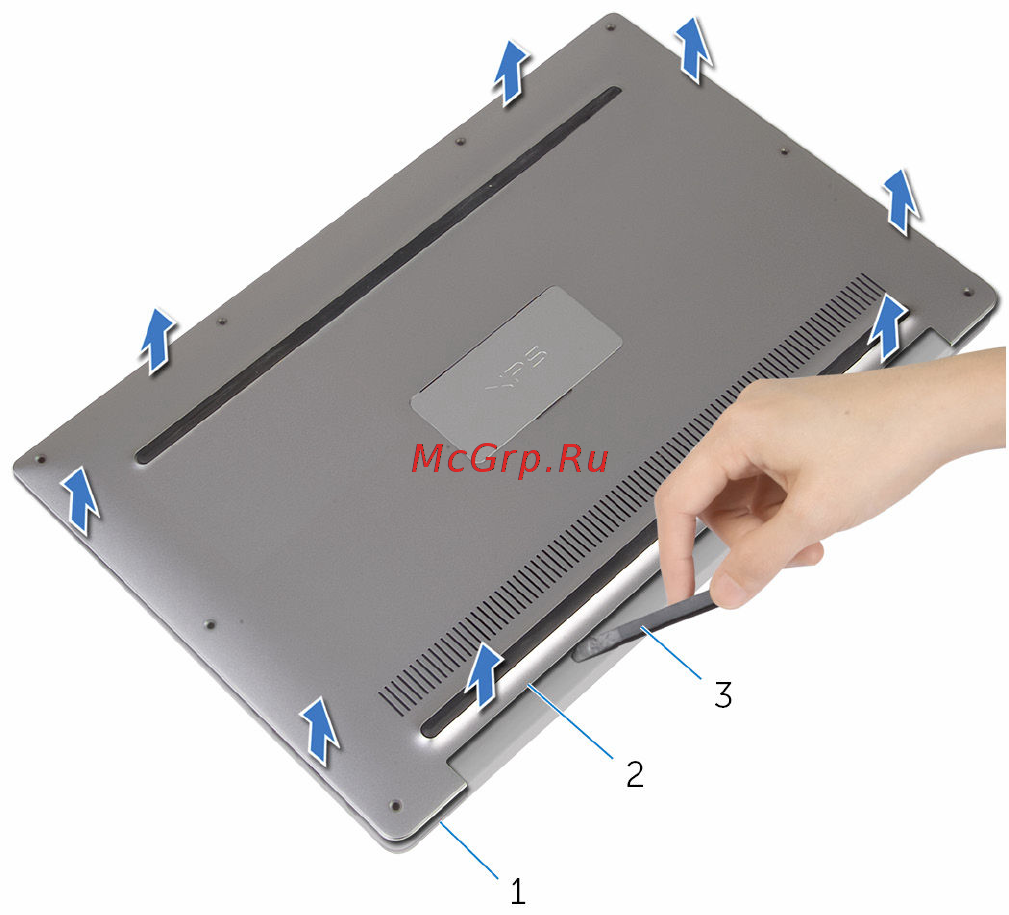

3 Starting from the back of the computer, pry up the base cover using a
plastic scribe.
4 Lift the base cover off the palm-rest assembly.
1 palm-rest assembly 2 base cover
3 plastic scribe
15
