Dell XPS 13, 9360-3621 [81/92] Procedure
![Dell XPS 13, 9360-3621 [81/92] Procedure](/views2/1264491/page81/bg51.png)
Procedure

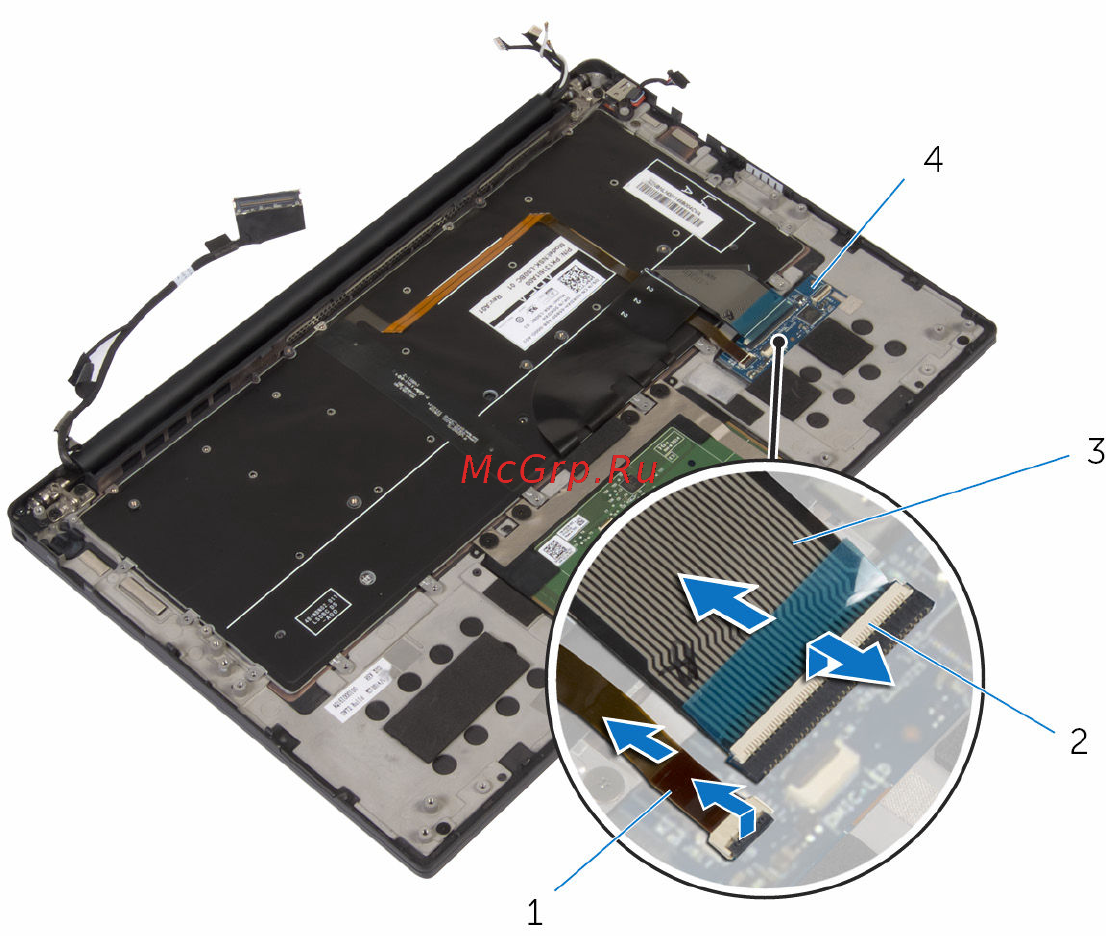

1 Open the latches and disconnect the keyboard cable and the keyboard-
backlight cable from the keyboard-controls board.
1 keyboard-backlight cable 2 latches (2)
3 keyboard cable 4 keyboard-controls board
2 Note the routing of the touch-pad cable, the I/O-board cable, and the
keyboard-controls board cable, and peel off the cables from the
keyboard.
81
