Removing the base cover
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Using your fingertips, open the system badge.
2 Remove the screws that secure the base cover to the palm-rest
assembly.

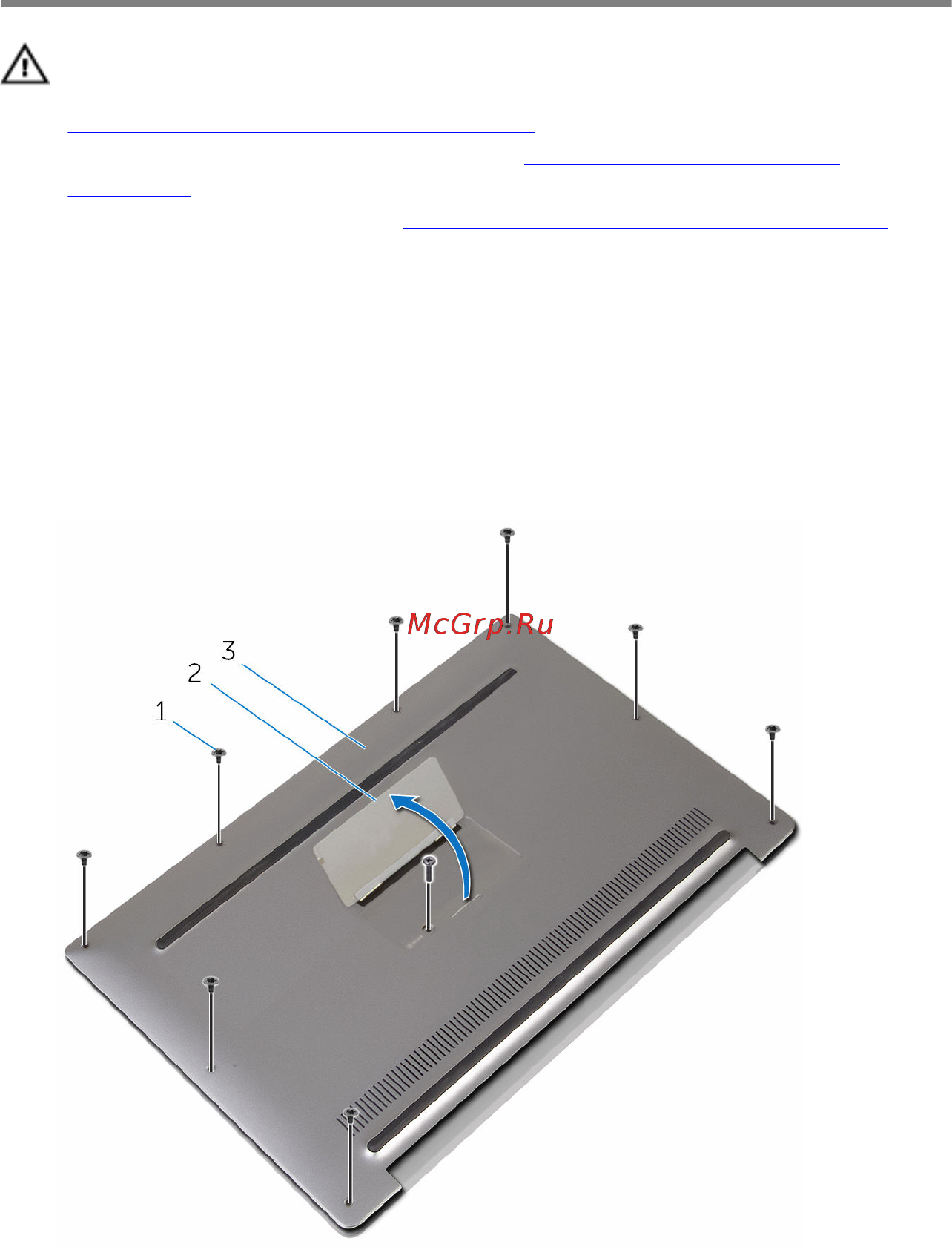

1 M2x3 screws (8) and M1.6x6
screw (1)
2 system badge
3 base cover
