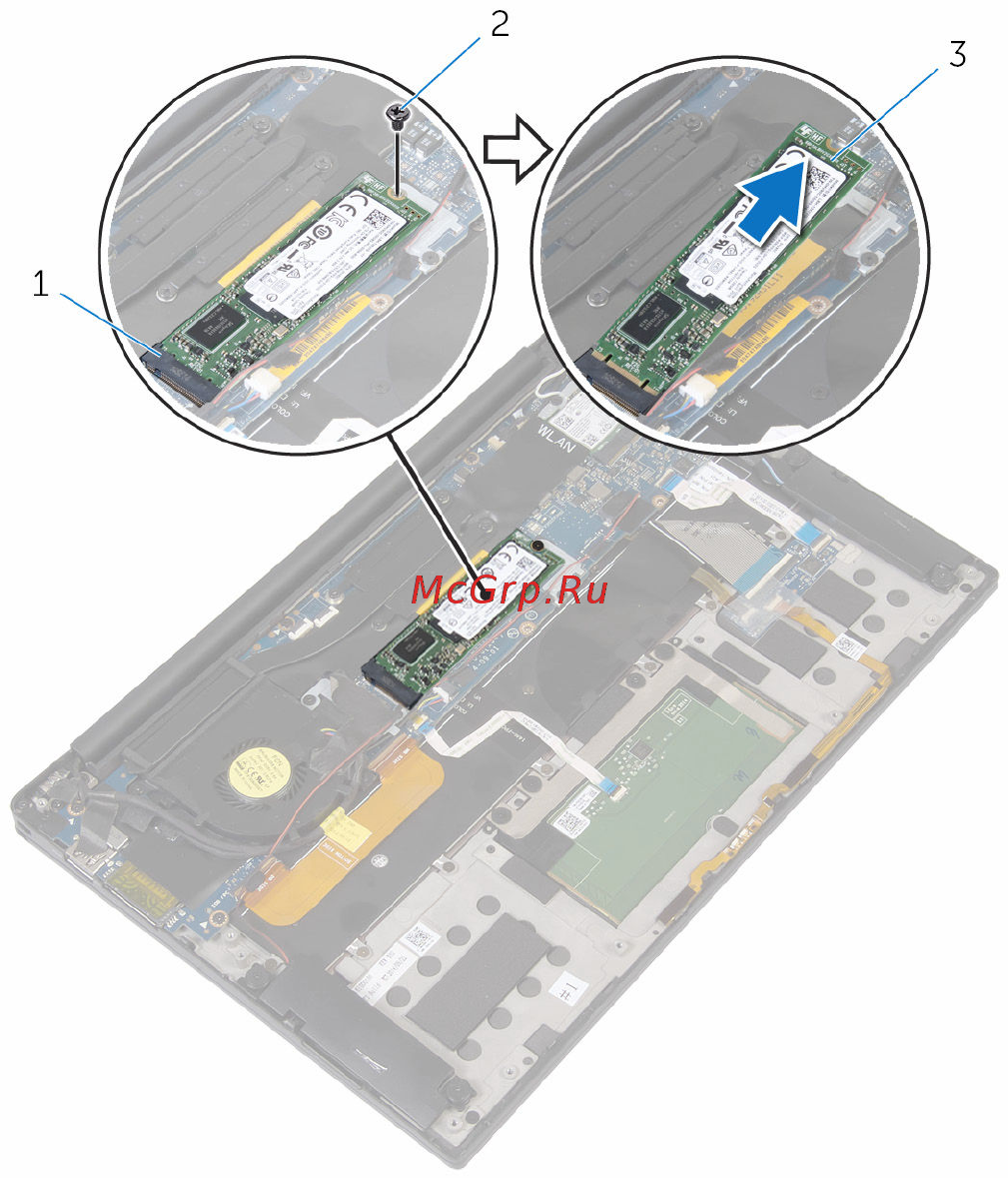

2 Slide and remove the solid-state drive from the solid-state drive slot.
1 solid-state drive slot 2 M2x2 screw (1)
3 solid-state drive
22
