Dell Vostro 3565, 3565-0490 [19/64] Removing the hard drive assembly
![Dell Vostro 3565, 3565-0490 [19/64] Removing the hard drive assembly](/views2/1264724/page19/bg13.png)
b. optical drive
c. battery
8. Follow the procedure in After working inside your computer.
Removing the hard drive assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover

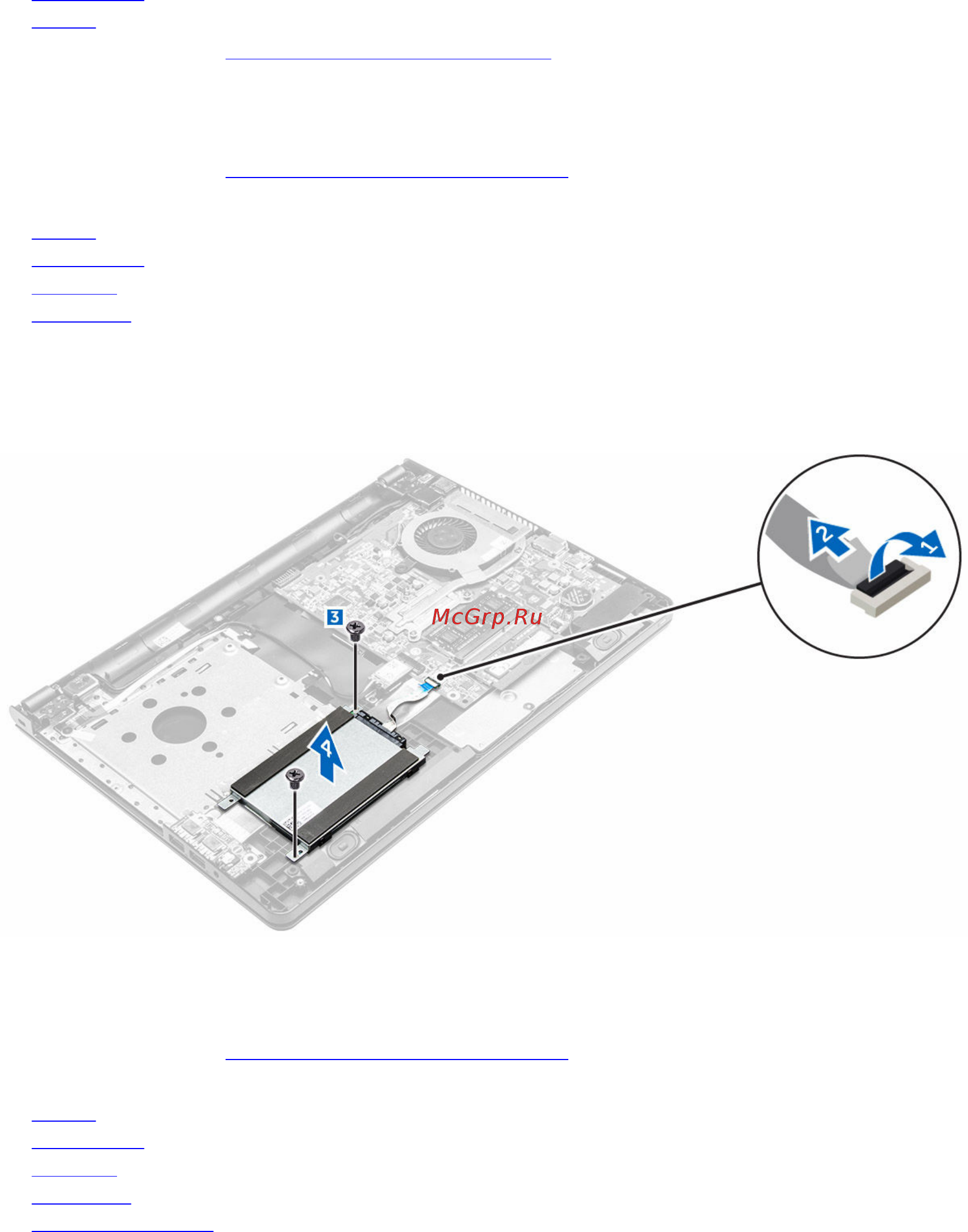

3. To remove the hard drive assembly:
a. Disconnect the hard drive cable from the connector on the system board [1, 2].
b. Remove the screws that secure the hard drive assembly to the computer [3].
c. Lift the hard drive assembly away from the computer [4].
Removing the hard drive from the hard drive bracket
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
e. hard drive assembly
3. To remove the hard drive from hard drive assembly:
a. Pull the hard drive cable connector to remove it from the hard drive [1].
b. Remove the screws that secure the hard drive bracket to the hard drive [2].
19
