3
Removing and installing components
This section provides detailed information on how to remove or install the components from your
computer.
Recommended tools
The procedures in this document require the following tools:
• Small flat blade screwdriver
• Phillips #0 screwdriver
• Phillips #1 screwdriver
• Small plastic scribe

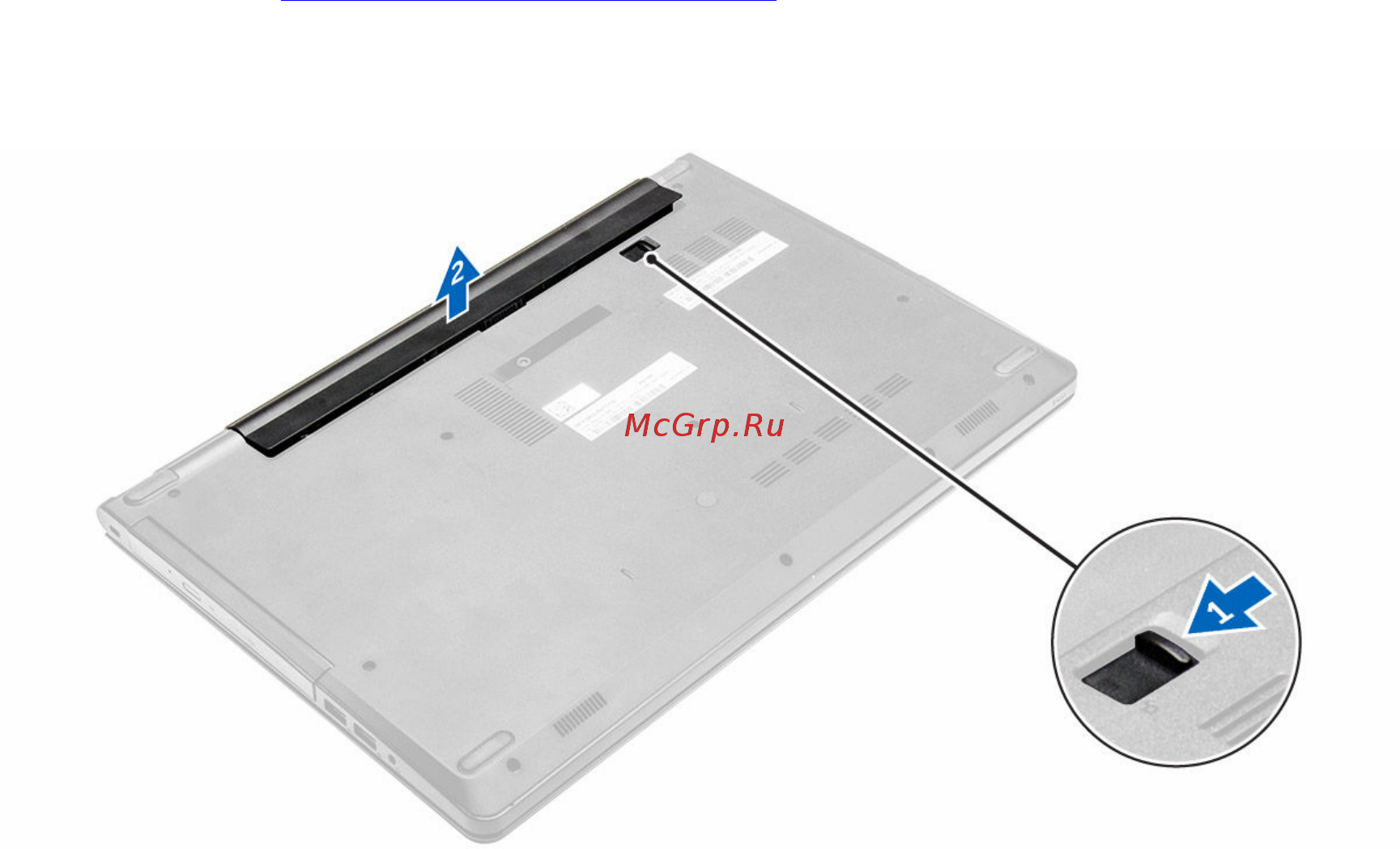

Removing the battery
1. Follow the procedure in Before working inside your computer.
2. To remove the battery:
a. Slide the release latch to unlock the battery [1].
b. Remove the battery from the computer [2].
13
