Dell Vostro 3565, 3565-0506 [33/64] Installing the display bezel
![Dell Vostro 3565, 3565-0490 [33/64] Installing the display bezel](/views2/1264724/page33/bg21.png)

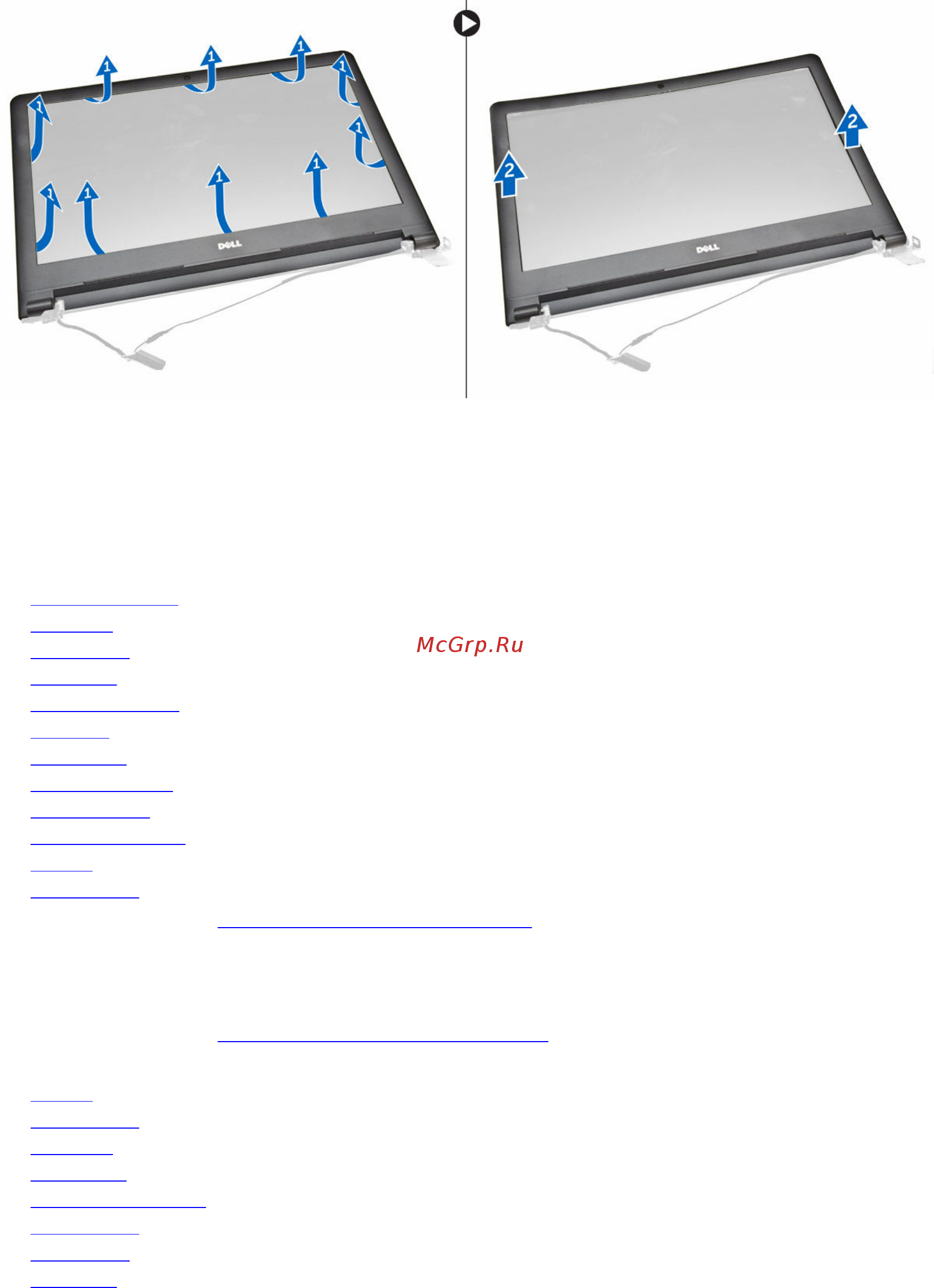

Installing the display bezel
1. Place the display bezel on the display assembly.
2. Press the display bezel until it clicks onto the display assembly.
3. Install the:
a. display assembly
b. keyboard
c. WLAN card
d. I/O board
e. memory module
f. heat sink
g. base cover
h. coin cell battery
i. system board
j. power connector
k. battery
l. optical drive
4. Follow the procedure in After working inside your computer.
Removing the camera
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
e. hard drive assembly
f. optical drive
g. WLAN card
h. I/O board
33
