Dell Vostro 3565, 3565-0506 [30/64] Installing the power connector
![Dell Vostro 3565, 3565-0490 [30/64] Installing the power connector](/views2/1264724/page30/bg1e.png)

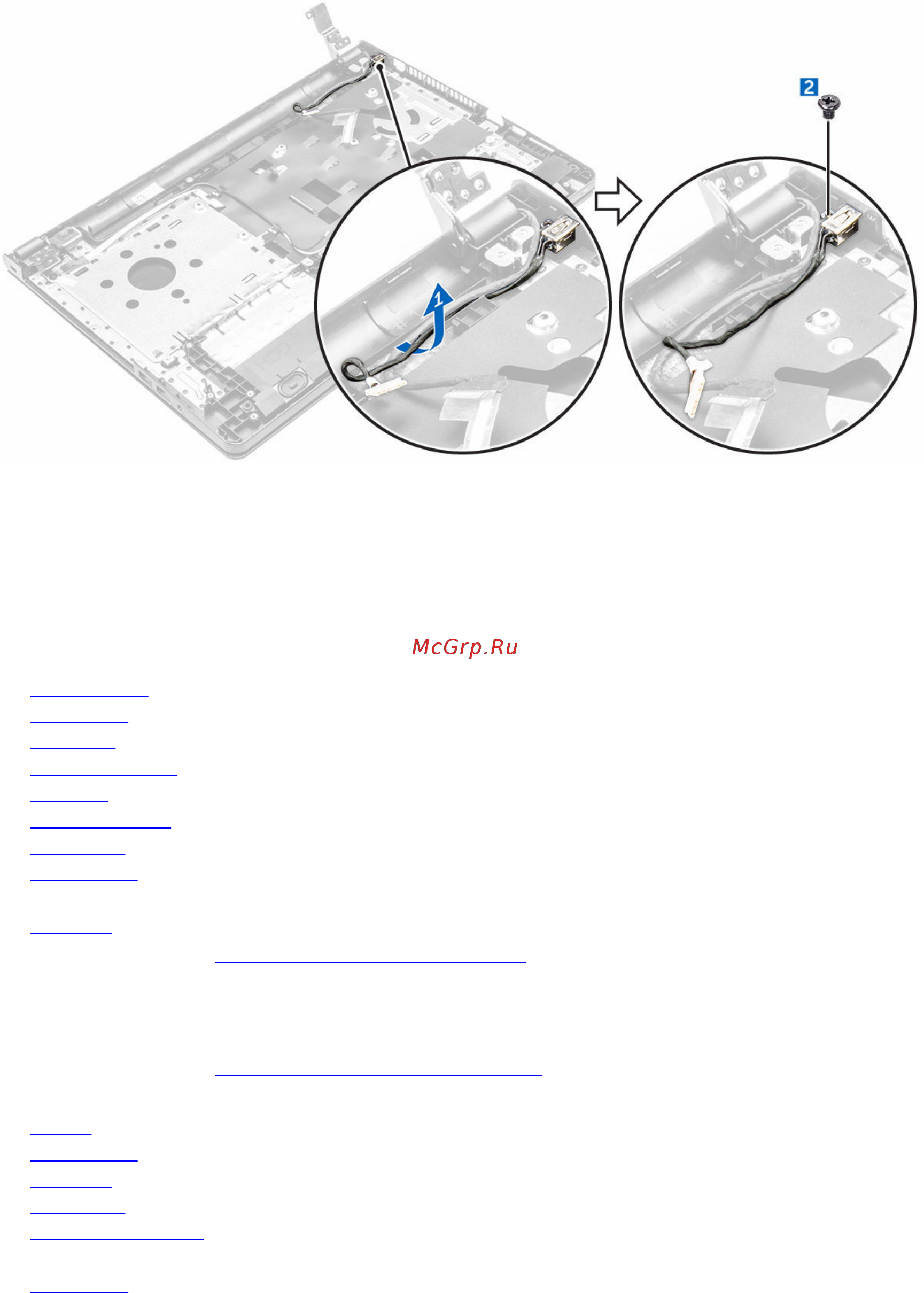

Installing the power connector
1. Insert the power connector into the slot on the computer.
2. Route the power connector cable through the routing channel.
3. Secure the power connector to the computer by using the screw.
4. Install the:
a. system board
b. WLAN card
c. I/O board
d. memory module
e. heat sink
f. coin cell battery
g. base cover
h. optical drive
i. battery
j. keyboard
5. Follow the procedure in After working inside your computer.
Removing the display assembly
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
e. hard drive assembly
f. optical drive
g. WLAN card
30
