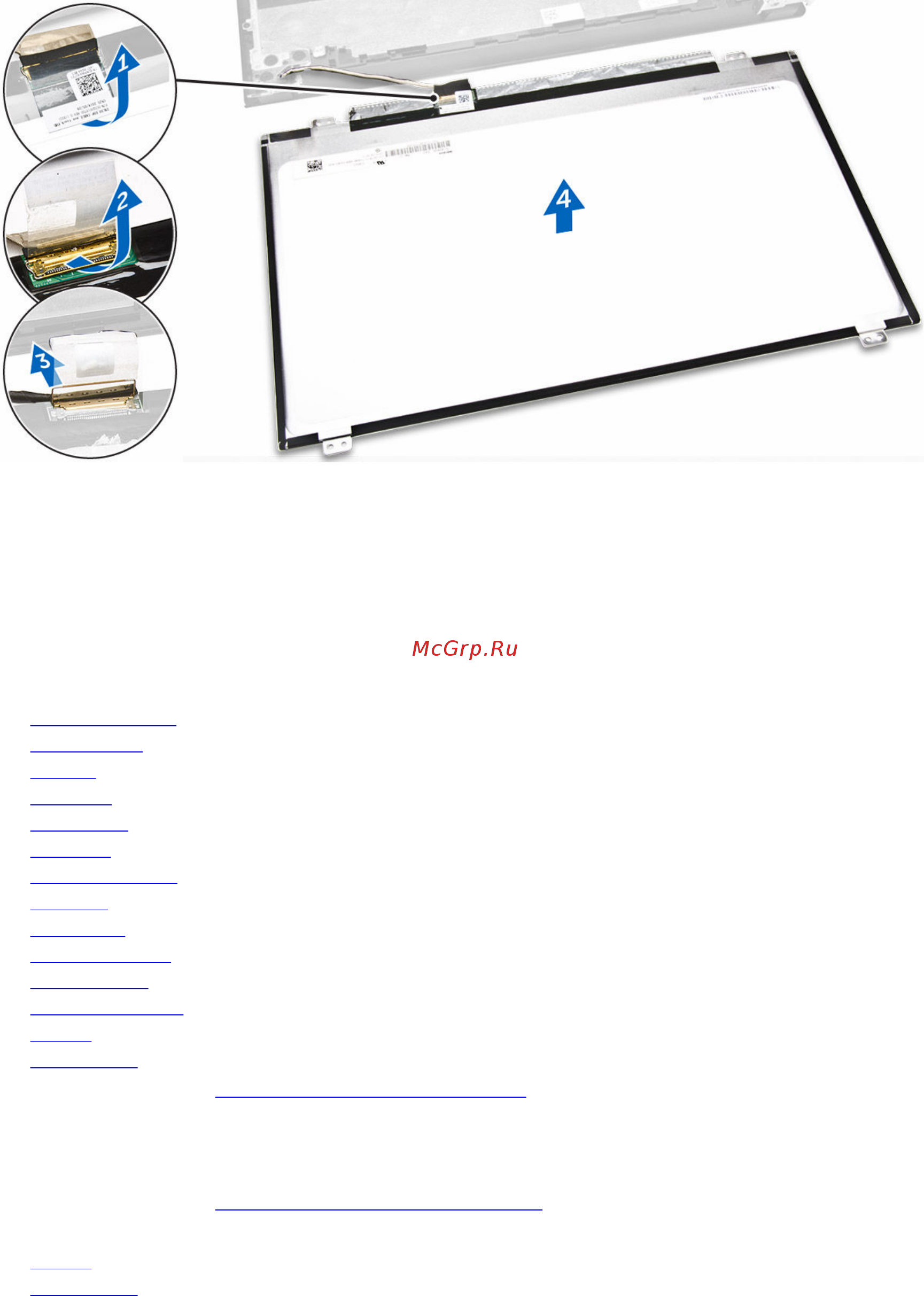

Installing the display panel
1. Connect the eDP cable to the display panel.
2. Affix the tape to secure the display cable.
3. Place the display panel on the display assembly.
4. Tighten the screws to secure the display panel to the display assembly.
5. Install the:
a. display assembly
b. display bezel
c. camera
d. keyboard
e. WLAN card
f. i/o board
g. memory module
h. heat sink
i. base cover
j. coin cell battery
k. system board
l. power connector
m. battery
n. optical drive
6. Follow the procedure in After working inside your computer.
Removing the display hinges
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
36
