Dell Vostro 3565, 3565-0506 [34/64] Installing the camera
![Dell Vostro 3565, 3565-0490 [34/64] Installing the camera](/views2/1264724/page34/bg22.png)
i. memory module
j. coin cell battery
k. heat sink
l. system board
m. power connector
n. display assembly
o. display bezel

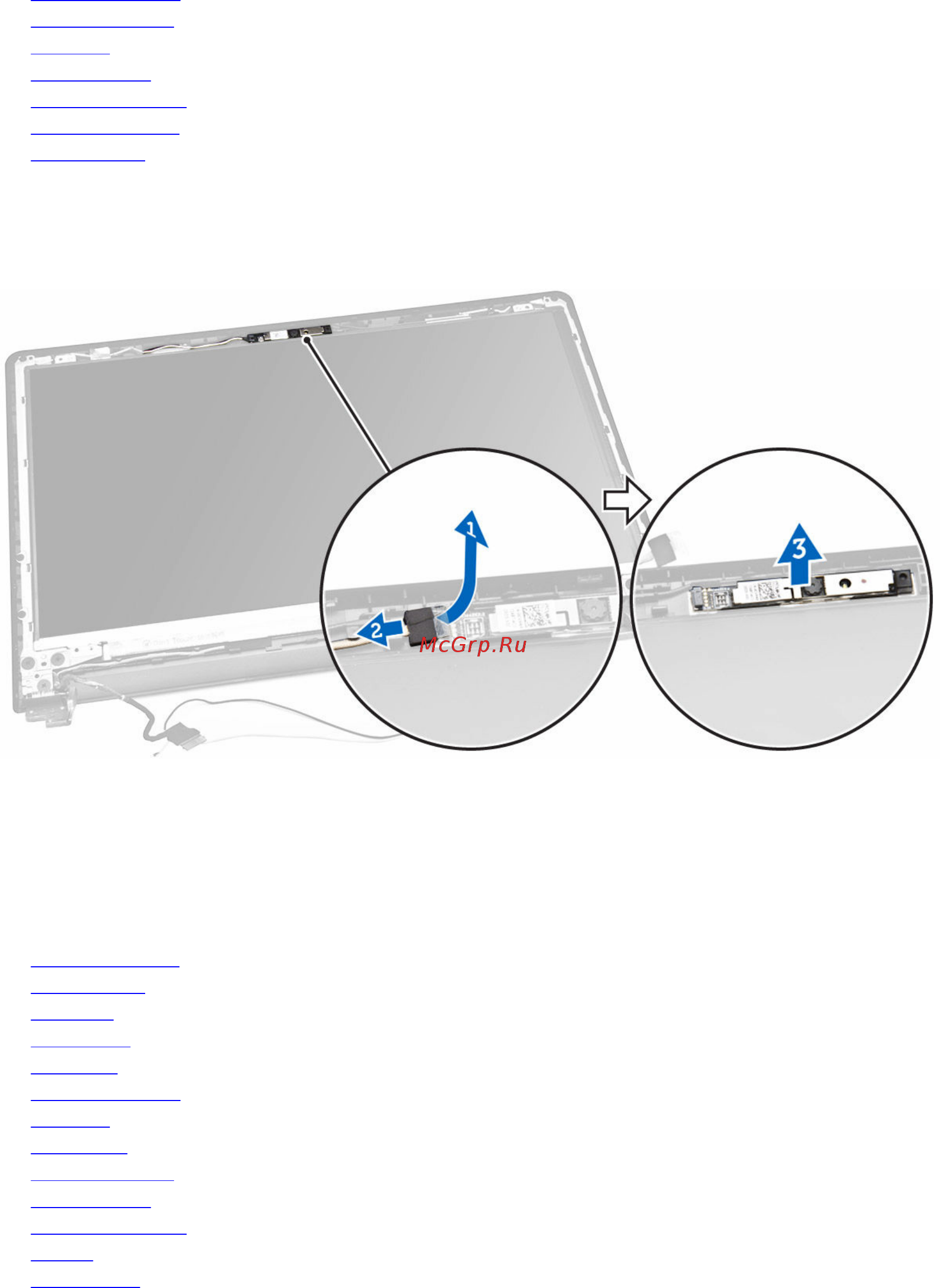

3. To remove the camera:
a. Remove the tape that secures the camera cable [1].
b. Disconnect the camera cable from the camera [2].
c. Remove the camera from the display assembly [3].
Installing the camera
1. Install the camera into the slot on the display assembly.
2. Connect the camera cable.
3. Install the:
a. display assembly
b. display bezel
c. keyboard
d. WLAN card
e. I/O board
f. memory module
g. heat sink
h. base cover
i. coin cell battery
j. system board
k. power connector
l. battery
m. optical drive
34
