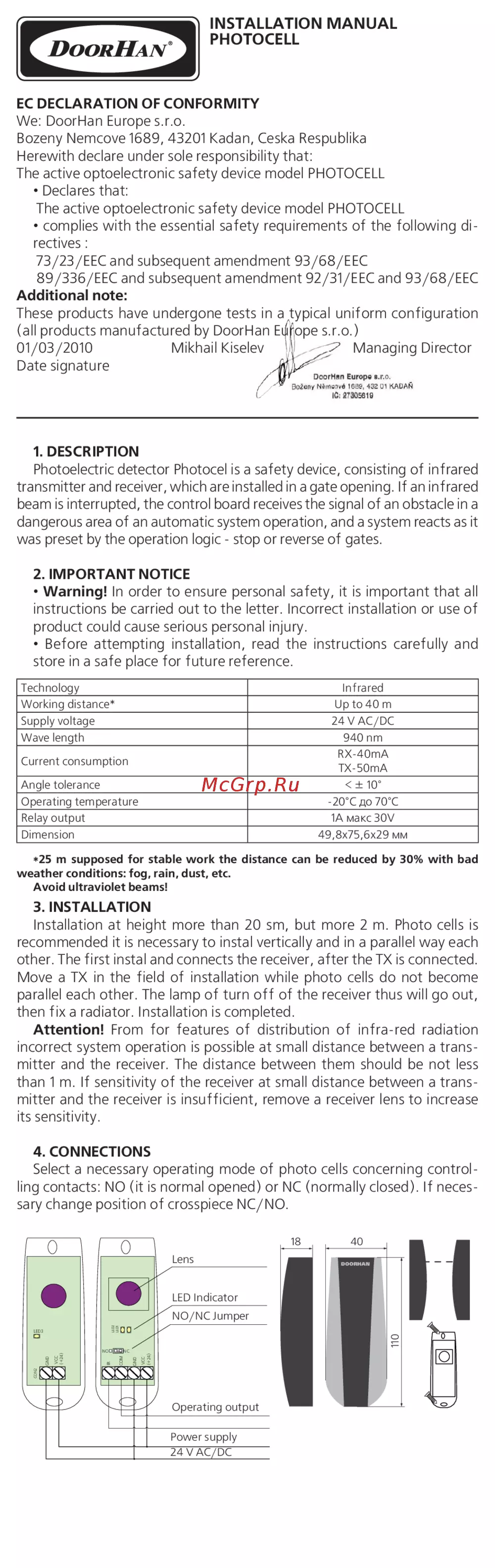

DoorHan PHOTOCELL-N дальность до 20м [2/2] Installation manual photocell

Photoelectric detector Photocel is a safety device, consisting of infrared
transmitter and receiver, which are installed in a gate opening. If an infrared
beam is interrupted, the control board receives the signal of an obstacle in a
dangerous area of an automatic system operation, and a system reacts as it
was preset by the operation logic - stop or reverse of gates.

•  In order to ensure personal safety, it is important that all
instructions be carried out to the letter. Incorrect installation or use of
product could cause serious personal injury.
• Before attempting installation, read the instructions carefully and
store in a safe place for future reference.

Installation at height more than 20 sm, but more 2 m. Photo cells is
recommended it is necessary to instal vertically and in a parallel way each
other. The first instal and connects the receiver, after the TX is connected.
Move a TX in the field of installation while photo cells do not become
parallel each other. The lamp of turn off of the receiver thus will go out,
then fix a radiator. Installation is completed.
 From for features of distribution of infra-red radiation
incorrect system operation is possible at small distance between a trans-
mitter and the receiver. The distance between them should be not less
than 1 m. If sensitivity of the receiver at small distance between a trans-
mitter and the receiver is insufficient, remove a receiver lens to increase
its sensitivity.

Select a necessary operating mode of photo cells concerning control-
ling contacts: NO (it is normal opened) or NC (normally closed). If neces-
sary change position of crosspiece NC/NO.
            


Technology Infrared
Working distance* Up to 40 m
Supply voltage 24 V AC/DC
Wave length 940 nm
Current consumption
RX-40mA
TX-50mA
Angle tolerance < ± 10°
Operating temperature -20°С до 70°С
Relay output 1А макс 30V
Dimension 49,8х75,6х29 мм

We: DoorHan Europe s.r.o.
Bozeny Nemcove 1689, 43201 Kadan, Ceska Respublika
Herewith declare under sole responsibility that:
The active optoelectronic safety device model PHOTOCELL
• Declares that:
The active optoelectronic safety device model PHOTOCELL
• complies with the essential safety requirements of the following di-
rectives :
73/23/EEC and subsequent amendment 93/68/EEC
89/336/EEC and subsequent amendment 92/31/EEC and 93/68/EEC

These products have undergone tests in a typical uniform configuration
(all products manufactured by DoorHan Europe s.r.o.)
01/03/2010 Mikhail Kiselev Managing Director
Date signature


18 40
110
LED3
GND
VCC
(+24)
CON2
LED2
GND
VCC
(+24)
CON1
LED1
IR
COM
NO NC
Управляющие
контакты
Питание 24 В AC/DC
NO/NC перемычка
LED Индикатор
Линза
Operating output
Power supply
24 V AC/DC
NO/NC Jumper
LED Indicator
Lens
DOORHAN
18 40
110
LED3
GND
VCC
(+24)
CON2
LED2
GND
VCC
(+24)
CON1
LED1
IR
COM
NO NC
DOORHAN
18 40
110
LED3
GND
VCC
(+24)
CON2
LED2
GND
VCC
(+24)
CON1
LED1
IR
COM
NO NC
Управляющие
контакты
Питание 24 В AC/DC
NO/NC перемычка
LED Индикатор
Линза
Operating output
Power supply
24 V AC/DC
NO/NC Jumper
LED Indicator
Lens
DOORHAN
18 40
110
LED3
GND
VCC
(+24)
CON2
LED2
GND
VCC
(+24)
CON1
LED1
IR
COM
NO NC
DOORHAN
