Part 1 – Introduction
12

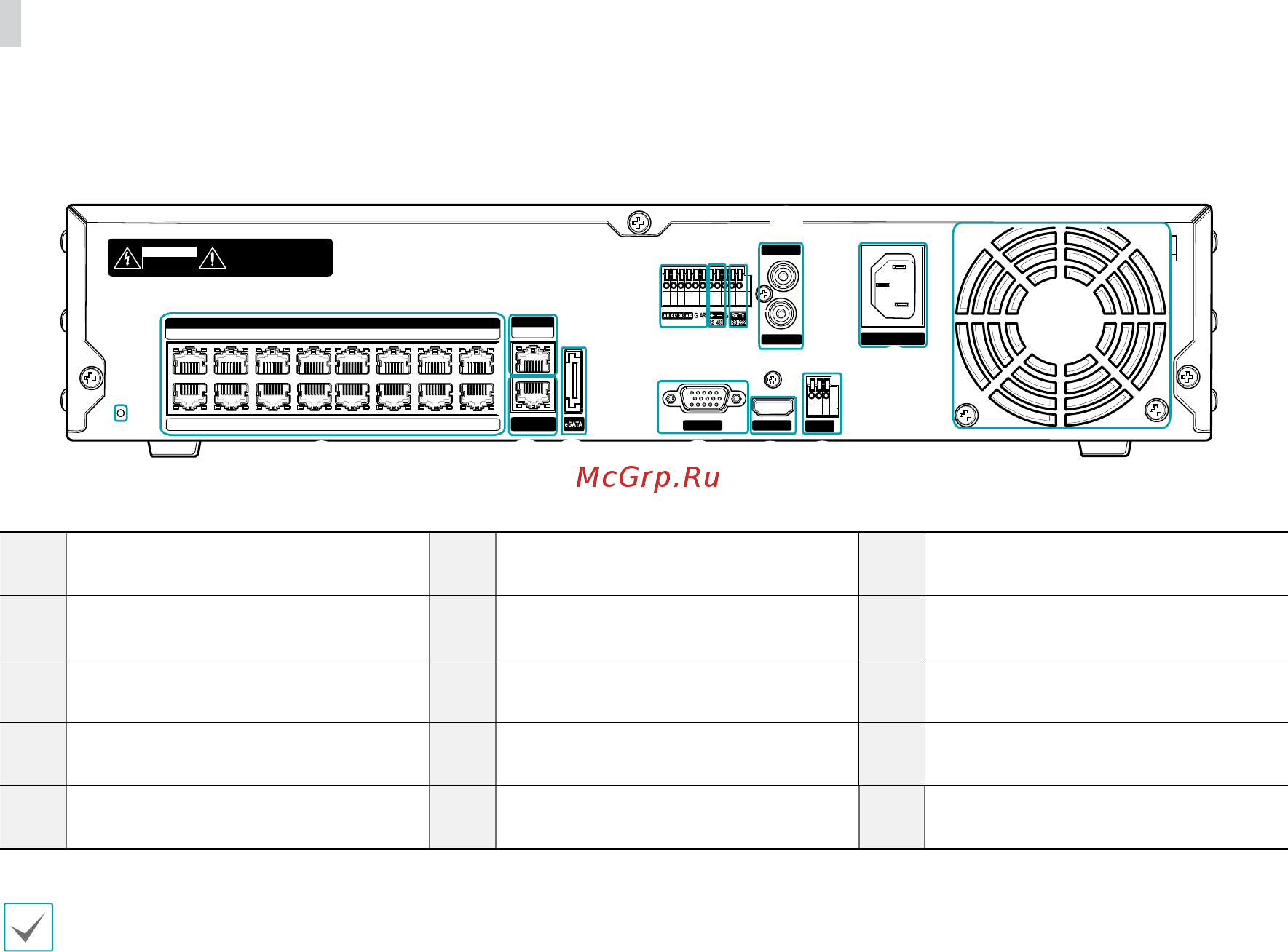

Rear Panel
<DR-3116PS>
AUDIO IN
AUDIO OUT
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
100-240V~
VGA OUT
HDMI
NETWORK
CLIENT
VIDEO IN / PoE
1 3 5 7
VIDEO IN
Ext.
NC C NO
1
2
4
5
6
3
7
8
0
9
!
@
#
2 4 6 8
10 12 14
16
9 11 13
15
$
1
Factory Reset Button
2
Video In / PoE Ports
3
Video In / Ext. Port
4
Network Port
5
eSATA Port
6
VGA Out Port
7
HDMI Out Port
8
Alarm Connection Out
9
Alarm Connection In
0
RS-485 Port
!
RS-232 Port
@
Audio Ports
#
Power In Port
$
Vent
DR-3108P and DR-3104P are dierent from the port number in Video In / PoE Ports.
