Using the Printer
21
2

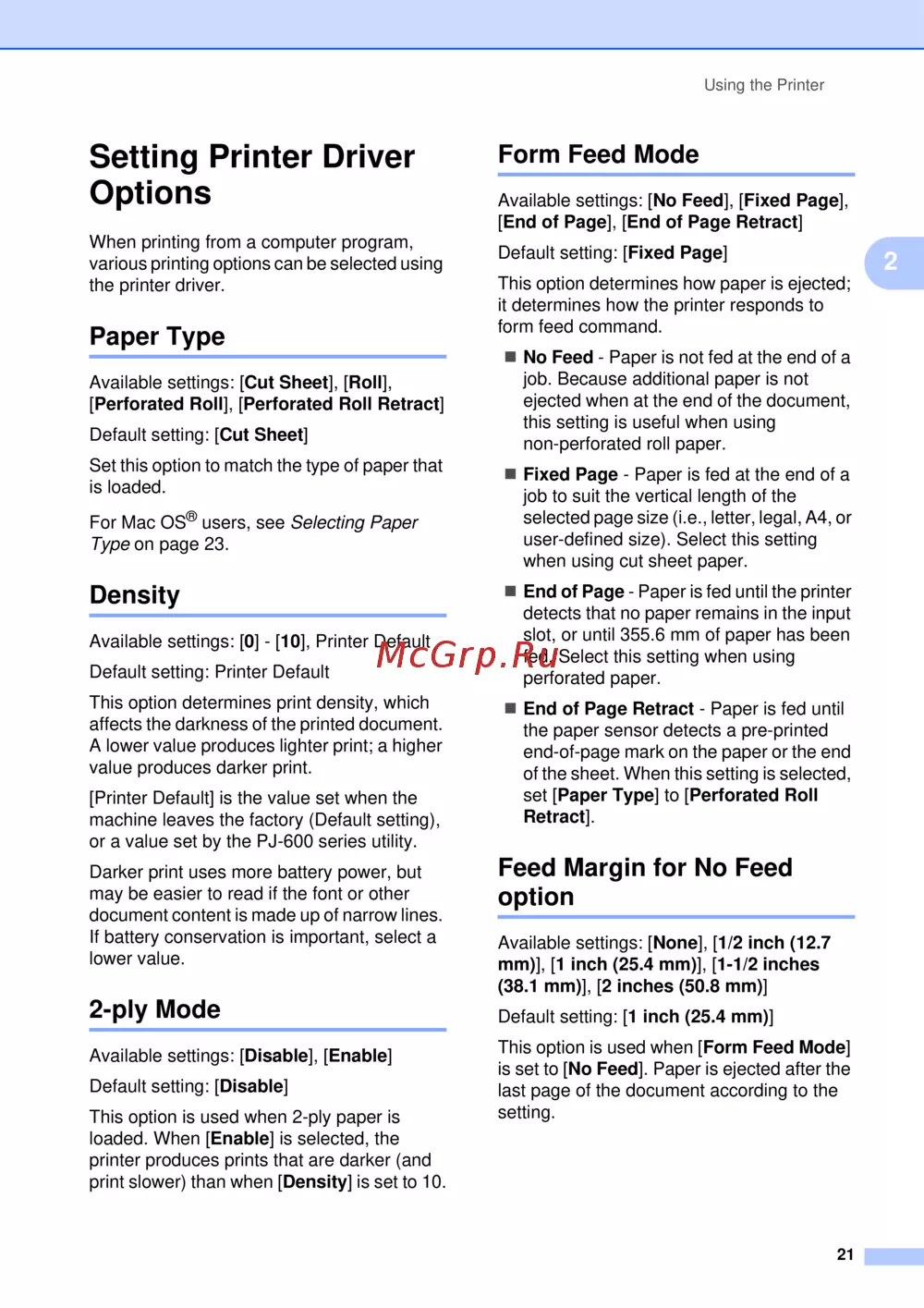

Setting Printer Driver
Options
2
When printing from a computer program,
various printing options can be selected using
the printer driver.
Paper Type 2
Available settings: [Cut Sheet], [Roll],
[Perforated Roll], [Perforated Roll Retract]
Default setting: [Cut Sheet]
Set this option to match the type of paper that
is loaded.
For Mac OS
®
users, see Selecting Paper
Type on page 23.
Density 2
Available settings: [0]-[10], Printer Default
Default setting: Printer Default
This option determines print density, which
affects the darkness of the printed document.
A lower value produces lighter print; a higher
value produces darker print.
[Printer Default] is the value set when the
machine leaves the factory (Default setting),
or a value set by the PJ-600 series utility.
Darker print uses more battery power, but
may be easier to read if the font or other
document content is made up of narrow lines.
If battery conservation is important, select a
lower value.
2-ply Mode 2
Available settings: [Disable], [Enable]
Default setting: [Disable]
This option is used when 2-ply paper is
loaded. When [Enable] is selected, the
printer produces prints that are darker (and
print slower) than when [Density] is set to 10.
Form Feed Mode 2
Available settings: [No Feed], [Fixed Page],
[End of Page], [End of Page Retract]
Default setting: [Fixed Page]
This option determines how paper is ejected;
it determines how the printer responds to
form feed command.
No Feed - Paper is not fed at the end of a
job. Because additional paper is not
ejected when at the end of the document,
this setting is useful when using
non-perforated roll paper.
Fixed Page - Paper is fed at the end of a
job to suit the vertical length of the
selected page size (i.e., letter, legal, A4, or
user-defined size). Select this setting
when using cut sheet paper.
End of Page - Paper is fed until the printer
detects that no paper remains in the input
slot, or until 355.6 mm of paper has been
fed. Select this setting when using
perforated paper.
End of Page Retract - Paper is fed until
the paper sensor detects a pre-printed
end-of-page mark on the paper or the end
of the sheet. When this setting is selected,
set [Paper Type] to [Perforated Roll
Retract].
Feed Margin for No Feed
option 2
Available settings: [None], [1/2 inch (12.7
mm)], [1 inch (25.4 mm)], [1-1/2 inches
(38.1 mm)], [2 inches (50.8 mm)]
Default setting: [1 inch (25.4 mm)]
This option is used when [Form Feed Mode]
is set to [No Feed]. Paper is ejected after the
last page of the document according to the
setting.
